Motorola EP350 Basic Service Manual

Maintenance – EP350 (Full Keypad Model): Disassembling and Reassembling the Radio 6-11
6.5.1.3 Front Circuit Board, Display Module and Keypad Disassembly
1. Push the latches on the Front Circuit Board (39) to release the Liquid Crystal Display (LCD)
flexible cable from the connector.
2. Remove the five screws holding the Front Circuit Board to the front housing with a Phillips
screwdriver.

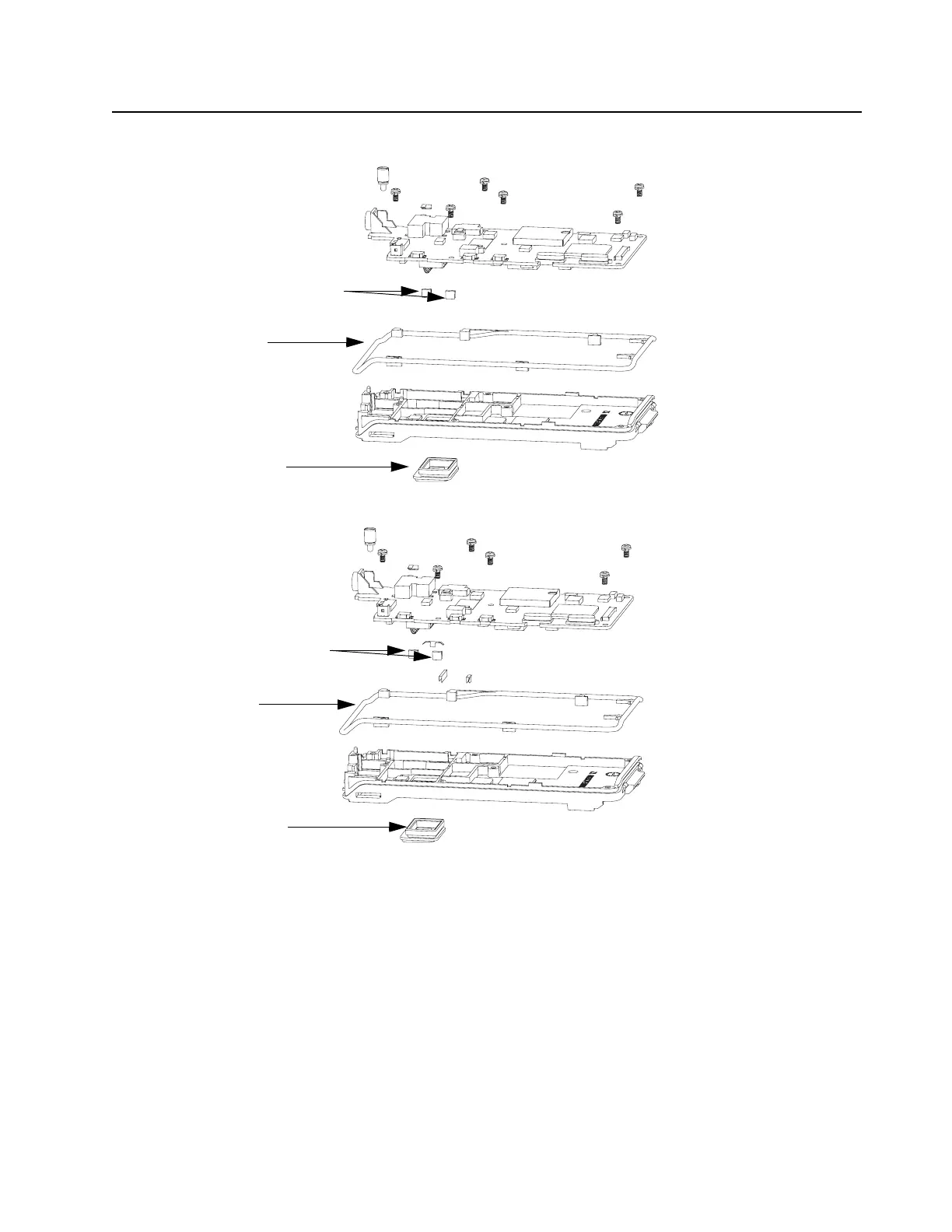

Figure 6-24. Main Circuit Board, finger strips, O-ring and Battery Contact Seal Removal(UHF2)
Figure 6-25. Main Circuit Board, finger strips, O-ring and Battery Contact Seal Removal(UHF1)
O-Ring
Battery Contact Seal
Finger Strip
O-Ring
Battery Contact Seal
Finger Strip

Motorola EP350 Specifications

General

Channel Capacity	16 channels
IP Rating	IP54
Drop Resistance	1.2 meters
Frequency Range	VHF: 136-174 MHz, UHF: 403-470 MHz
Battery Life	Up to 11 hours
Power Supply	7.5 V (Nominal)
Waterproof	Splashproof
Dimensions	127.6 x 62 x 42 mm (with standard battery)
