7-6 Maintenance – EP350 (Limited Keypad Model): Disassembling and Reassembling the Radio
7.5 Disassembling and Reassembling the Radio – General
When disassembling and reassembling the radio, it is important to pay particular attention to the snaps and
tabs, and how parts align with each other.
The following tools are required for disassembling and reassembling the radio (see Chapter 3 for a list
of service aids):
• Phillips Screwdriver
• Flat Head Screwdriver
• Torque Driver
• Crab Eye Nut Opener (PMDN4039_R)
• Chassis and Knob Opener (PMDN4038_R)
• Tweezers
If a unit requires further testing or service than is customarily performed at the basic level, please
send the unit to a Motorola Authorized Service Center listed in Appendix B.
Note:
Numbers in parentheses ( ) refer to item numbers in Table 7-17 on page 7-19.

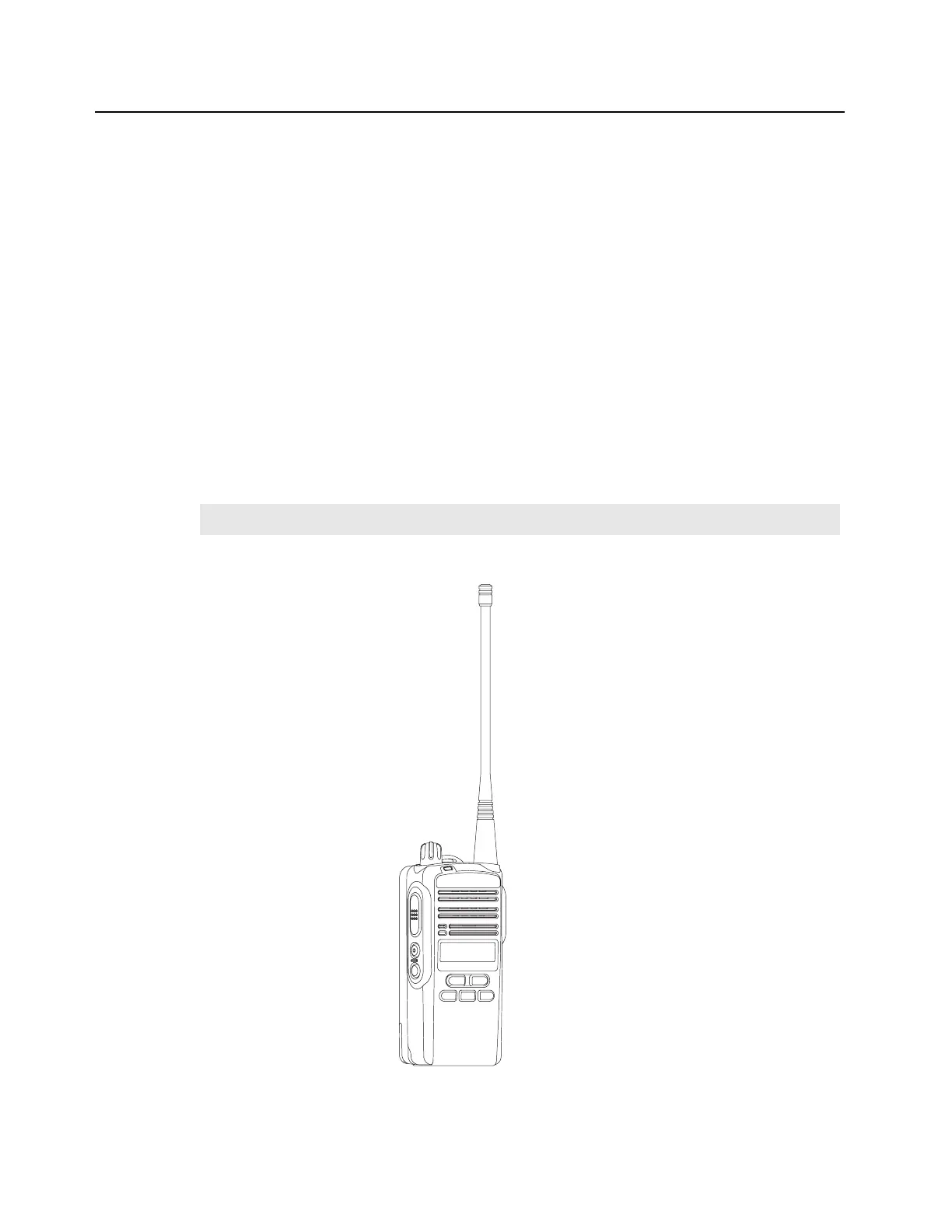

Figure 7-37. Limited Keypad Without Channel Knob Model
