Maintenance – EP350 (Full Keypad Model): Disassembling and Reassembling the Radio 6-7
6.5.1 Radio Disassembly – Detailed
6.5.1.1 Front Housing From Chassis Disassembly
1. Turn off the radio.
2. Remove the Battery (29):
a. Release the battery latch by moving it into the unlock position.
b. Slide the Battery downwards.
c. Remove the Battery from the radio.
3. Remove the Antenna (21) by turning it counterclockwise.
4. Remove the Volume Knob (7) from its shaft using the Chassis and Knob Opener.
(Refer Figure 6-18).

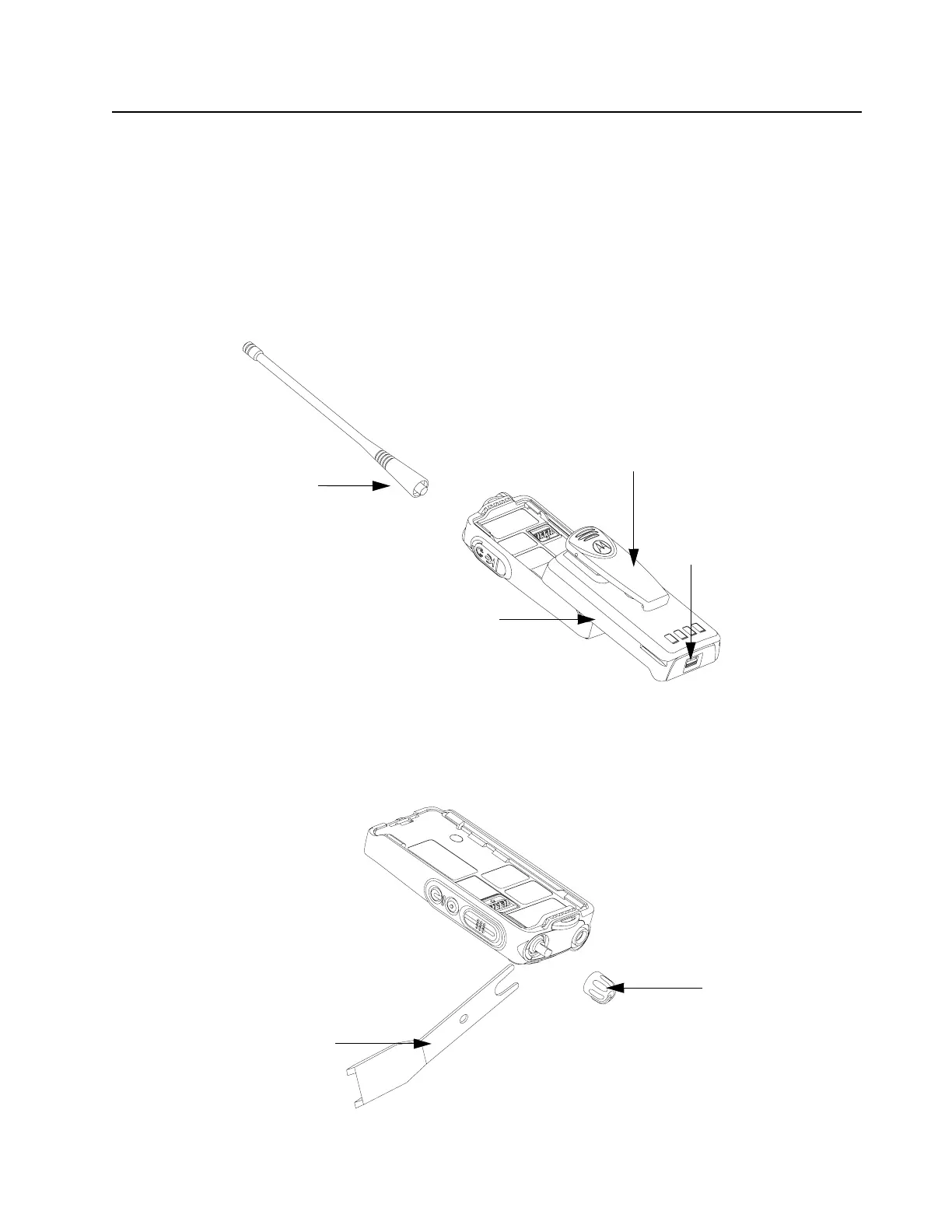

Figure 6-17. Battery and Antenna Removal
Figure 6-18. Knob Removal
Antenna
Belt Clip
Battery
Battery Latch
Volume Knob
Chassis and Knob Opener
To Next Page
