Motorola EP350 Basic Service Manual

Test Equipment, Service Aids, and Service Tools: Service Aids 3-3
Programming/Test Cable

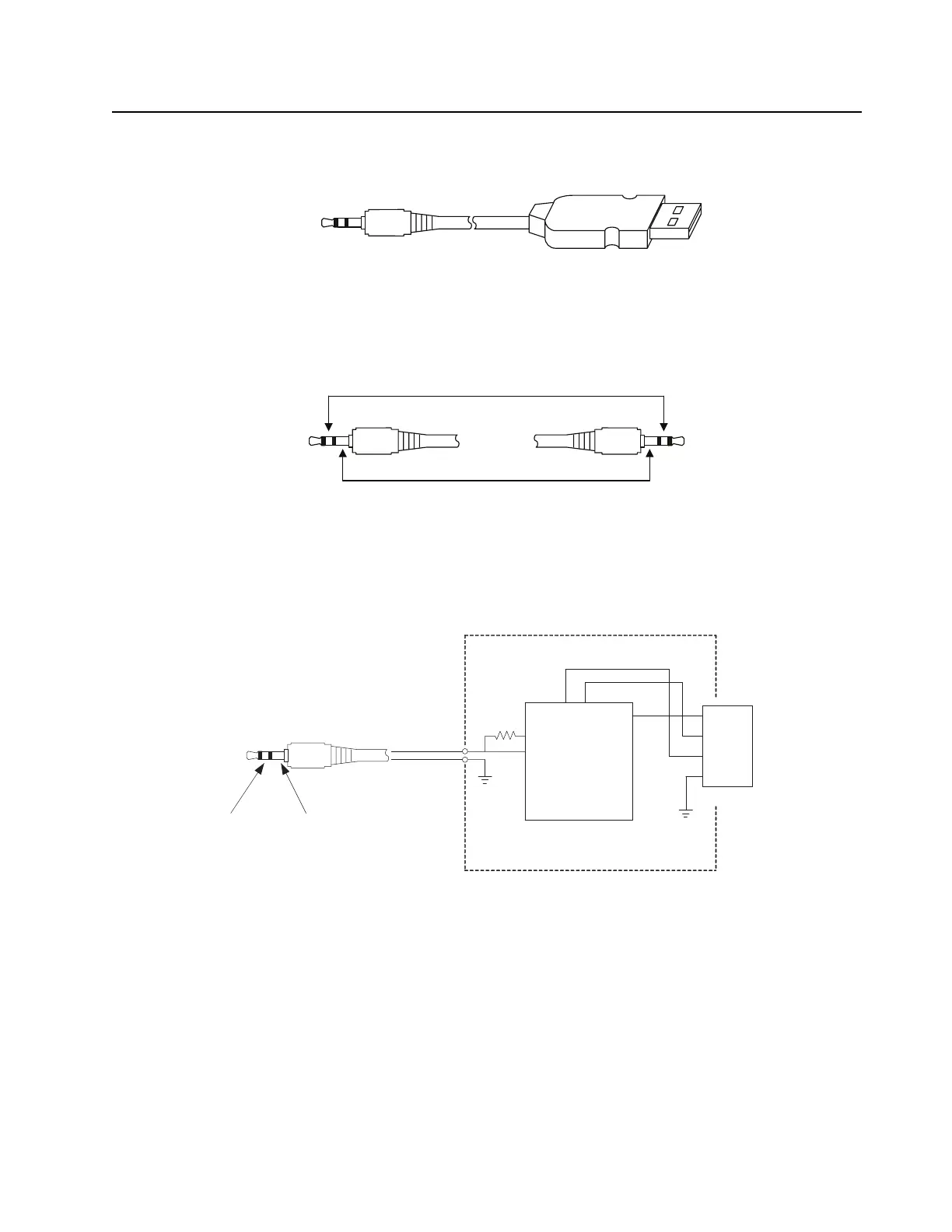

Figure 3-1. Programming/Test Cable (PMDN4077_R)
Figure 3-2. Cloning Cable (PMDN4076_R)
Figure 3-3. Wiring of the Connectors
2.5mm stereo
USB connection type
~
2.5mm stereo
2.5mm stereo
2.5mm stereo >
12
TX_D
RX_D
4, 5, 6
GND
VBUS
D-
D+
D-D+
VBUS
1
2
3
USB_CONNECTOR
2
1
GND
IC : CP2102
To Computor
RX / TX data GND

Motorola EP350 Specifications

General

Channel Capacity	16 channels
IP Rating	IP54
Drop Resistance	1.2 meters
Frequency Range	VHF: 136-174 MHz, UHF: 403-470 MHz
Battery Life	Up to 11 hours
Power Supply	7.5 V (Nominal)
Waterproof	Splashproof
Dimensions	127.6 x 62 x 42 mm (with standard battery)
