Motorola EP350 Basic Service Manual

6-14 Maintenance – EP350 (Full Keypad Model): Disassembling and Reassembling the Radio
6.5.2.2 Front Circuit Board, Display Module and Keypad Reassembly
1. Place and align the LCD (36) onto the front housing.
2. Place and align the Keypad (41) onto the keypad slot. Apply force around the keypad and ensure
the keypad sealing rib is perfectly seated onto the keypad slot. (Refer Figure 6-30).
3. Place the Front Circuit Board (39) straight down on top of the LCD and keypad. Align the front
circuit board to the four housing ribs. Press the top right edge of the front circuit board to ensure
the microphone sealing rubber is fully seated in place.
4. Tighten the five screws holding the front circuit board with a Phillips screwdriver torque to
(Refer Table 6-12 on page 6-17 for torque in other units).
5. Insert the LCD flexible cable into the connector on the front circuit board.
6. Push the latches into the connectors.

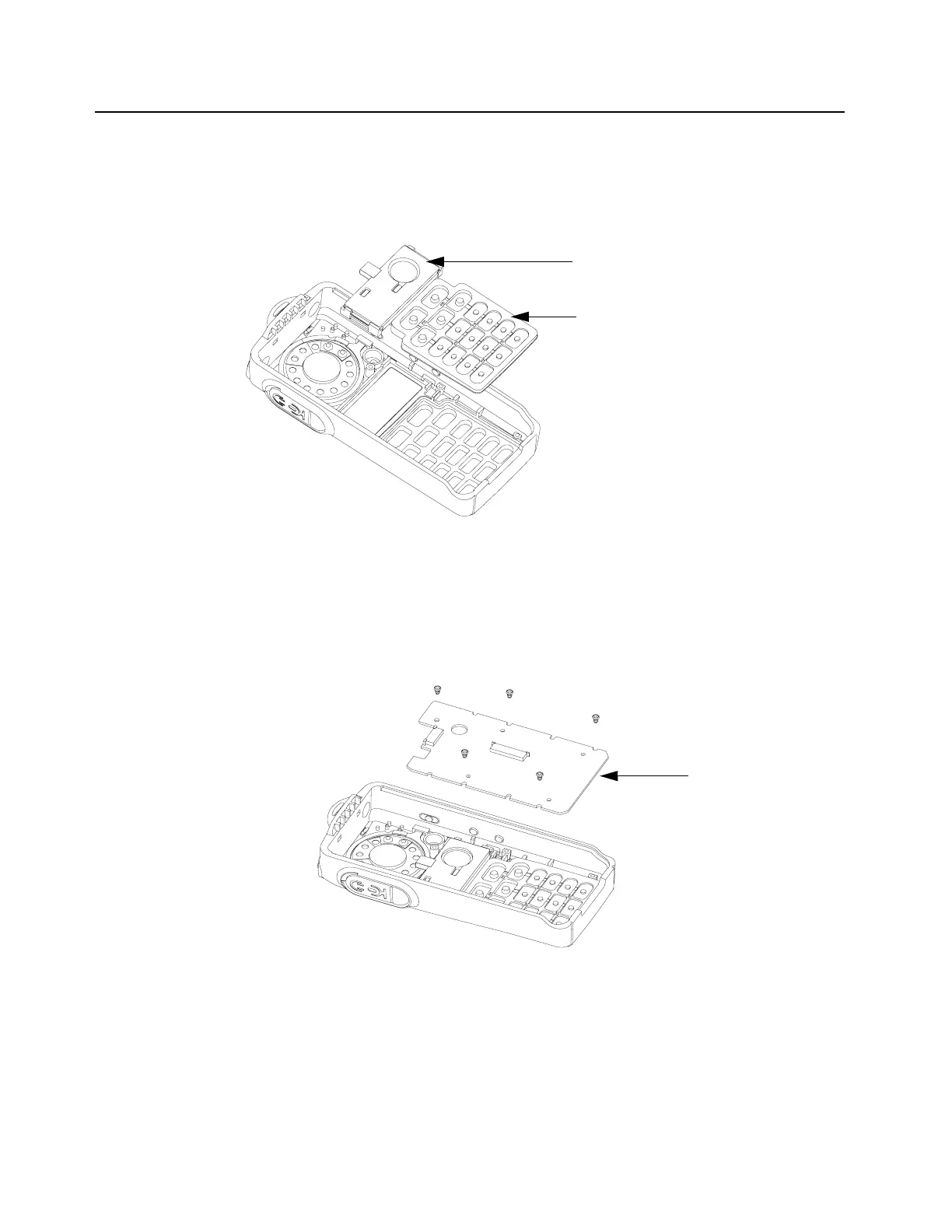

Figure 6-30. LCD and Keypad Reassembly
Figure 6-31. Front Circuit Board Reassembly
LCD
Keypad
Circuit Board

Motorola EP350 Specifications

General

Channel Capacity	16 channels
IP Rating	IP54
Drop Resistance	1.2 meters
Frequency Range	VHF: 136-174 MHz, UHF: 403-470 MHz
Battery Life	Up to 11 hours
Power Supply	7.5 V (Nominal)
Waterproof	Splashproof
Dimensions	127.6 x 62 x 42 mm (with standard battery)
