Maintenance – EP350 (Limited Keypad Model): Disassembling and Reassembling the Radio 7-9
c. Slide the rear chassis downwards, and away from the front housing. Be careful not to
damage the Flexible Cable (37) and speaker wire underneath. (Refer Figure 7-41).
d. Remove the speaker wire connector connecting the main circuit board and the internal
speaker on the front housing with the tweezers. (Refer Figure 7-42).
e. Lay the front housing down. Rotate the chassis sideways from the Front Housing
Assembly (1) and lay it down.

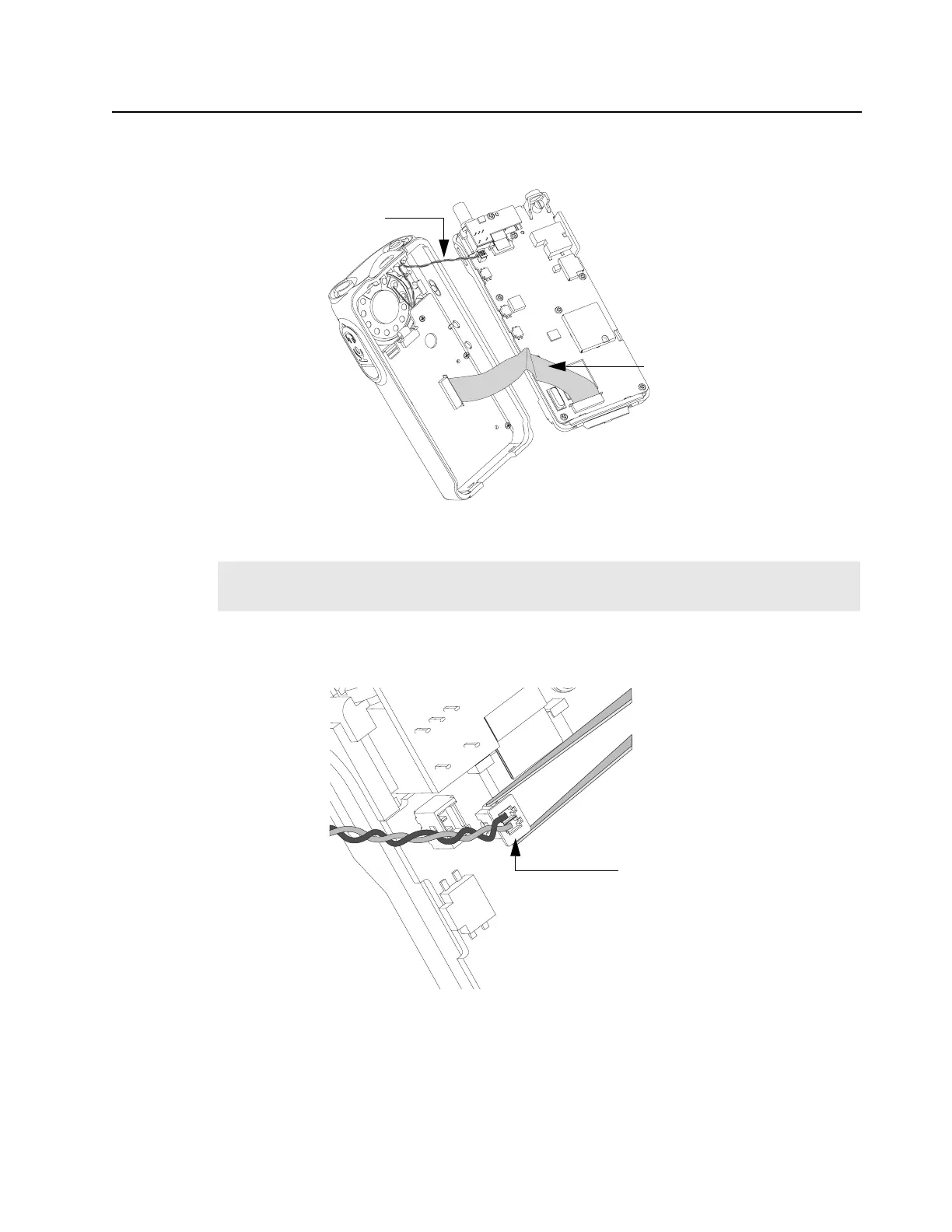

Figure 7-41. Speaker Wire and Flexible Cable Connection
Note:
The speaker wire and flexible cable connector connecting the Front Housing Assembly (1)
and the Chassis (25) prevent the two units from being completely separated
Figure 7-42. Speaker Wire Removal
Speaker Wire
Flexible Cable
Speaker Connector

Motorola EP350 Specifications

General

Channel Capacity	16 channels
IP Rating	IP54
Drop Resistance	1.2 meters
Frequency Range	VHF: 136-174 MHz, UHF: 403-470 MHz
Battery Life	Up to 11 hours
Power Supply	7.5 V (Nominal)
Waterproof	Splashproof
Dimensions	127.6 x 62 x 42 mm (with standard battery)
