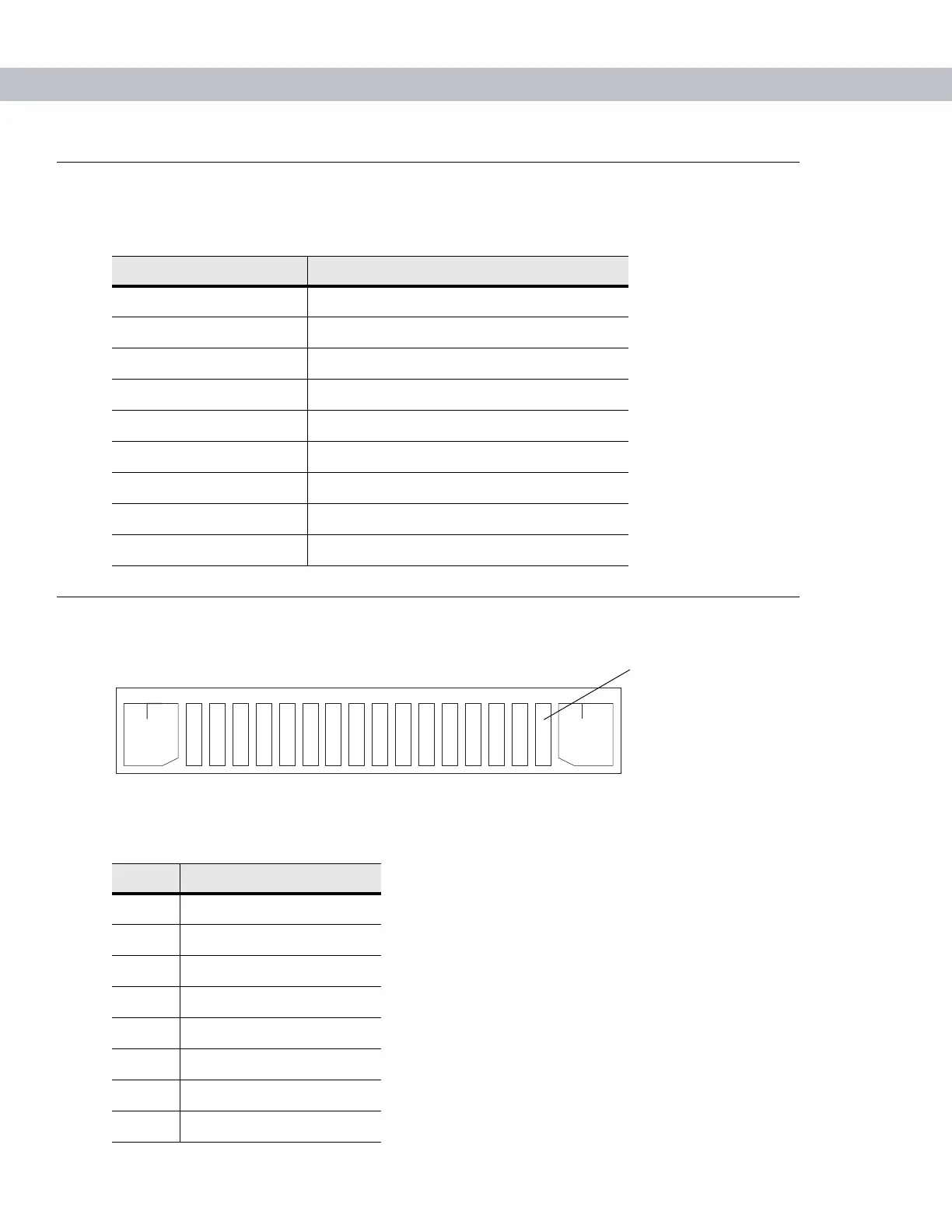

A - 6 MC70 Integrator Guide
COM Port Definitions
Pin-Outs
Figure A-1
External Connector
Table A-6
MC70 External COM Connector Definitions
COM Port Definition
COM1 Scanner
COM2 Available
COM3 IRComm
COM4 Raw IrDA
COM5 External Connector
COM6 Available
COM7 Available
COM8 Available
COM9 Available
Table A-7
External Connector Pin-Outs
Pin Description
1Power Gnd
2 CRADLE_DETECT
3 RS232_DCD/TRIGGER
4 USB_D-
5 USB_D+
6 USB_Gnd
7 USB_Vbus
8 USB_ID
Pin 1
