2 - 28 MC70 Integrator Guide
Figure 2-35
Cables (MC70 Connector)
The communication/charge cables:
Provide the EDA with operating and charging power when used with the Symbol approved power supply.
Synchronize information between the EDA and a host computer. With customized or third party software,
it can also synchronize the EDA with corporate databases.
Provide serial connection through the serial pass-through port for communication with a serial device,
such as a host computer. For communication setup procedures, see Communication Setup on page
2-29.
Provide USB connection through the USB pass-through port for communication with a USB device, such
as a host computer. For communication setup procedures, see Communication Setup on page 2-29.
Dedicated printer cables provide communication with a printer.
Setup
The EDA communication/charge cables can connect with a serial/USB device, such as a printer or host
computer, through its serial or USB port.

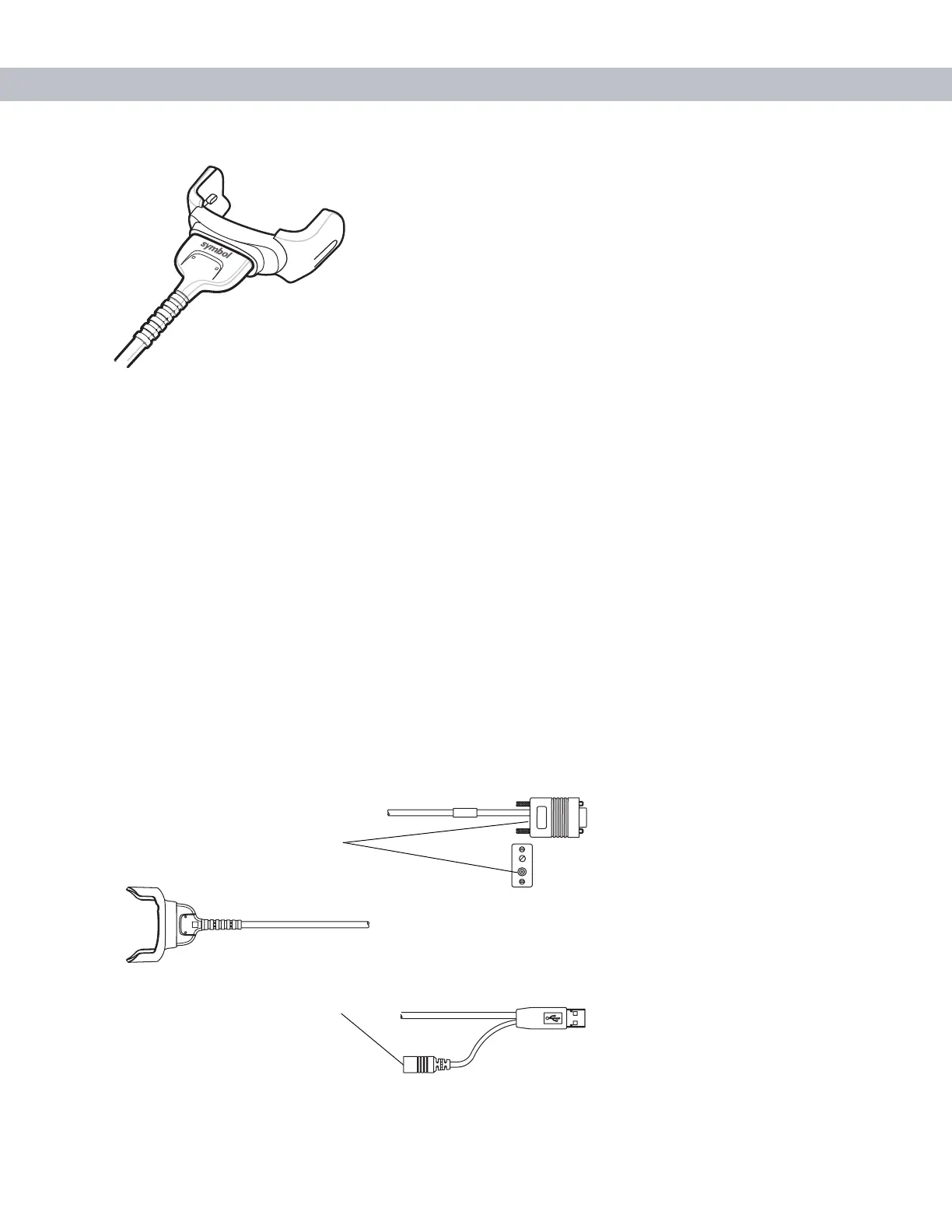

Figure 2-36
Communication/Charge Cables
USB Host Cable
Mini-B
MC70 Connector
Power Input
Barrel
Connector
Serial (RS232)
Cable
USB Client Cable
Standard-A
Connector
Power Input
Connector
Top View
