2 - 10 MC70 Integrator Guide
9. Tap ok to exit.
Charging and Communication
Insert the EDA into a slot to begin charging.

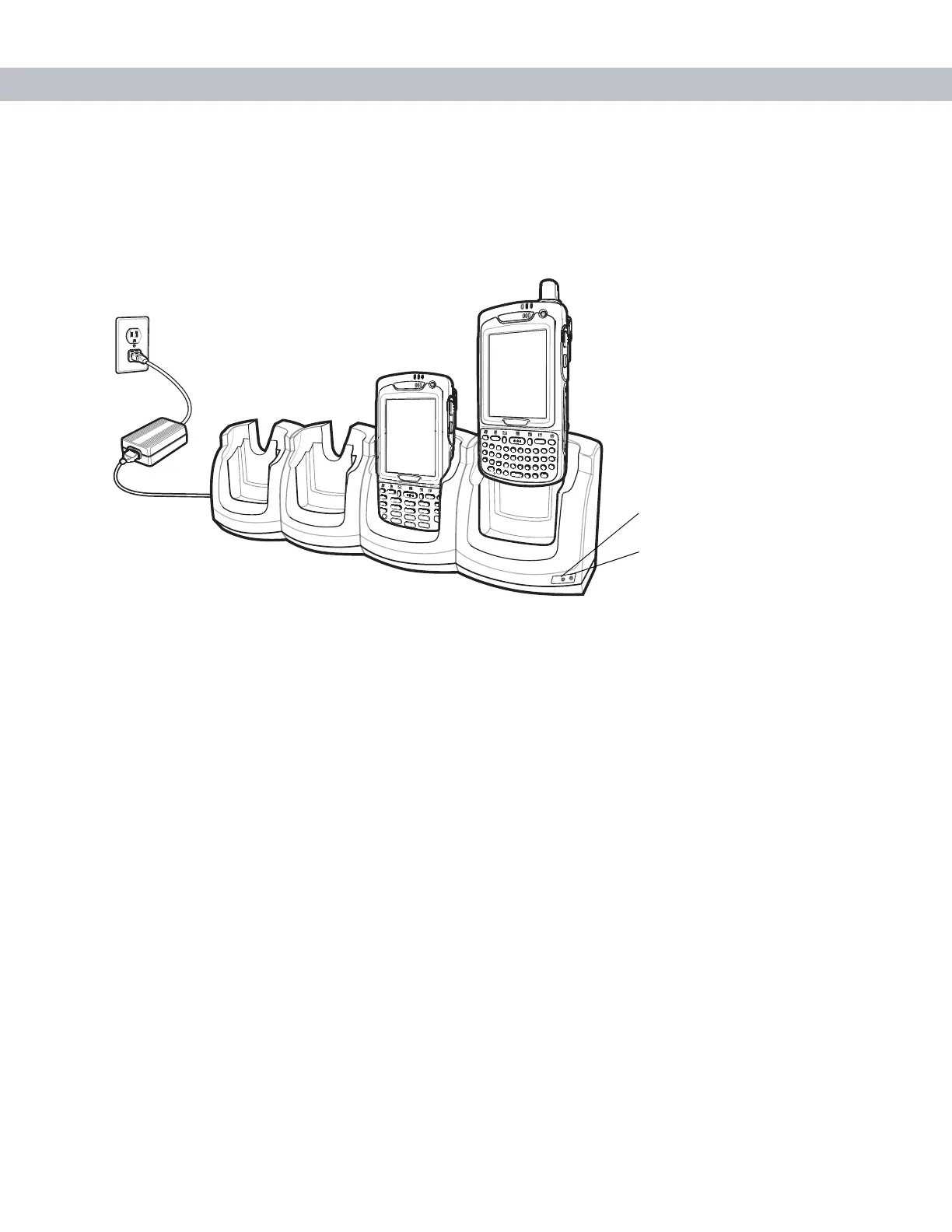

Figure 2-13
EDA Battery Charging
LED Charging Indicators
Charge LED
The EDA’s charge LED shows the status of the battery charging in the EDA. See Table 1-2 on page 1-6 for
charging status indications.
The standard battery fully charges in approximately four hours and the extended capacity battery fully charges
in approximately eight hours.
Speed LED
The cradle’s green Speed LED lights to indicate that the transfer rate is 100 Mbps. When it is not lit it indicates
that the transfer rate is 10Mbps.
Link LED
The cradle’s yellow Link LED blinks to indicate activity, or stays lit to indicate that a link is established. When it
is not lit it indicates there is no link.
Charging Temperature
Charge batteries in temperatures from 0
o
C to 40
o
C (32°F to 104°F). Note that at temperatures above 35
o
C,
charging is intelligently controlled by the EDA and the charging accessory in order to ensure safe operation
and optimize long-term battery life.
Link LED
Speed LED
