Motorola MC70 Integration Guide

Accessories2 - 25

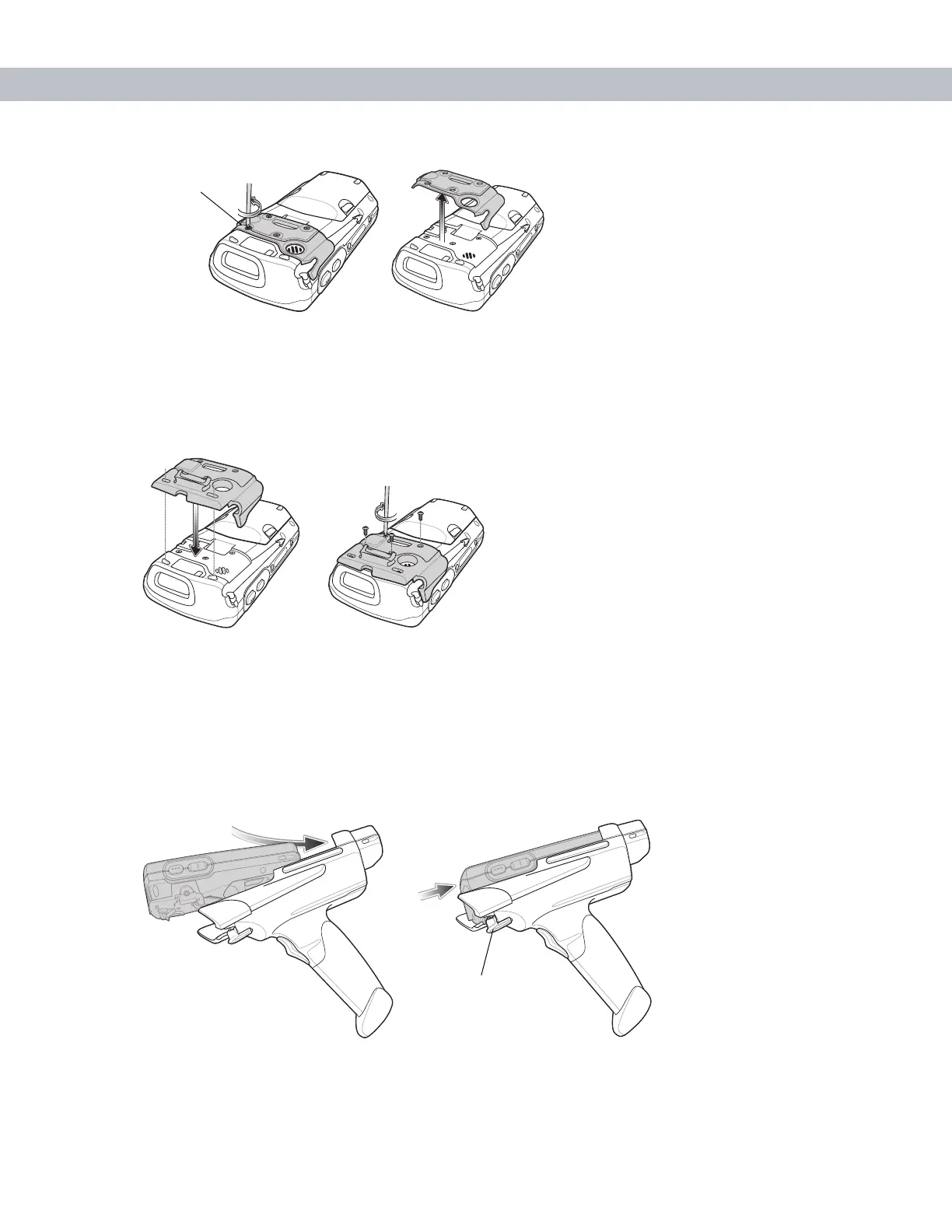

Figure 2-29 Removing Back Housing Bracket
4. Install the rubber headset jack dust cover onto the trigger handle cleat.
5. Align the trigger handle cleat onto the EDA.
6. Secure the trigger handle cleat to the EDA using the four screws saved during step 2.
Figure 2-30 Installing the Cleat
7. Feed the handstrap through the handstrap slot and secure.
Inserting the EDA into the Trigger Handle
Slide the EDA into the Trigger Handle until it locks in place. The release secures the EDA to the Trigger
Handle.
Figure 2-31 Inserting the EDA into the Trigger Handle
Back
Housing
Bracket
Release
