Accessories 2 - 7

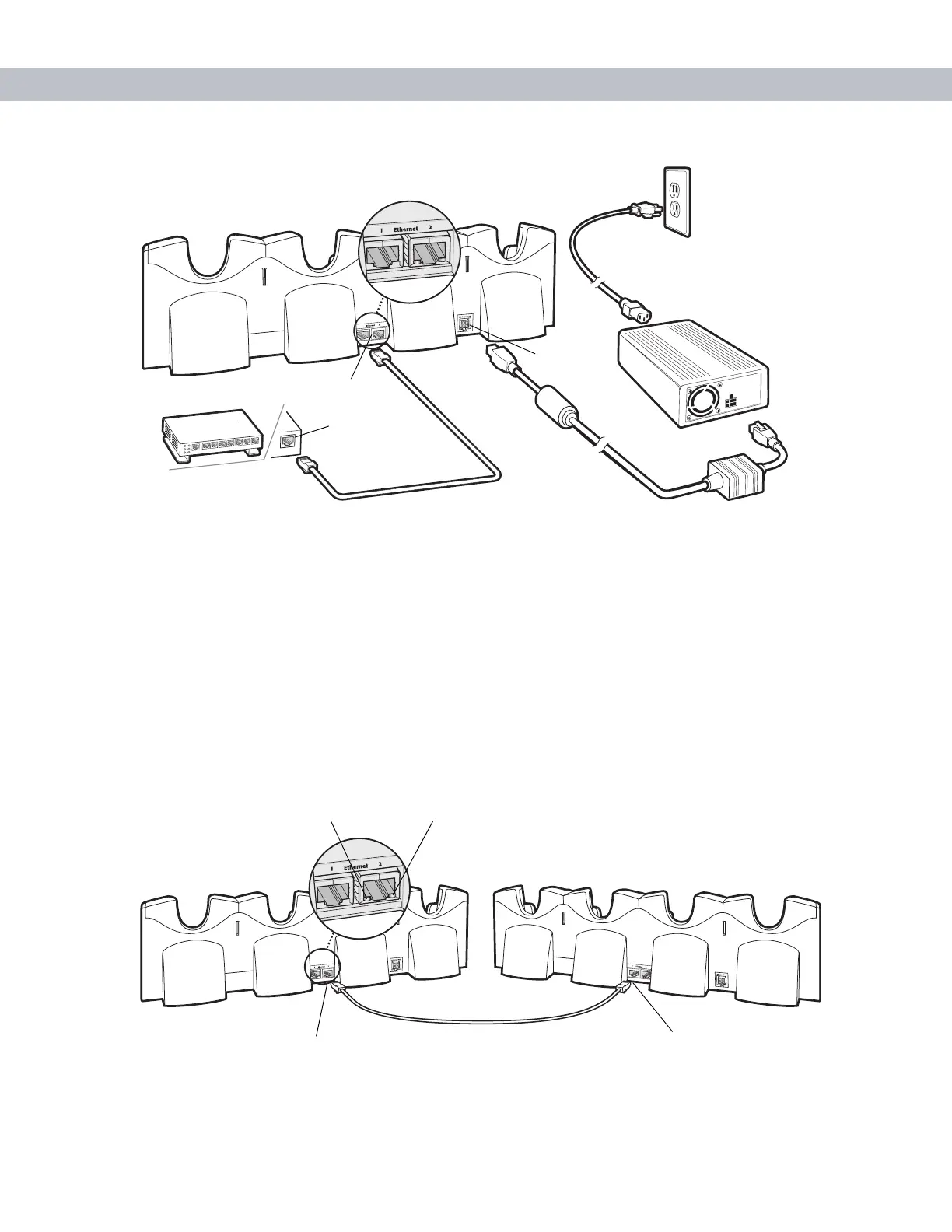

Figure 2-7
Four Slot Ethernet Cradle Connection
Daisychaining Cradles
Daisychain up to four Ethernet cradles to connect several cradles to an Ethernet network. Use either a straight
or crossover cable.
To daisychain more than one cradle:
1. Connect power to each cradle to daisychain.
2. Connect an Ethernet cable to Port 1 of the first cradle as shown in Figure 2-7.
3. Connect a second Ethernet cable between Port 2 of the first cradle, and Port 1 of the second.
4. Connect up to two more cradles as described in Step 3.
Figure 2-8
Daisychaining Four Slot Ethernet Cradles
Power Port
Ethernet Port
Ethernet Switch,
Router, or Hub
Connection
Ethernet Port 1
Ethernet Port 2
Link LED
Speed LED
