Motorola MC70 Integration Guide

2 - 12 MC70 Integrator Guide

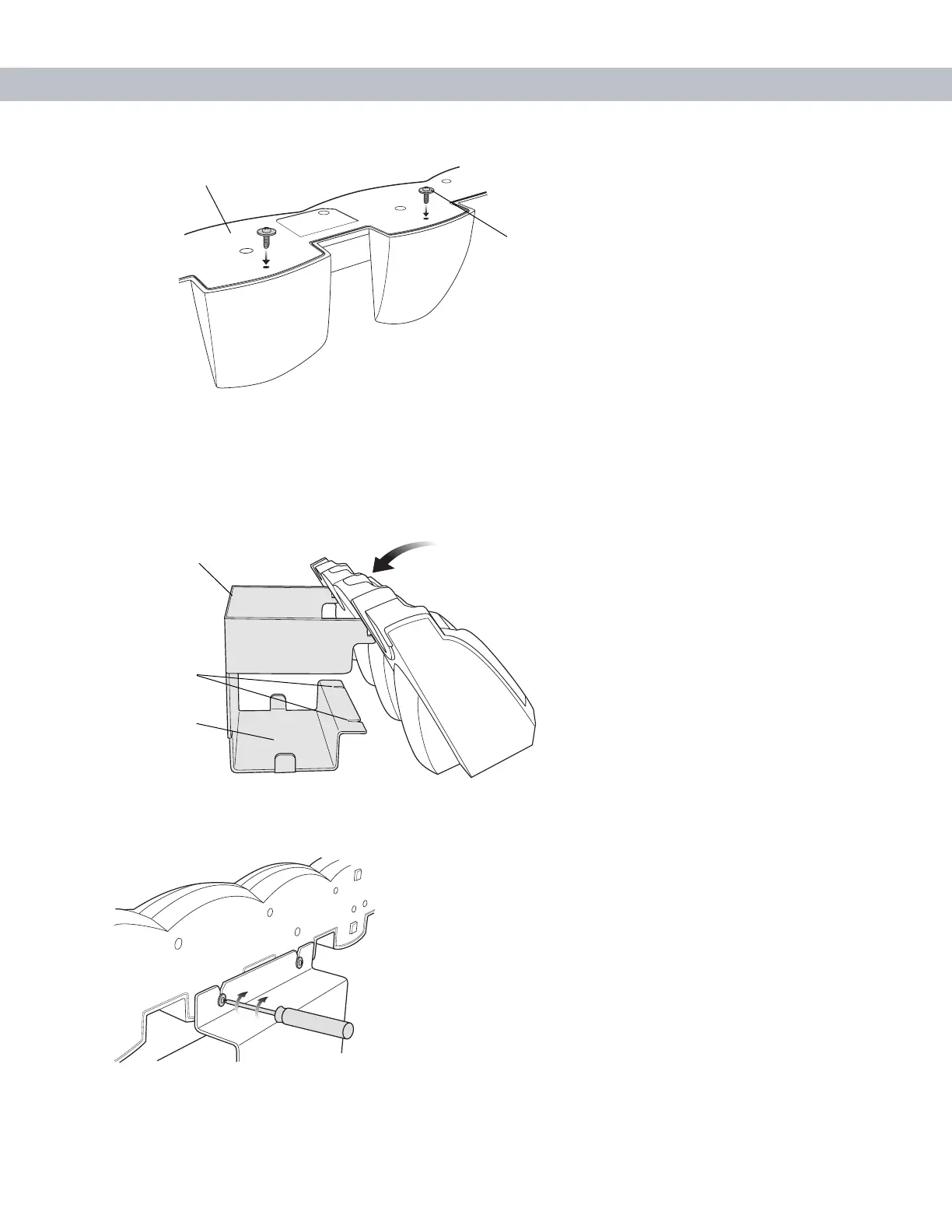

Figure 2-15 Cradle Mounting Screws
2. Align the Wall Mount Bracket mounting tabs with the mounting slots in the back of the four slot cradle. Slip
the two mounting tabs into mounting slots.
3. Swing the four slot cradle down onto the mounting bracket and align the mounting screws so that they fit
into the screw slots.
Figure 2-16 Wall Mount Bracket
4. Tighten the mounting screws to secure the four slot cradle to the bracket.
Figure 2-17 Mounting Screws
5. Connect power (see Figure 2-7 on page 2-7). The power supply should be located in the power supply
well.
Mounting Screw (2)
Four Slot Cradle
Bottom
Wall Mount
Bracket
Screw Slots
Power Supply
Well
