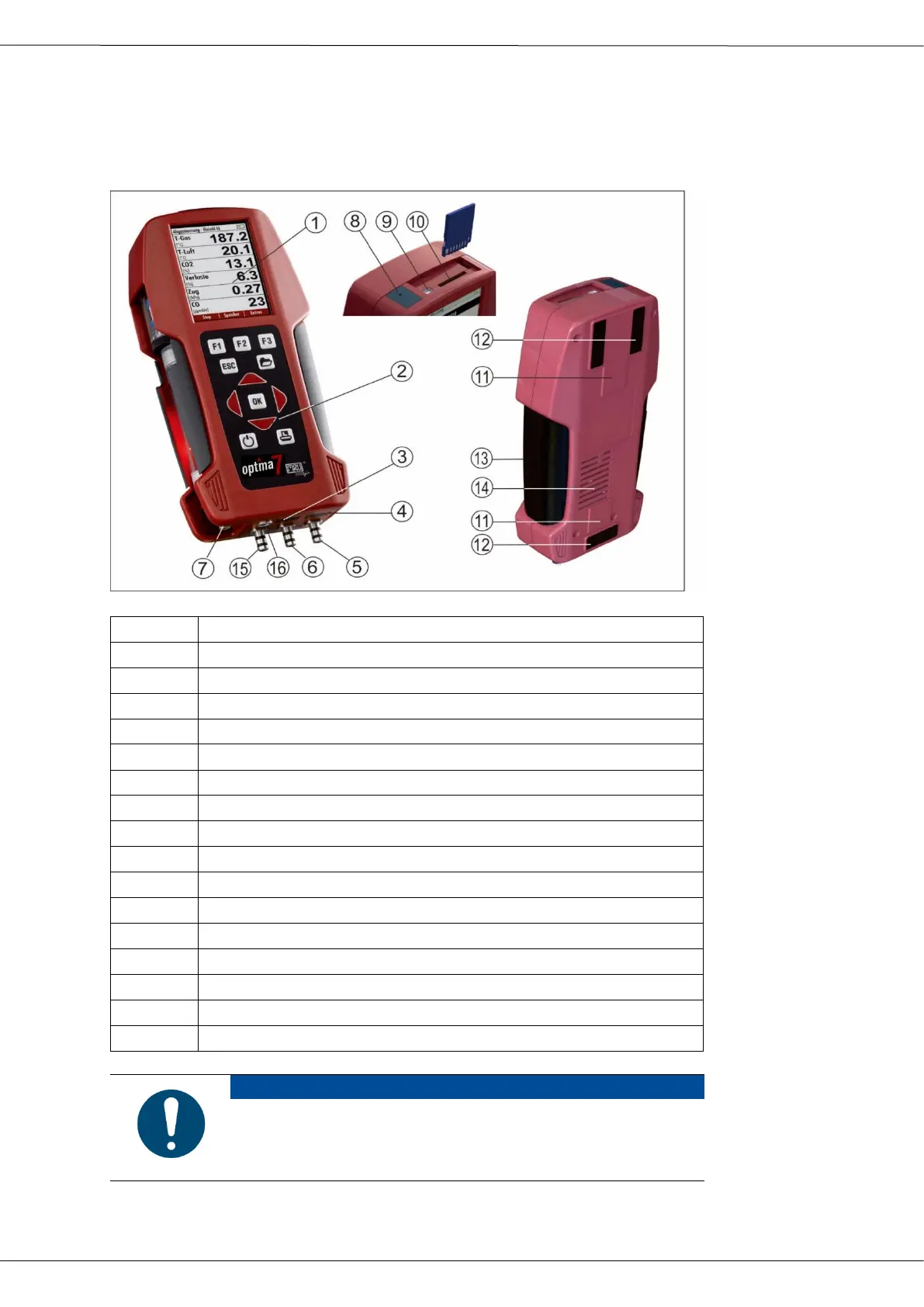

3.2. The Analyzer
The compact analyzer is made from a fibre re-enforced plastic material
with all measurement related connections at the bottom of the analyzer.
Position
Description
1
Display
2
Key pad
3
Temperature connector T2
4
Temperature connector T1
5
Pressure connector P1
6
Pressure connector P2
7
Gas outlet
8
IR-Interface
9
USB-port and charging port
10
SD-card reader
11
Fixing magnets
12
Analyzer feet
13
Handle strip
14
Gas outlet
15
Pressure connector P3
16
Connector AUX
ATTENTION
Gas outlet:
During measurement the gas outlet must not be cov-
ered
