Installation
SUPREMATouch
143
US

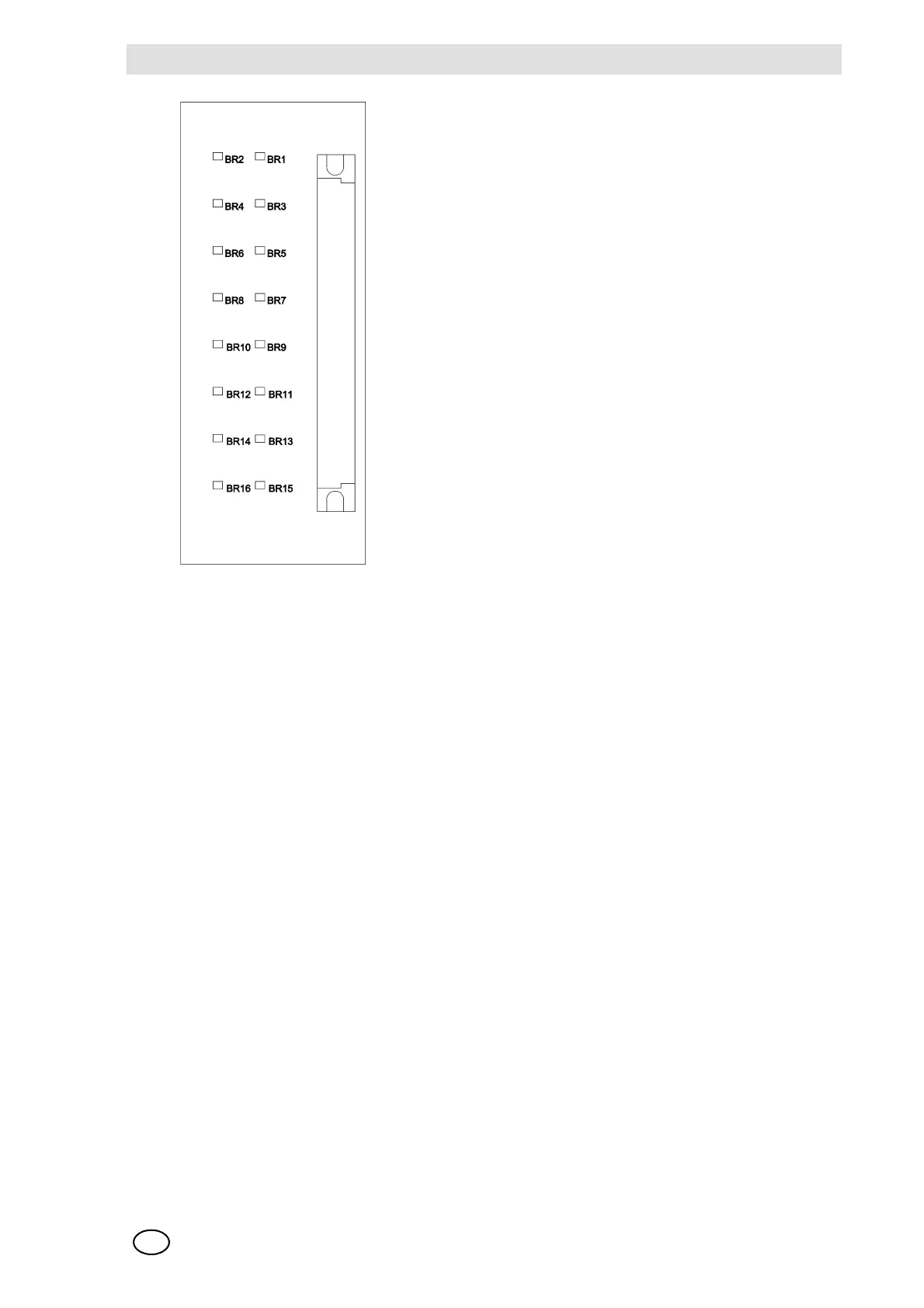

Fig. 72 Configuration of MAT Module
Configuration of MAT TS Module
On top of the circuit board, next to the ribbon cable plug, 2 solder bridges for each input are pro-
vided for the 3 or 5 wire operation of the sensors:
NOTE: The solder bridges for 3 wire operation should be closed only when passive sensors (MPI
module) are connected. For 5 wire operation with active sensors (MCI module), the solder bridges
must be open!
Solder bridge OPEN = 5 wire operation
Solder bridge CLOSED = 3 wire operation
Equivalent to
X1/1-X1/2
Equivalent to
X1/4-X1/5
Assignment: BR1, BR2 input 1
BR3, BR4 input 2
BR5, BR6 input 3
BR7, BR8 input 4
BR9, BR10 input 5
BR11, BR12 input 6
BR13, BR14 input 7
BR15, BR16 input 8
