SUPREMATouch
50
Operation of the System
MSA
US
Text [English]
Field type: Display
The English value for this measuring range is displayed here.
Text [local]
Field type: Display
The value in local language for this measuring range is displayed here.
OK
Field type: Button
By tapping this button, the completed settings for the selected measuring range are applied.
Cancel
Field type: Button
By tapping this button, the completed settings for the selected measuring range are discarded.
Dimensions

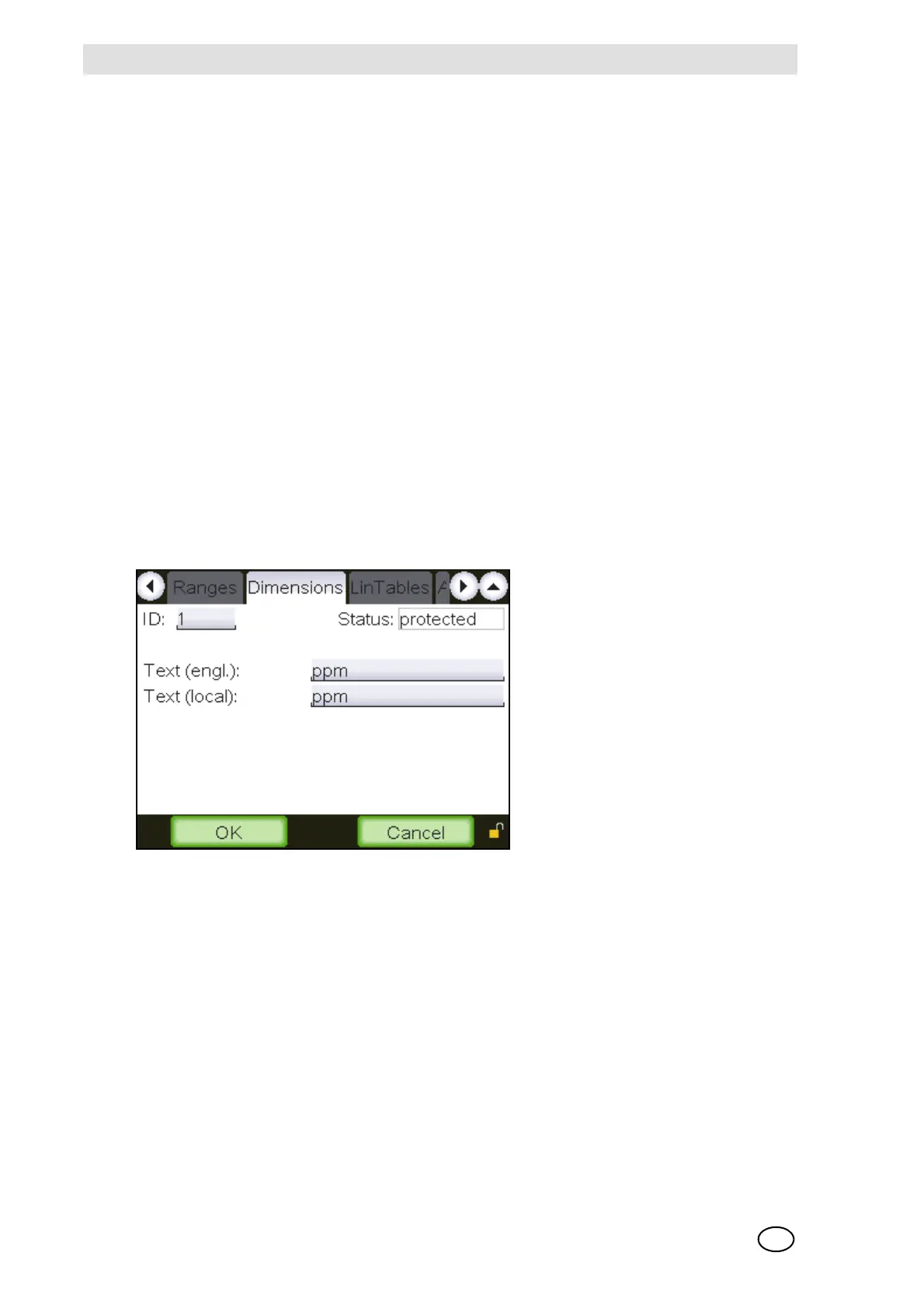

Fig. 24 “Dimensions”
This window makes is possible to view dimensions provided and to adjust some predefined
changeable dimensions.
Dimensions can be selected arbitrarily. Identical names are not allowed and will be rejected with
the message: “Error: Name not unique!”
The functions of the individual fields are described below:
ID [ID of this Dimension]
Field type: Choice
A dimension can be selected by means of its ID.
