Operation of the System
SUPREMATouch
51
US
Status [Status of this cell]
Field type: Display
This field displays the status of the cell used for data saving. If the status is “protected”, then no
data can be changed and the following input fields are simply display fields.
Text [English]
Field type: Text
The English text for the dimension can be entered here.
Text [local]
Field type: Text
The text in local language for the dimension can be entered here.
OK
Field type: Button
By tapping this button, the completed settings for the selected dimension are applied.
Cancel
Field type: Button
By tapping this button, the completed settings for the selected dimension are discarded.
Linearity tables

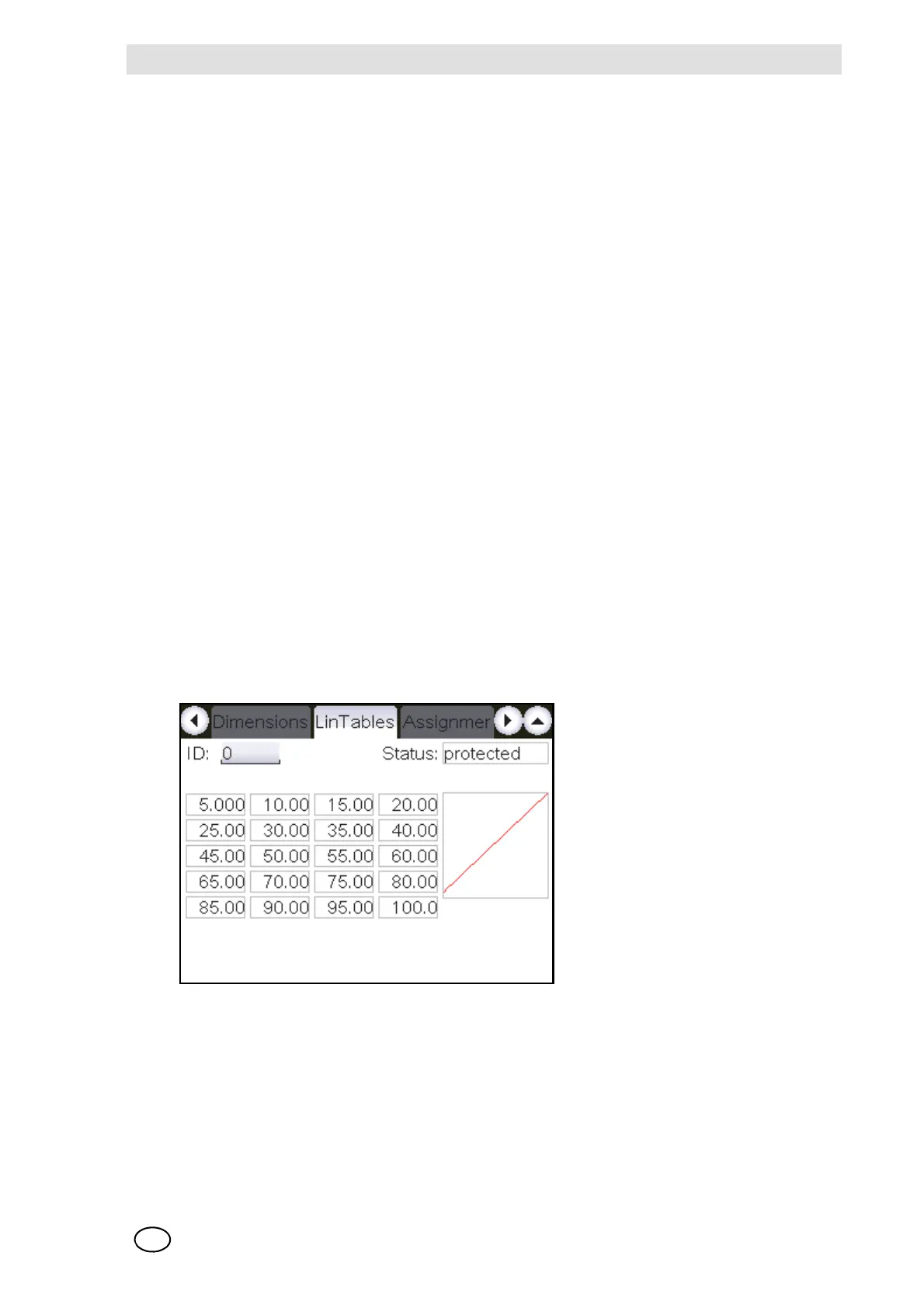

Fig. 25 “Lin. tables” window
This window makes it possible to view provided linearisation tables.
The functions of the individual fields are described below:
ID [ID of this linearisation table]
Field type: Selection
A linearisation table can be selected by means of its ID.
