Operation of the System
SUPREMATouch
63
US

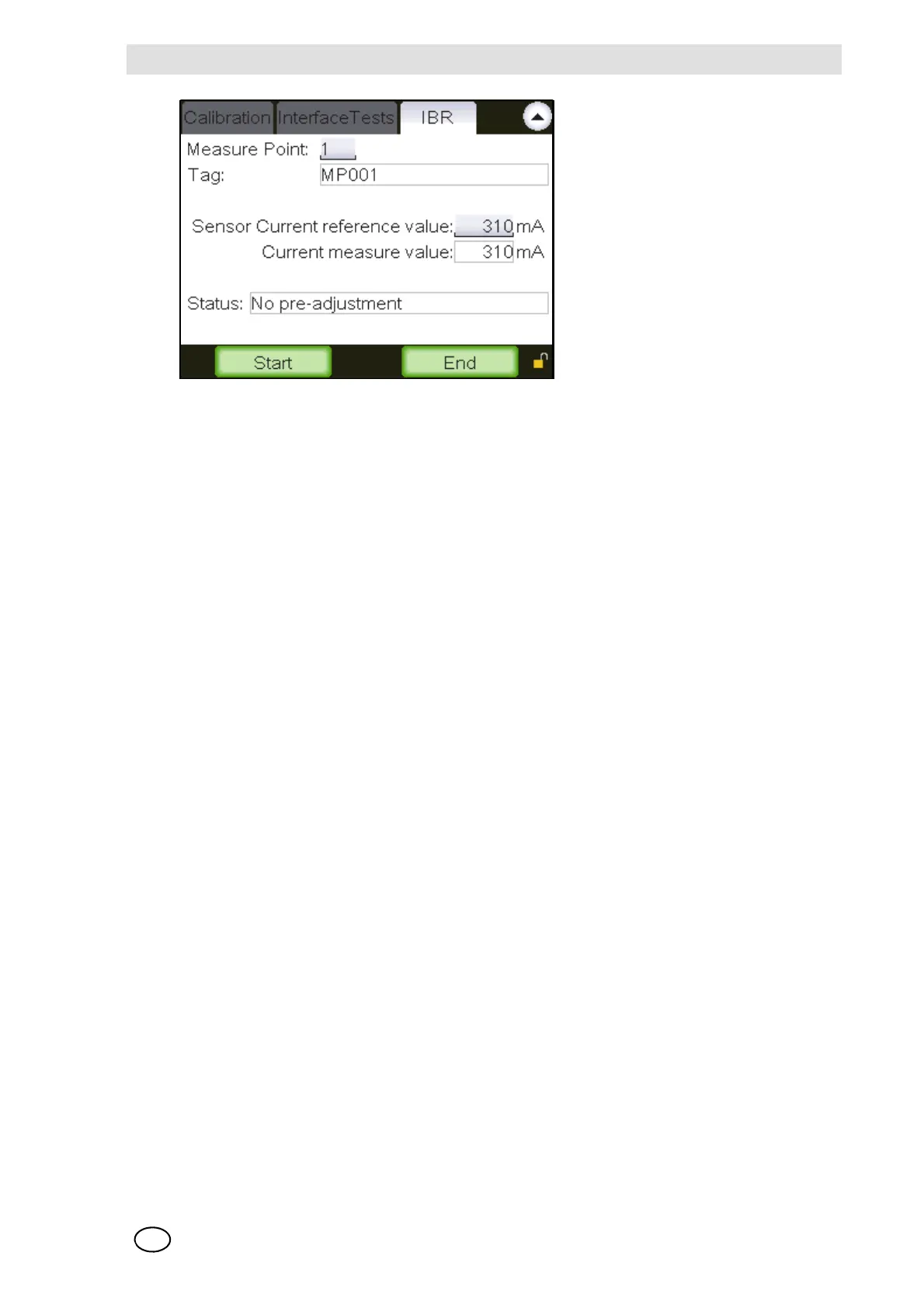

Fig. 36 “IBR”
The functions of the individual fields are described below:
Measuring point
Field type: Selection
The measuring point, for which the sensor current should be set can be selected in this field.
Tag
Field type: Display
This field displays the tag defined for the selected measuring point.
Sensor current reference value
Field type: Number input
Using this field, the value to which the bridge current should be set can be defined. This value is
sensor type dependent, but it can also be adjusted for special applications.
Current measure value
Field type: Display
This field displays the actual measured bridge current.
Status
Field type: Display
This field displays the current presetting status of this measuring point.
Start
Field type: Button
The presetting is started by tapping this button.
