HYDROCAL 1005 Manual for Installation and Operation Page 18/111

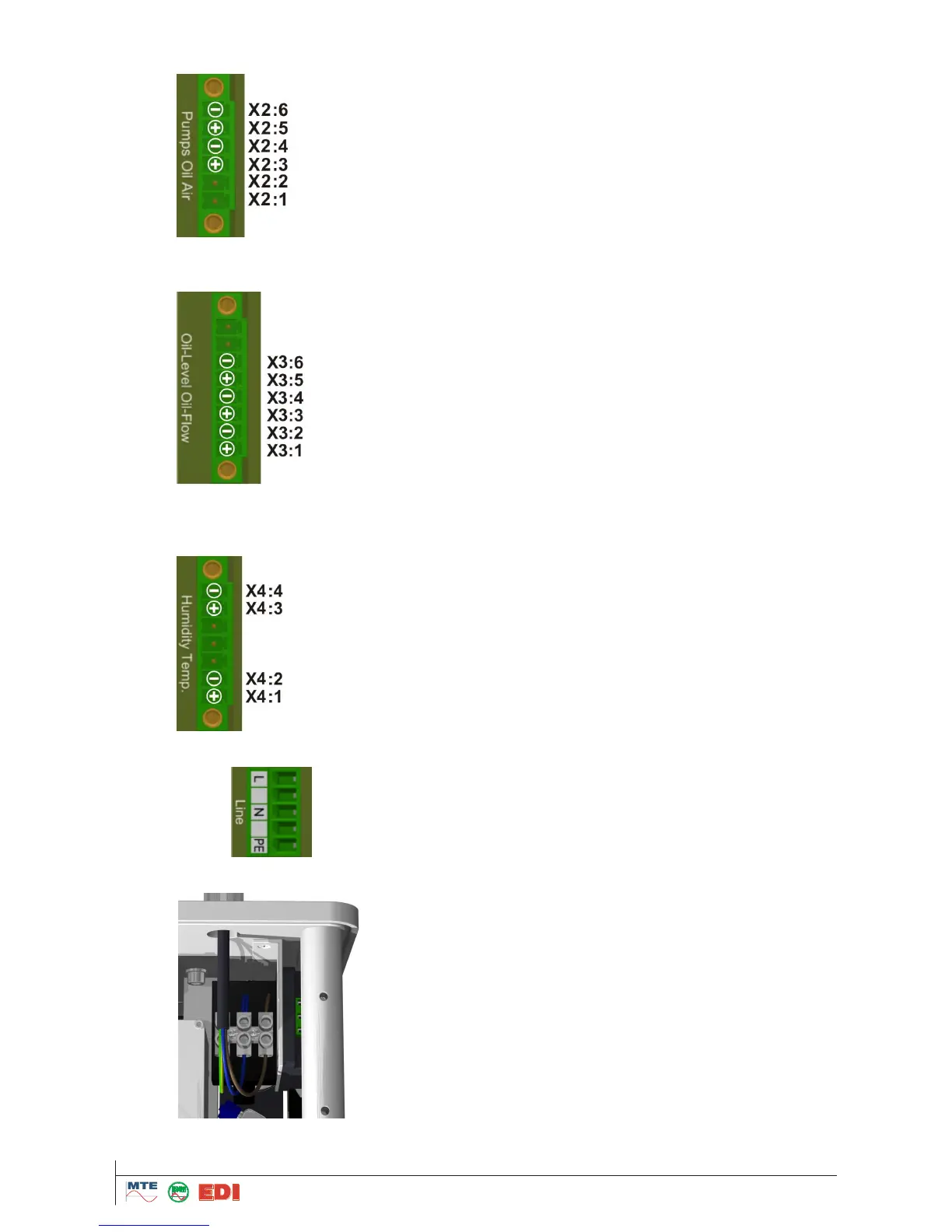

Connector ST14: Pumps Oil Air
Connection for pumps oil air control
Connector ST11: Oil Level / Oil-Flow
Connection for oil level / oil flow control
Connector ST3: Humidity Temperature
Connection for humidity temperature control
Connector KL1: Power supply
Note: The connection [5] is connected to a filter module from
where the connection to the power supply 88 VAC
min
…
276 VAC
max
and PE is made
As showed on picture on the left side, usually you just need to
connect cables to the main power supply connector
Brown L
Blue N
Green/yellow PE
