HYDROCAL 1005 Manual for Installation and Operation Page 19/111
[6]

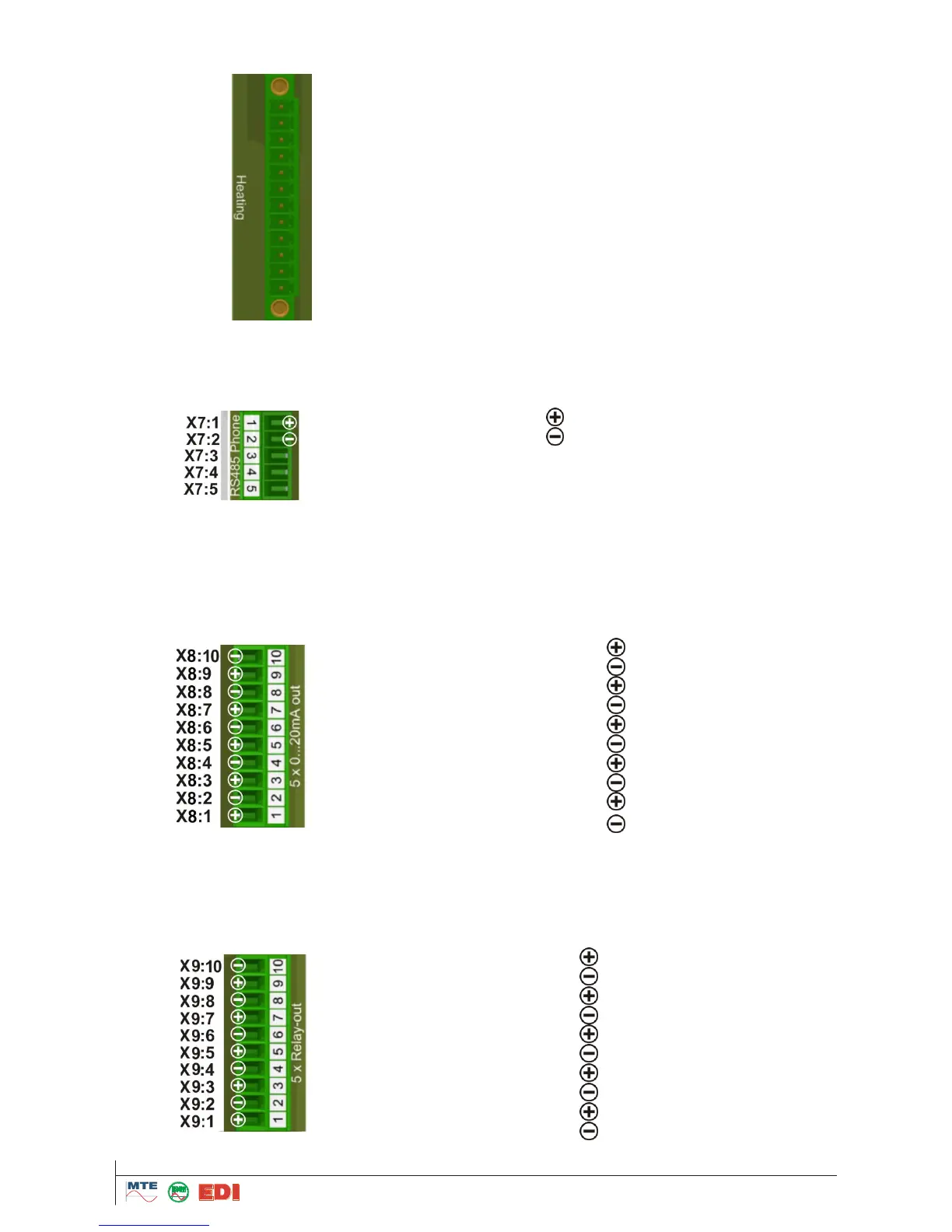

Connector ST12: Heating
Connection of the heating resistors, depending from the supply
voltage
[7]
Connector KL302: Interface RS485 and Modem
X7:1  (OUT B ) RS485
X7:2  (OUT A ) RS485
X7:3  GNDIO Signal ground not shield
X7:4  Phone B
X7:5  Phone A
[8]
Connector KL301: Analogue Outputs
4…. 20 mADC
X8:1  (Analogue output 1 )
X8:2  (Analogue output 1 )
X8:3  (Analogue output 2 )
X8:4  (Analogue output 2 )
X8:5  (Analogue output 3 )
X8:6  (Analogue output 3 )
X8:7  (Analogue output 4 )
X8:8  (Analogue output 4 )
X8:9  (Analogue output 5
)
X8:10  (Analogue output 5
)
[9]
Connector KL402: Relay Outputs
12 VDC / 220 VDC/VAC / 2 A / 60 W
X9:1  (Relay output 1 )
X9:2  (Relay output 1 )
X9:3  (Relay output 2 )
X9:4  (Relay output 2 )
X9:5  (Relay output 3 )
X9:6  (Relay output 3 )
X9:7  (Relay output 4 )
X9:8  (Relay output 4 )
X9:9  (Relay output 5 )
X9:10  (Relay output 5 )
