HYDROCAL 1005 Manual for Installation and Operation Page 20/111
[10]

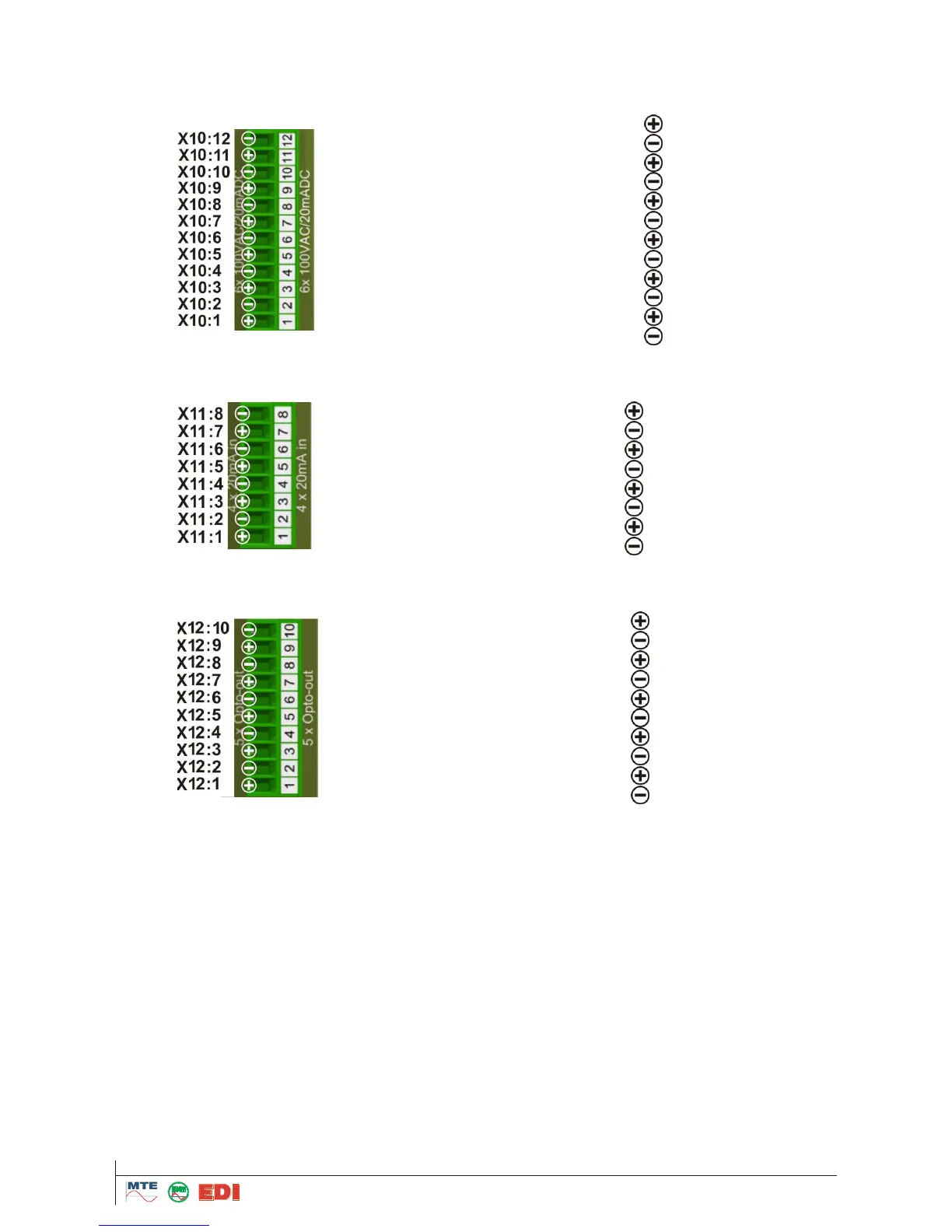

Connector KL102: Analogue AC Inputs (in Option)
6 x 0 ... 80V +20%
6 x 0/4 … 20mA +20%
X10:1  (Analogue AC input 1 )
X10:2  (Analogue AC input 1 )
X10:3  (Analogue AC input 2 )
X10:4  (Analogue AC input 2 )
X10:5  (Analogue AC input 3 )
X10:6  (Analogue AC input 3 )
X10:7  (Analogue AC input 4 )
X10:8  (Analogue AC input 4 )
X10:9  (Analogue AC input 5 )
X10:10  (Analogue AC input 5 )
X10:11  (Analogue AC input 5 )
X10:12  (Analogue AC input 5 )
[11]
Connector KL101: Analogue DC Inputs (in Option)
0/4 … 20 mA
X11:1  (Analogue DC input 1 )
X11:2  (Analogue DC input 1 )
X11:3  (Analogue DC input 2 )
X11:4  (Analogue DC input 2 )
X11:5  (Analogue DC input 3 )
X11:6  (Analogue DC input 3 )
X11:7  (Analogue DC input 4 )
X11:8  (Analogue DC input 4 )
[12]
Connector KL301: Opto coupler output (in Option)
5 VDC / U
CE
: 4 V / U
EC
: 7 V / U
CE
: 40 mA
X12:1  (Opto coupler output 1 )
X12:2  (Opto coupler output 1 )
X12:3  (Opto coupler output 2 )
X12:4  (Opto coupler output 2 )
X12:5  (Opto coupler output 3 )
X12:6  (Opto coupler output 3 )
X12:7  (Opto coupler output 4 )
X12:8  (Opto coupler output 4 )
X12:9  (Opto coupler output 5 )
X12:10 (Opto coupler output 5 )
[13]
GSM/GPRS-module / GSM antenna
Connector Mini-BNC
