MTE HYDROCAL1005 - 4.9.4 Configuration of alarms and digital outputs

HYDROCAL 1005 Manual for Installation and Operation Page 46/111
External sensors with standard output signals (0(4)...20mA) can be connected to the HYDRO-
CAL1005 analogue inputs.
Note: No power supply is available for external sensors.

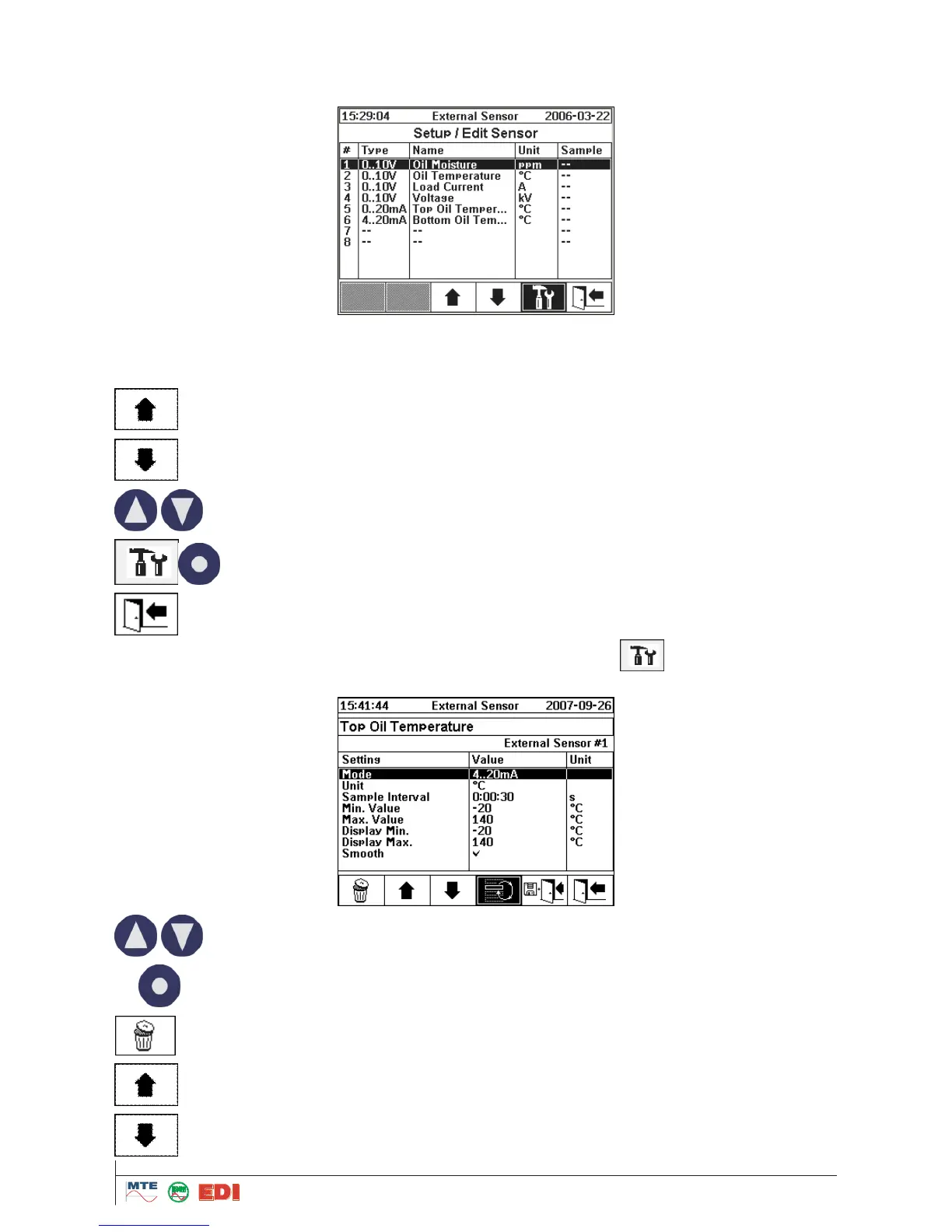

First an input number must be selected. The first 10 input numbers are assigned to the analogue in-
puts (1 .. 6 bushing, 7 .. 10 external sensors and 11 … 14 virtual sensors).
The following functions are available:
Scroll up marking
Scroll down marking
Scroll up / down marking
Enter button : selection of active menus or submenus
Exit
As soon as an input is selected and made available for configuration , the following functions
are available:
Scroll up / down
Enter button: selection of active menus or submenus
Cancel input
Scroll up
Scroll down
