About Tuning
Model 493.02 Controller Service
Tuning
213
Using the
controller scope
If you do not have an oscilloscope, use the controller scope feature for
tuning control modes. Review the following:
• Select Scope on the FlexTest SE front panel (Stand-Alone) or
Scope on the Station Manager Display menu (Automated).
• Select a continuous sweep.
• Enter the minimum and maximum ranges on the Y axis to zoom
into the area of interest.
Command
Feedback
Error
Signal
Static
Accuracy
Difference
Command
Feedback
Error
Signal
Following Erro
r
Difference
Command
Feedback
Error
Signal
Actuator
Friction
Zero
Zero
Zero

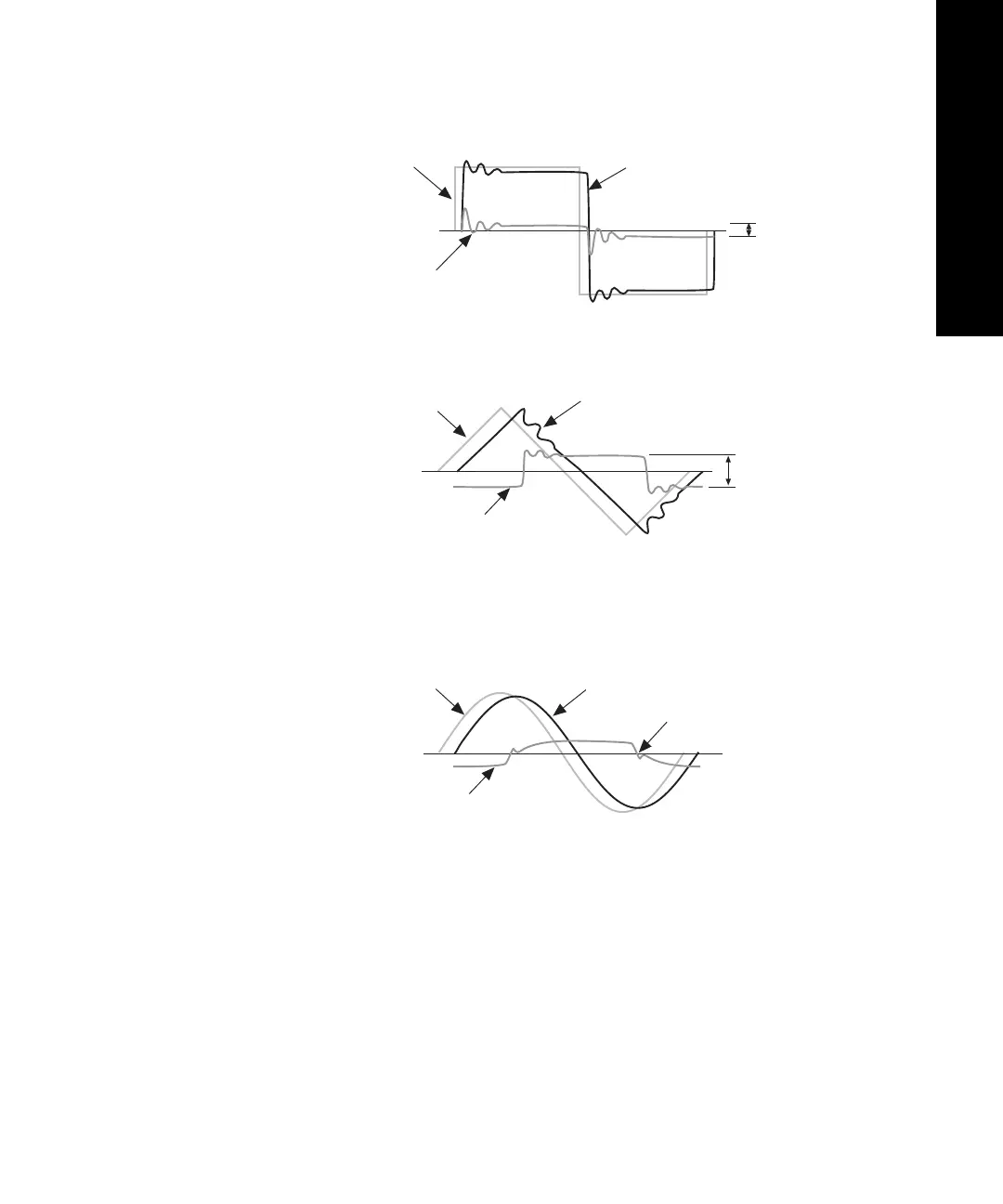

The error signal from a square
wave should show the
feedback ringing centered on
the zero reference.
A static accuracy difference in
the error signal can be
corrected with reset.
The error signal from a sine
should be a small amplitude
sine waveform that looks like a
rounded square waveform.
The square wave shape of the
error signal represents the
phase lag of the feedback
signal.
