MP7505 Series User Manual
12
Set the low level
Press the Offset/Low softkey to confirm whether the Low menu item is highlit; if not,
press the Offset/Low softkey to switch to Low. In Parameter 3 of Figure 5-1, a
blinking cursor appears in the parameter value of low level. Turn the rotary control
to change the value directly, or use the numeric keypad to input the desired value
and choose the unit.
Set the start phase
Press the Start Phase softkey, the Start Phase menu item is highlit. In Parameter 4 of
Figure 5-1, a blinking cursor appears in the parameter value of start phase. Turn the
rotary control to change the value directly, or use the numeric keypad to input the
desired value and choose the unit.
Output Square Wave
Press , the screen displays the user interface of the square wave. The Square
waveform parameters can be set by operating the Square setting menu on the right.
The square wave menu includes: Frequency/Period, Amplitude/High Level,
Offset/Low Level, and Start Phase.
To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, Start Phase,
please refer to Output Sine Wave on page 10.
Channel
Parameter 4
Current signal
Period
High Level
Low Level
Parameter 1
Parameter 2
Parameter 3
Setting menu of
Square signal
Current
signal
Load
Output
switch

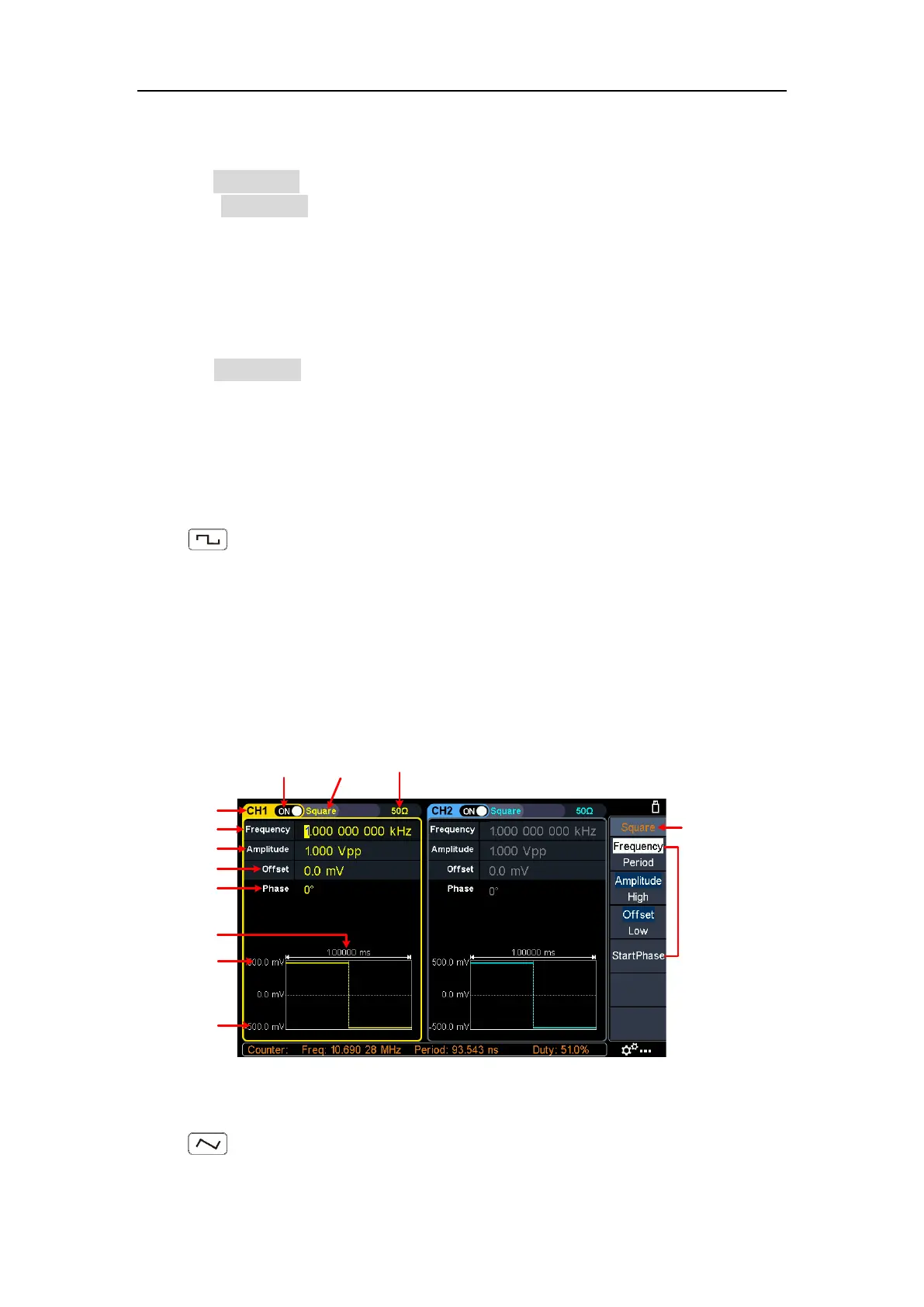

Figure 5-3: Square wave user interface
Output Ramp Wave
Press , the screen displays the user interface of the ramp wave. The Ramp
waveform parameters can be set by operating the Ramp setting menu on the right.
The ramp menu includes: Frequency/Period, Amplitude/High Level, Offset/Low
