Set the rising/falling time
Press the Rising/Falling softkey, the chosen menu item is highlit. Press the
Rising/Falling softkey to switch between Rising Time and Falling Time. In Parameter
6 of Figure 5-6, a blinking cursor appears in the parameter value. Turn the rotary
control to change the value directly, or use the numeric keypad to input the desired
value and choose the unit.
Output Noise Wave
The noise wave which the generator output is white noise. Press , the screen
displays the user interface of the noise wave. The Noise waveform parameters can be
set by operating the Noise setting menu on the right.
The noise wave has no frequency and periodic parameters.
The noise wave menu includes: Amplitude/High Level, Offset/Low Level.
To set the Amplitude/High Level, Offset/Low Level, please refer to Output Sine Wave
on page 10.

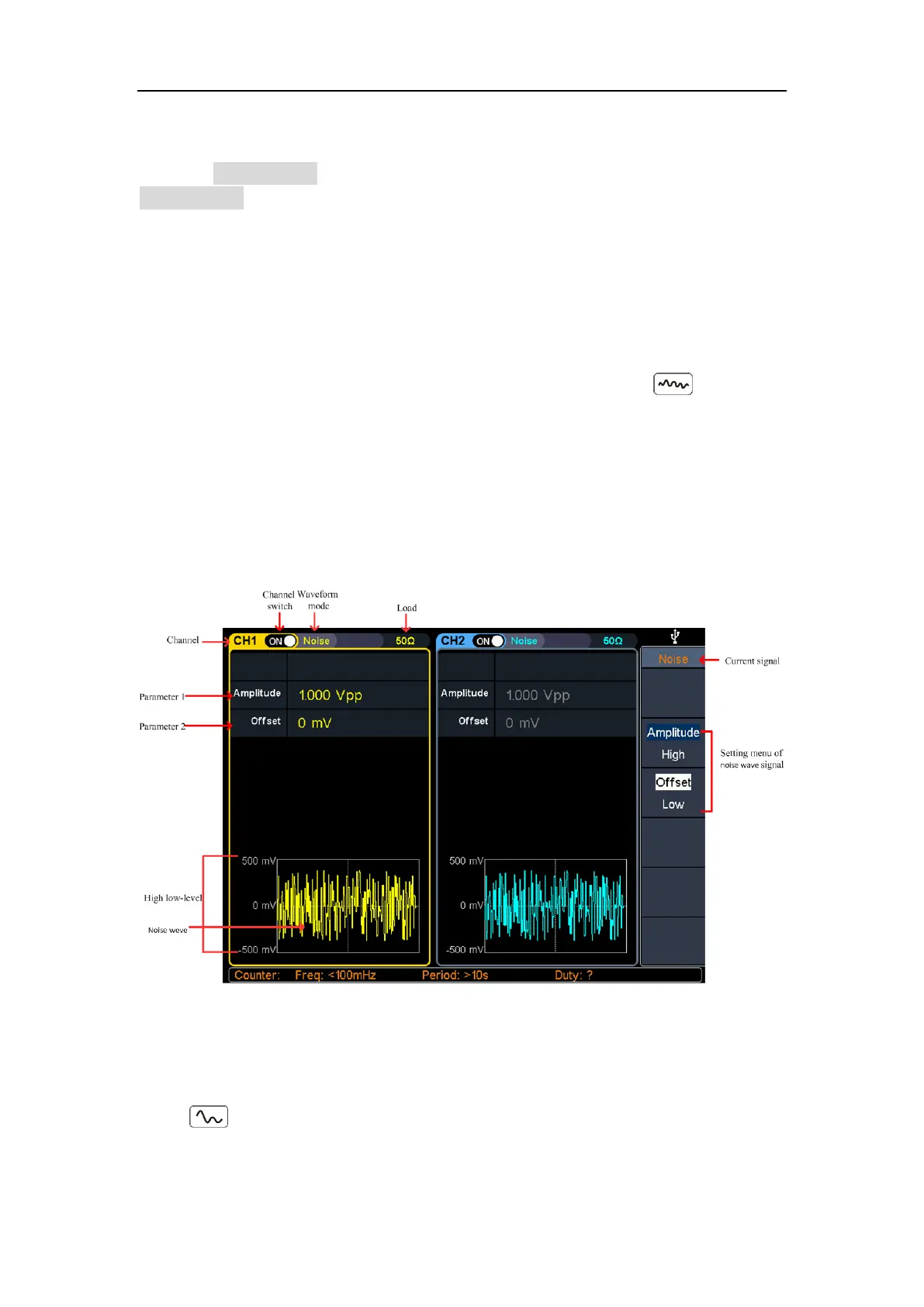

Figure 5-8: Noise wave user interface
Output Arbitrary Wave
Press , the screen displays the user interface of the arbitrary wave. The
Arbitrary waveform parameters can be set by operating the Arbitrary setting menu
on the right.
