(5) Set 4FSK rate:
Press the FSK Rate softkey to set the 4FSK rate. The rate at which the output
frequency shifts between the carrier frequency and the three hop frequencies is
determined by 4FSK rate (for internal source). The range is 2 mHz – 1 MHz.
(6) Set hop frequencies:
Press the HopFreq1, HopFreq2 and HopFreq3 softkey to set the three hop
frequencies.
BPSK (Binary Phase Shift Keying)
Binary Phase Shift Keying modulation is a modulation technique that shifts the
output signal phase between two phases: the carrier phase and modulating phase.
Carrier wave phase shifts to the modulating phase with the specified BPSK rate, and
then returns to the original phase. The BPSK user interface is shown below.

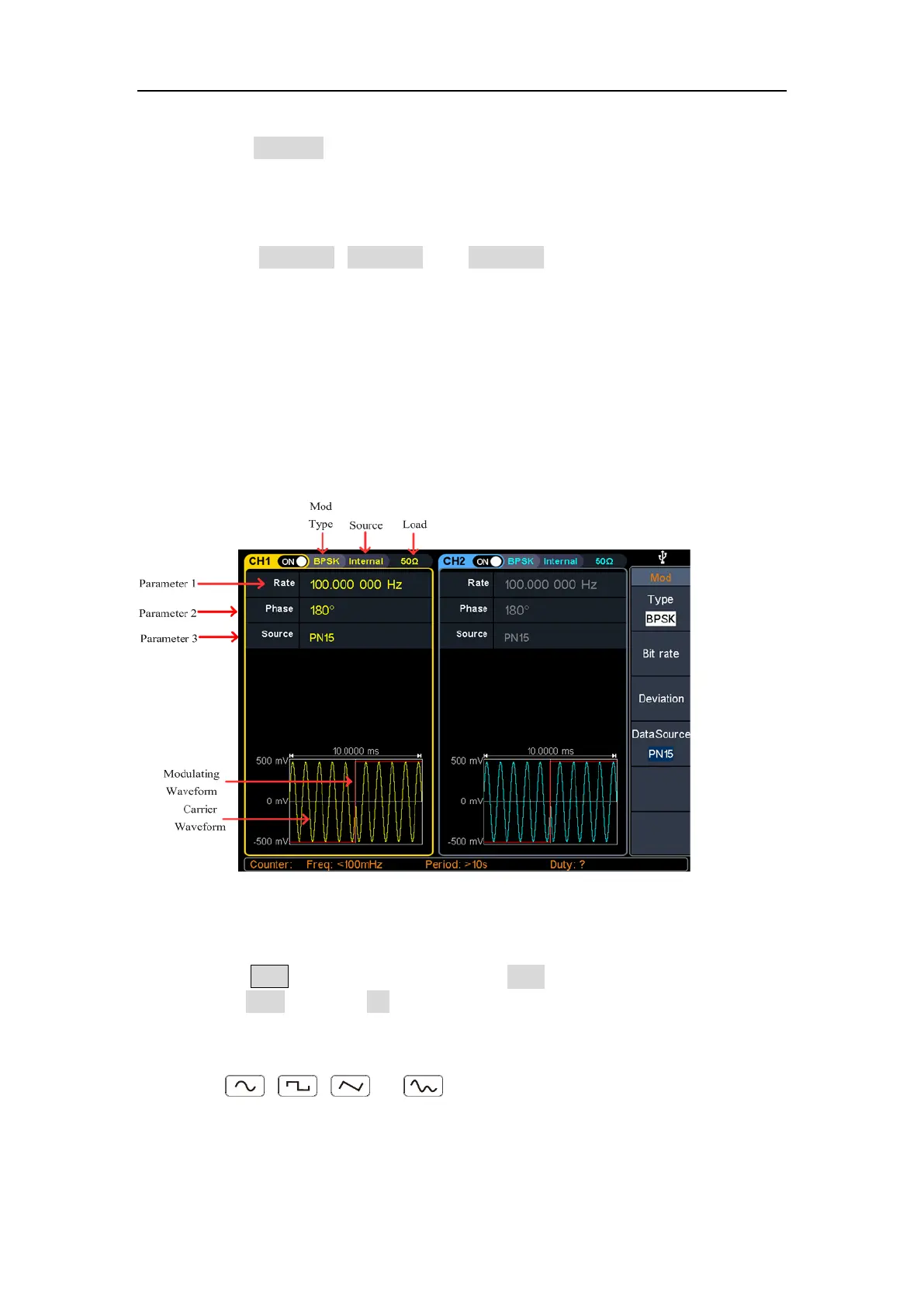

Figure 5-21: BPSK user interface
How to set the parameters of BPSK
(1) Press the Mod function key, then press the Type softkey, turn the rotary control
to select BPSK, press the OK softkey.
(2) Select carrier wave shape:
The carrier wave can be Sine, Square, Ramp, or Arbitrary wave (except DC).
Press , , , or to select a desired carrier wave shap.
