MP7505 Series User Manual
13
Level, Start Phase, and Symmetry.
To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, Start Phase,
please refer to Output Sine Wave on page 10.

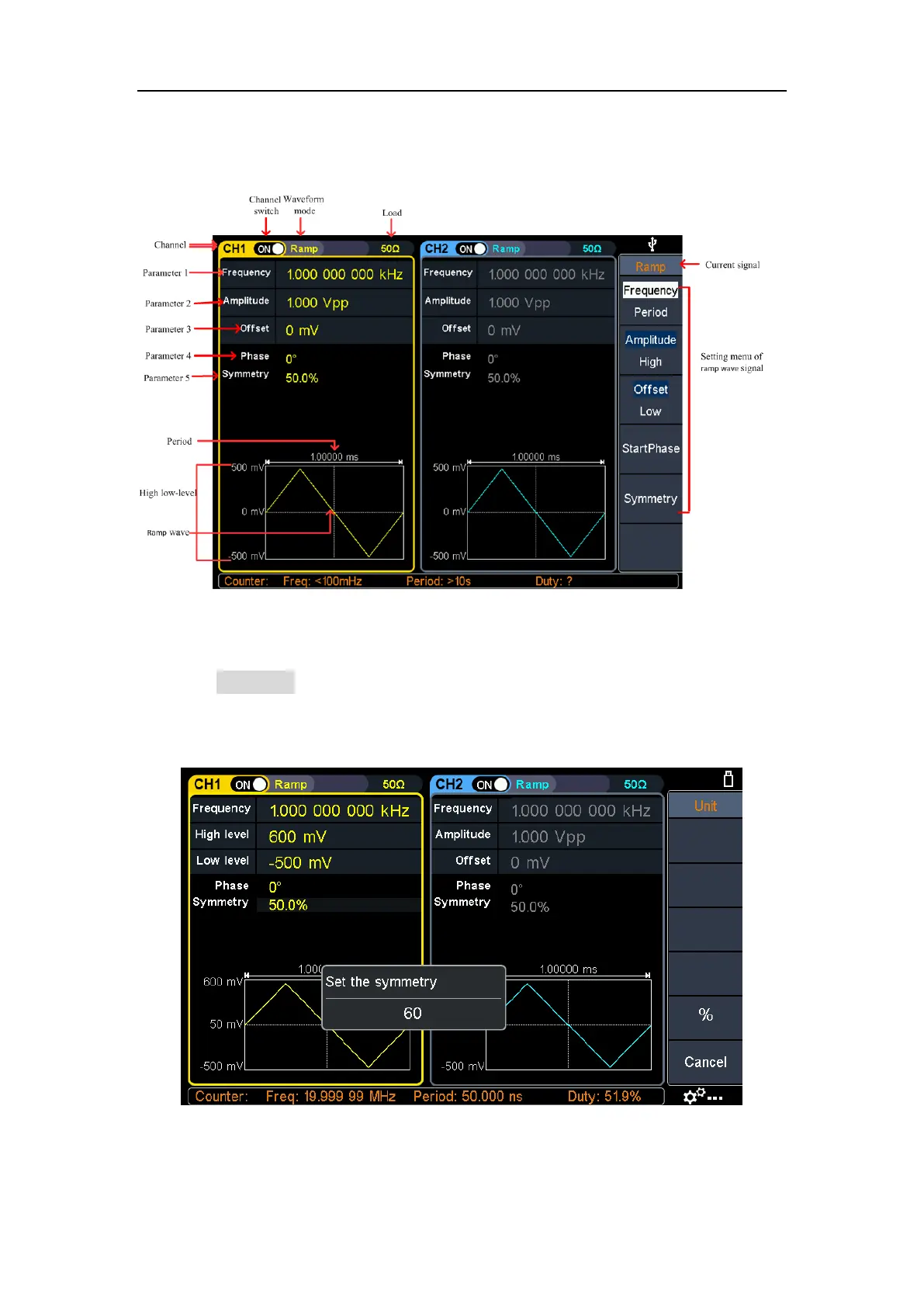

Figure 5-4: Ramp wave user interface
Set the symmetry
Press the Symmetry softkey, the Symmetry menu item is highlit. In Parameter 5 of
Figure 5-4, a blinking cursor appears in the parameter value of symmetry. Turn the
rotary control to change the value directly, or use the numeric keypad to input the
desired value and choose the unit.
Figure 5-5: Set the symmetry of ramp wave
