MP7505 Series User Manual

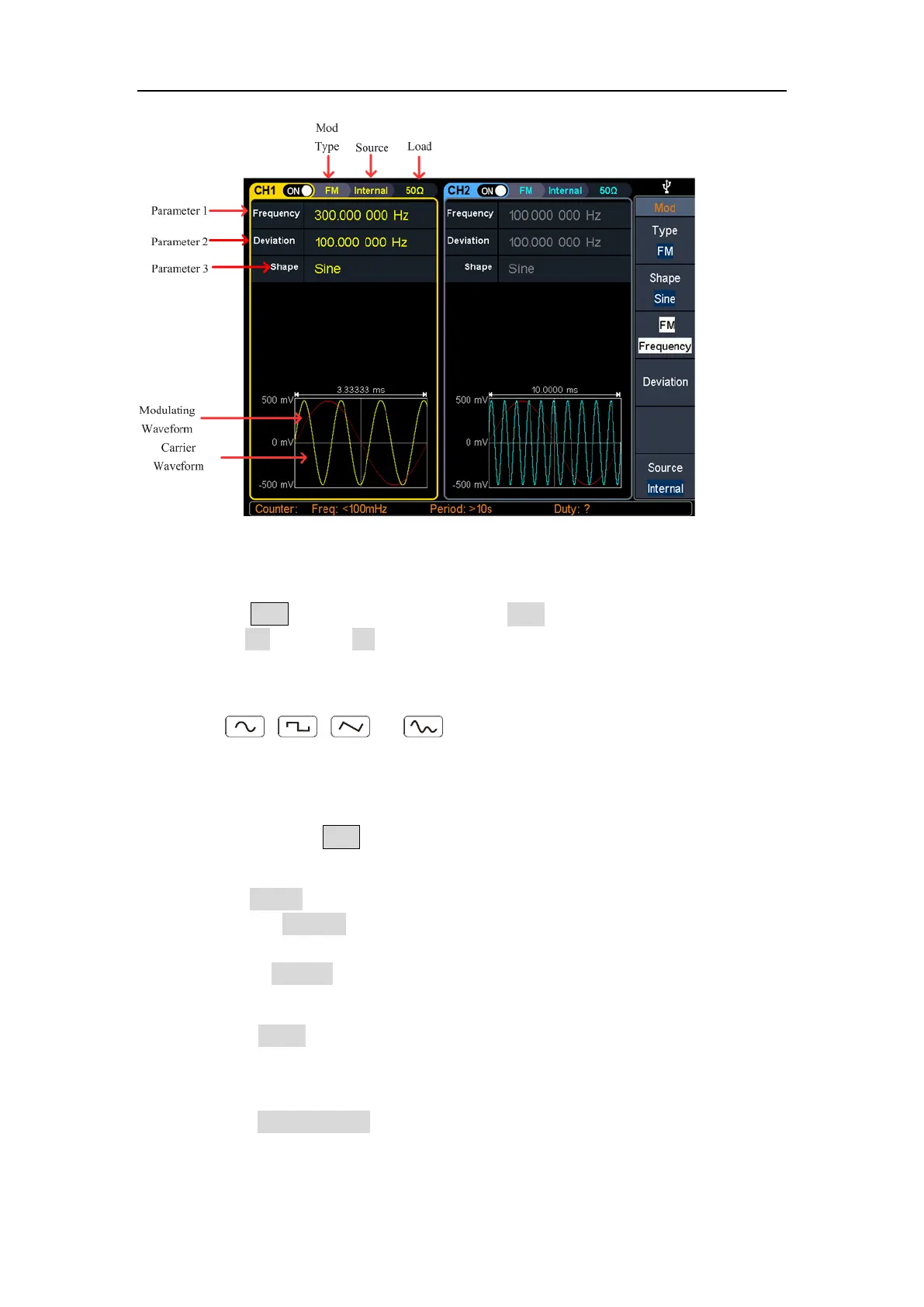

Figure 5-13: FM user interface
How to set the parameters of FM
(1) Press the Mod function key, then press the Type softkey, turn the rotary control
to select FM, press the OK softkey.
(2) Select carrier wave shape:
The carrier wave can be Sine, Square, Ramp, or Arbitrary wave (except DC).
Press , , , or to select a desired carrier wave shap.
(3) Set carrier wave parameters:
Press the wave shap key of the selected carrier wave to display the waveform
and parameters of the carrier wave. You can change the parameters of the
carrier wave. Press Mod to return to the modulation mode interface.
(4) Select modulating wave source:
Press the Source softkey to select the modulating wave source.
If you select External, use the Mod/FSK/Trig connector at the rear panel to
input the external modulating signal, then skip ahead to step (7).
If you select Internal, continue with the following steps.
(5) Select modulating wave shape:
Press the Shape softkey, then press the Sine, Square, Ramp, Noise, or Arb
softkey to select the modulating wave.
(6) Set modulating wave frequency:
Press the FM Frequency softkey to set the modulating wave frequency. The
range is 2 mHz – 1 MHz (for internal source only).
