3.4.8 Replacing HEATER RELAY Board Assy P.3-47
3.4 Replacing Board Base VJ1324E-M-02

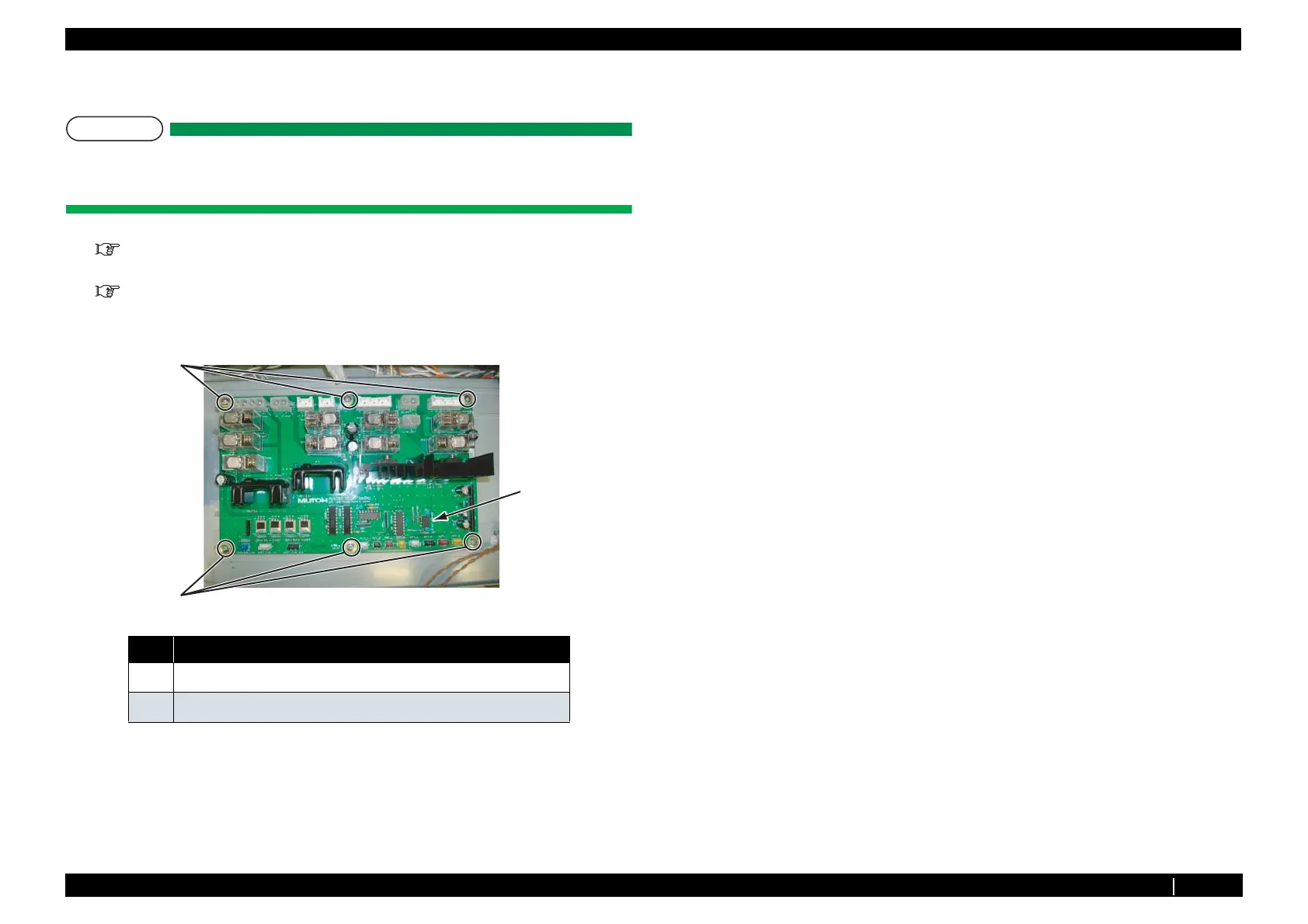

3.4.8 Replacing HEATER RELAY Board Assy
T I P
Replacing Procedure For Maintenance Part:HEATER RELAY 3 Board Assy.
This part will be referred to as the HEATER RELAY Board Assy in this manual.
1. Remove Paper Guide R2.
"3.2.7 Removing Paper Guide R2" p.3-17
2. Remove controller board bracket.
"3.4.6 Removing Controller Board Bracket" p.3-44
3.
Remove the screws (6 pieces) retaining HEATER RELAY board Assy to controller
board bracket
.
。
4. Remove HEATER RELAY Board Assy from controller board bracket.
5. Replace HEATER RELAY Board Assy.
No. Name
1
HEATER RELAY Board Assy
2
Cup screw M3 × 6
2
1
2
To Next Page
