MUTOH ValueJet VJ-1324 - Removing Side Cover L and Replacing Maintenance Cover Holder

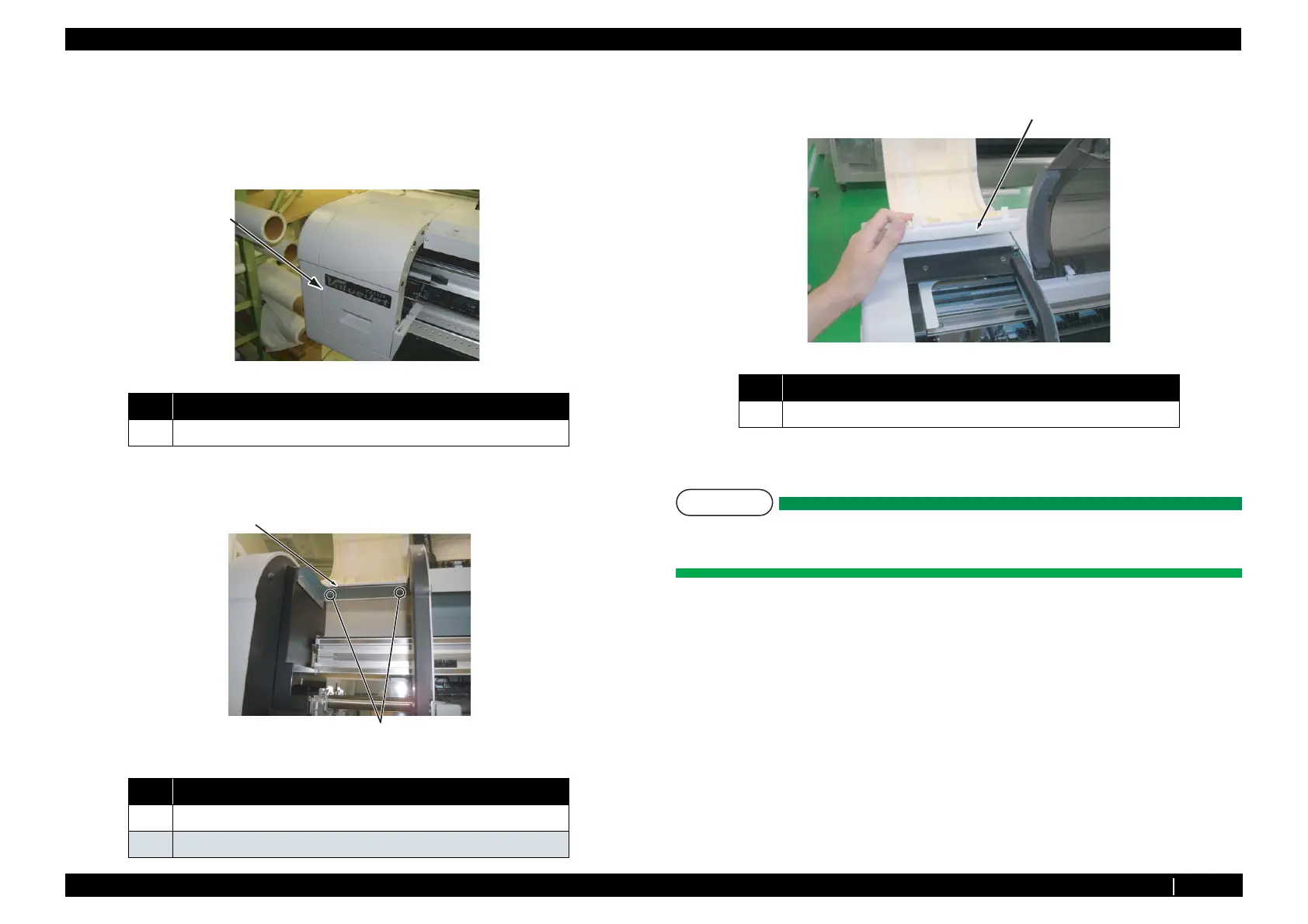

3.2.3 Removing Side Cover L and Replacing Maintenance Cover Holder P.3-11
3.2 Removing Covers VJ1324E-M-02
3.2.3 Removing Side Cover L and Replacing Maintenance
Cover Holder
1. Open Front Cover.
2. Open Maintenance Cover.
3.
Remove the screws (2 pieces) retaining Maintenance cover holder using an offset
ratchet driver.
4. Remove maintenance cover holder.
When removing side cover L only, proceed to the step 7.
5. Remove the maintenance cover from the maintenance cover holder.
NOTE
Also Removing Maintenance cover holder spacer. （Exploded View Cover Assy ： H-61)
Make sure to assemble (or replace) it.
6. Replace the maintenance cover holder.
No. Name
1 Maintenance Cover
No. Name
1
Tapping screw M4 × 12 P Tight binding
2 Maintenance cover holder
1
2
1
No. Name
1 Maintenance cover holder
1
