MUTOH ValueJet VJ-1324 - Replacing Ink Supply Section Components; Replacing Cartridge Holder Assy

3.9.1 Replacing Cartridge Holder Assy P.3-146
3.9 Replacing Ink Supply Section Components VJ1324E-M-02
3.9 Replacing Ink Supply Section Components
3.9.1 Replacing Cartridge Holder Assy
1. Perform ink drainage operation and drain ink from all the ink path.
T I P
"5.7.10 Longstore Menu" p.5-53
2. Remove I/H Cover.
"3.2.1 Removing I/H Cover" p.3-7
3. Remove Side Cover R.
"3.2.2 Remove Side Cover R" p.3-8

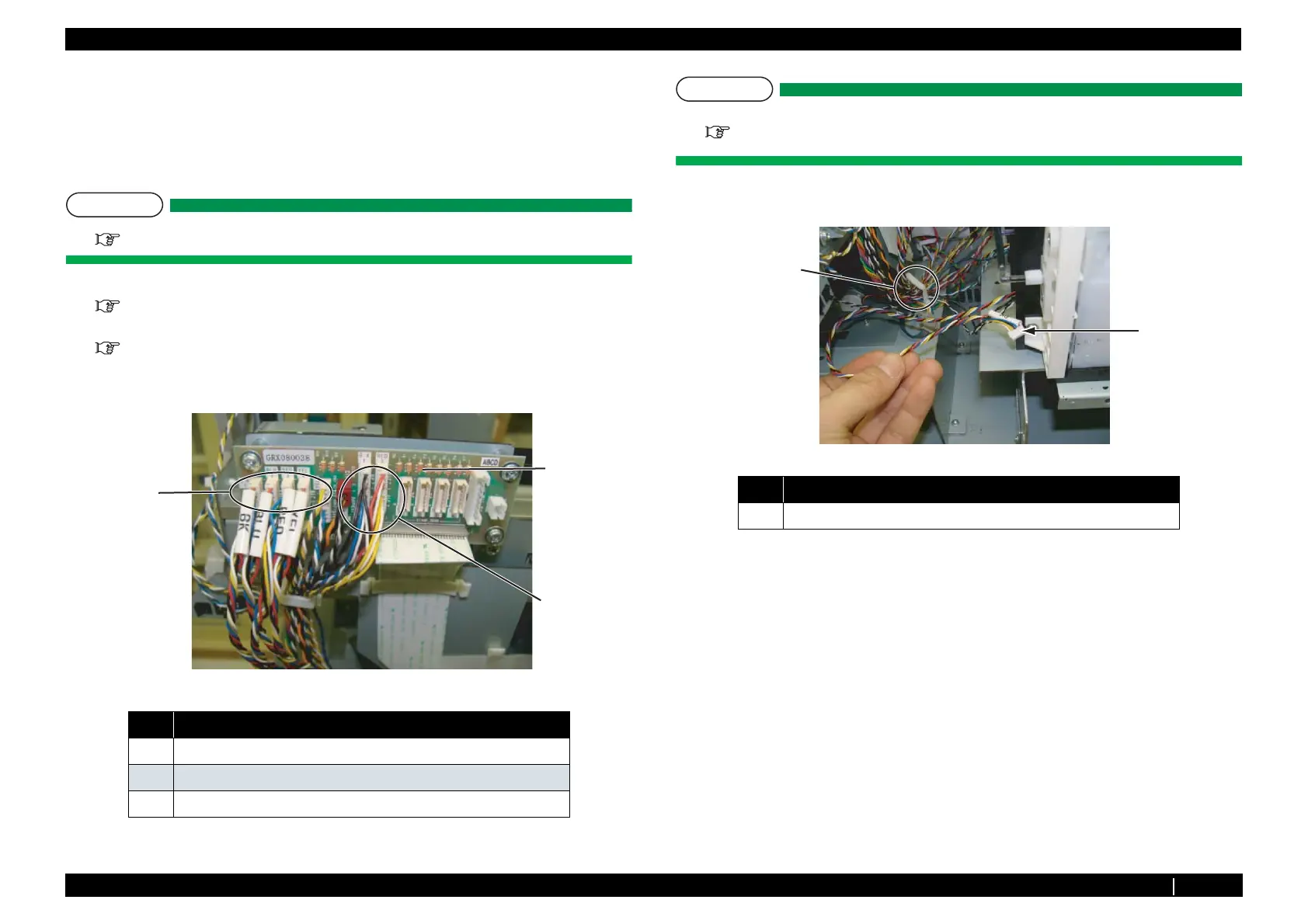

4. Remove Ink ID Cable Assy and I/C Cable Assy from Cartridge Holder Assy from JUNCTION
Board Assy.
5.
T I P
"3.4.11 Replacing JUNCTION Board Assy" p.3-51
6. Remove removed Cable from clamp s on the path.
No. Name
1 JUNCTION Board Assy
2 Ink ID Cable Assy
3 I/C Cable Assy
2
1
3
No. Name
1 Clamp
1
2
