MUTOH ValueJet VJ-1324 - Replacing Take-Up on Sensor and Take-Up off Sensor

3.13.6 Replacing Take-Up ON Sensor and Take-Up OFF Sensor P.3-176
3.13 Replacing Take-Up Unit (Option) VJ1324E-M-02
3.13.6 Replacing Take-Up ON Sensor and Take-Up OFF
Sensor

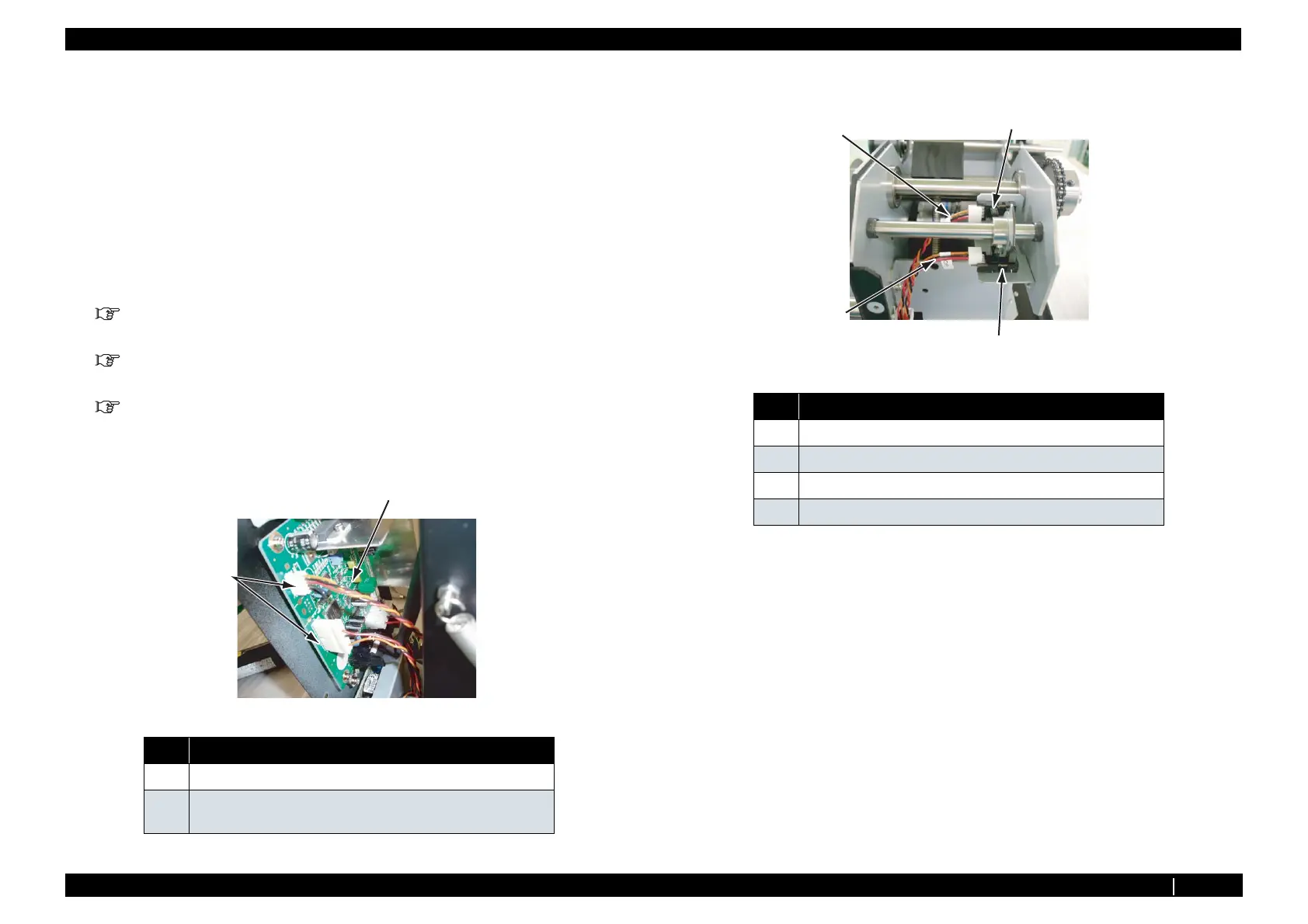

(1) Replacing Take-Up ON Sensor Relay Assy and Take-Up OFF Sensor
Relay Assy
This section describes the procedure to replace take-up ON sensor relay Assy (Maintenance number:
DG-40480, Maintenance part name: W_ON sensor Assy ) and take-up OFF sensor relay Assy
(Maintenance number: DG-40481, Maintenance part name: W_OFF sensor Assy ).
1. Remove take-up scroller.
2. Remove tension arm.
"3.13.1 Removing Tension Arm" p.3-162
3. Remove take-up unit.
"3.13.2 Removing Take-Up Unit" p.3-164
4. Remove board chassis.
"(1) Removing Board Chassis" p.3-169 of "3.13.5 Replacing Take-Up Unit Control
Board Assy" p.3-169
5. Remove cables for take-up ON sensor relay Assy and take-up OFF sensor relay
Assy from the connector to take-up control board Assy.
6. Remove take-up ON sensor relay Assy and take-up OFF sensor relay Assy from take-up ON and
OFF sensors.
7. Replace take-up ON sensor relay Assy and take-up OFF sensor relay Assy
8. To reassemble the unit, reverse the removal procedure.
No. Name
1 Take-up control board Assy
2 Cable for take-up ON sensor relay Assy and take-up OFF sensor
relay Assy
1
2
No. Name
1 Take-up ON sensor
2 Take-up OFF sensor
3 Take-up ON sensor relay Assy
4 Take-up OFF sensor relay Assy
1
4
2
3
