MUTOH ValueJet VJ-1324 - Removing Paper Guide F(Upper)

3.2.5 Removing Paper Guide F(Upper) P.3-14
3.2 Removing Covers VJ1324E-M-02
3.2.5 Removing Paper Guide F(Upper)

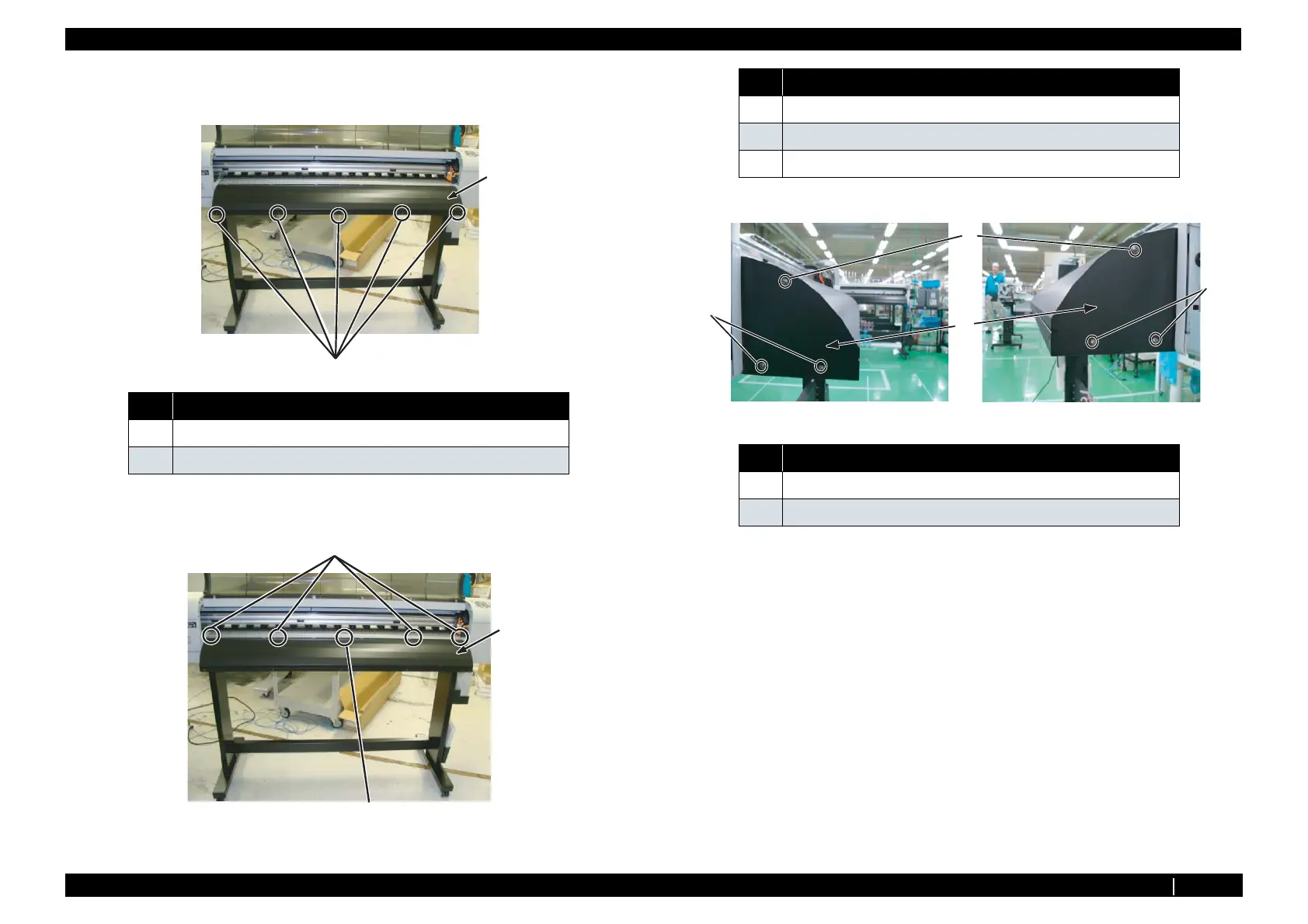

6. Remove the screws (5 pieces) retaining the front side of the paper guide F
7.
Remove the screws (5 pieces) retaining the front side of the paper guide F (Upper).
8. Remove the screws (3pieces each side) retaining the paper guide F right side covers.
No. Name
1 Paper Guide F (upper)
2
Cup screw M3 × 6 Ni-3bk
1
2
1
2
3
No. Name
1 Paper Guide F (upper)
2 Platen fixing screw NX
3
Cup screw M3 × 6Ni-3bk
No. Name
1
Paper Guide Ｆ right Cover
2
Cup screw M3 × 6
4KIJVUKFG㧔QTKIKPUKFG㧕
.GHVUKFG㧔QRRQUKVGUKFGQHQTKIKP㧕
1
2
2
2
