3.2.5 Removing Paper Guide F(Upper) P.3-15
3.2 Removing Covers VJ1324E-M-02

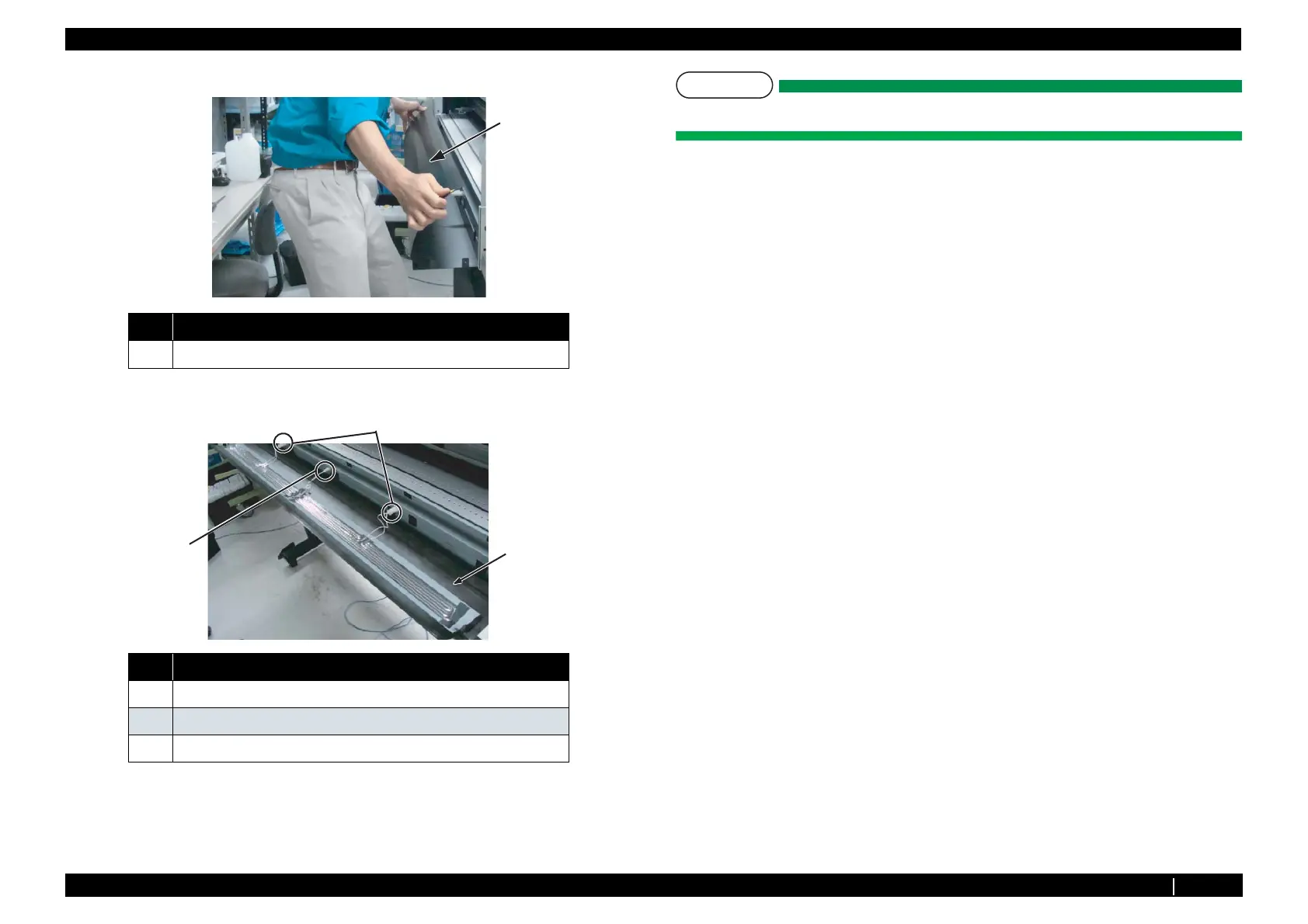

9. Remove Paper Guide F (upper).
10. Remove connectors of After Heater and the connector of After Heater Thermistor.
11. To reassemble the unit, reverse the removal procedure.
NOTE
Make sure not to tuck the cables into Front cover F (Upper), when assembling.
No. Name
1
Paper Guide Ｆ (upper)
No. Name
1
Paper Guide Ｆ (upper)
2 Connector of After Heater
3 Connector of After Heater thermistor
1
1
2
3
To Next Page
