Cylinder heads
9.612.0.006.7160 - 05/04

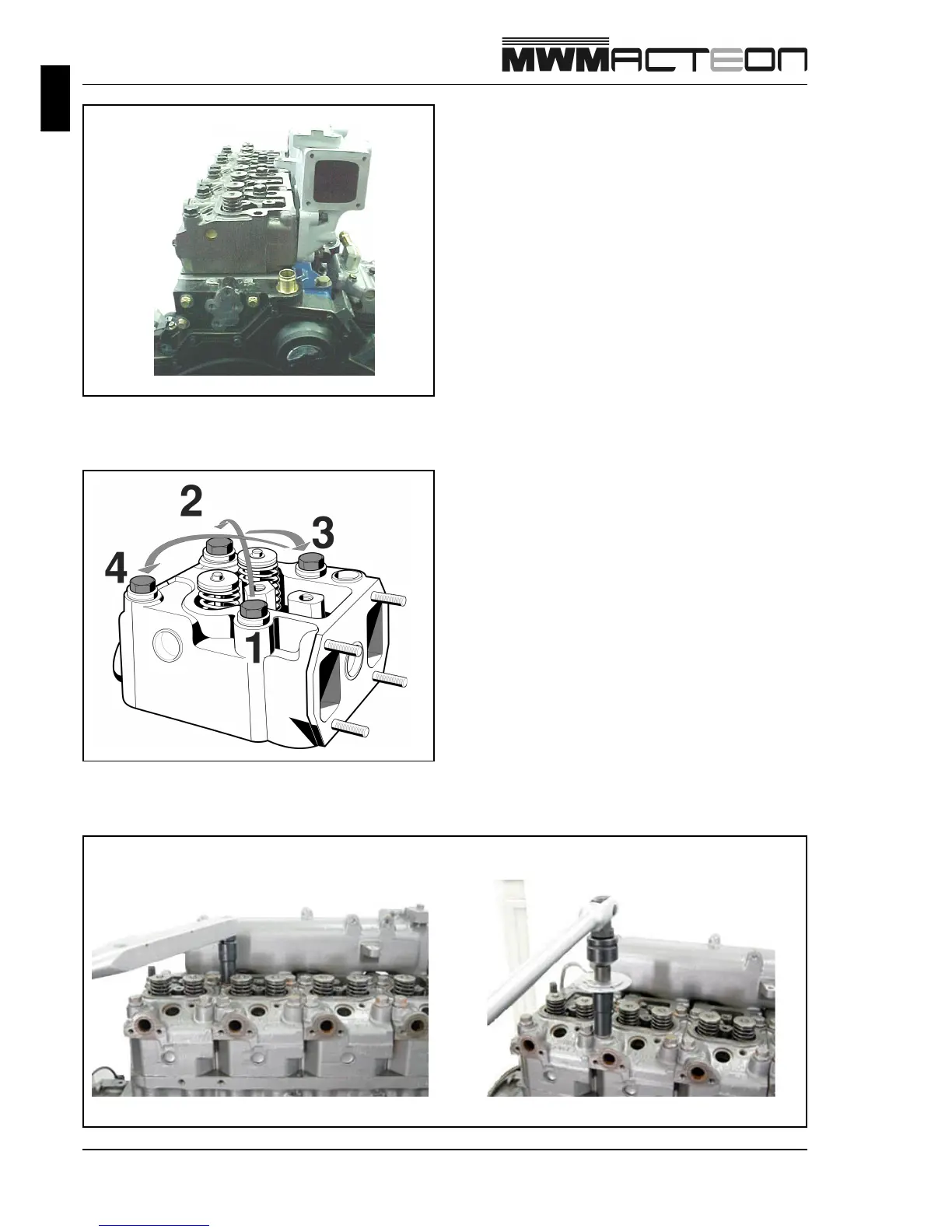

Measure cylinder heads fixation bolts length.
Discard bolts longer than 148.50 mm.
Install cylinder head fixation bolts without tighten.
Perform the alignment of the cylinder heads with the
help of the intake manifold.
Assembly intake manifold with gaskets and tighten
manifold fixation bolts according to the specification.
With the cylinder heads aligned by the intake manifold,
tighten the fixation bolts of the cylinder head crosswise
according to the sequence indicated and in 3
progressive steps according the specification.
Torque - angle:
1st) 60 + 10 Nm
2nd) 60° ± 3°
3rd) 60° ± 3°
