Fuel Injection System
9.612.0.006.7160 - 05/04

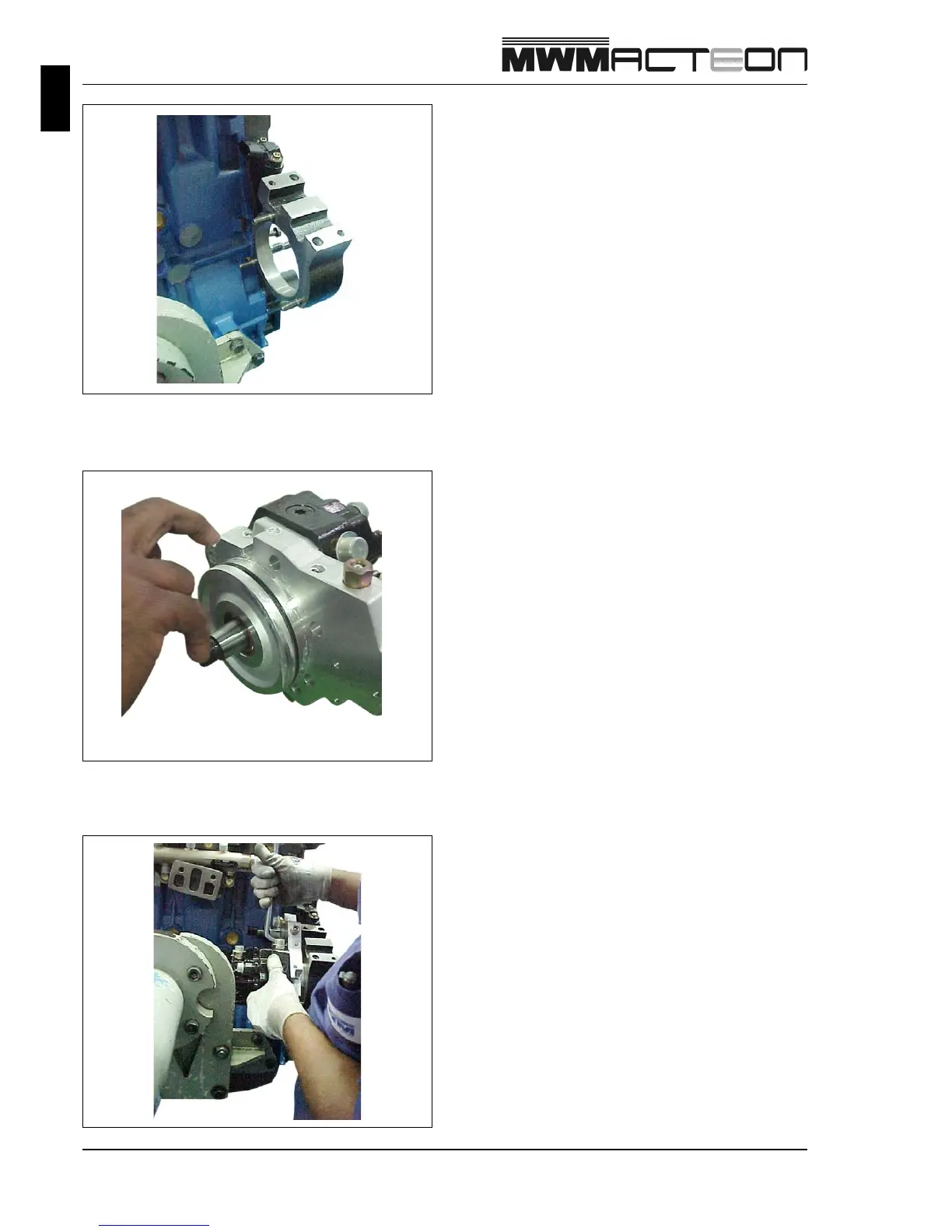

High Pressure Pump Assembly
Clean the housing of the high pressure pump.
Assembly a new o-ring on the high pressure pump.
Clean the area and put on a Vaseline layer on the
contact area of the o-ring with the housing on the
intermediary piece.
Install high pressure pump. Perform tightening with
care in order to the o-ring to do not bite the lateral of
the pump. Position the pump with the bolts until touch
on the wall of the intermediary piece and apply the
specified torque.
Check if there is a perfect seat of the pump on the
intermediary piece.
Aplicar torque de 40 ± 6 Nm.
