MWM Acteon - Specification of Guide Height and Distance to Cylinder Head Surface

8 - 6
Cylinder heads
9.612.0.006.7160 - 05/04

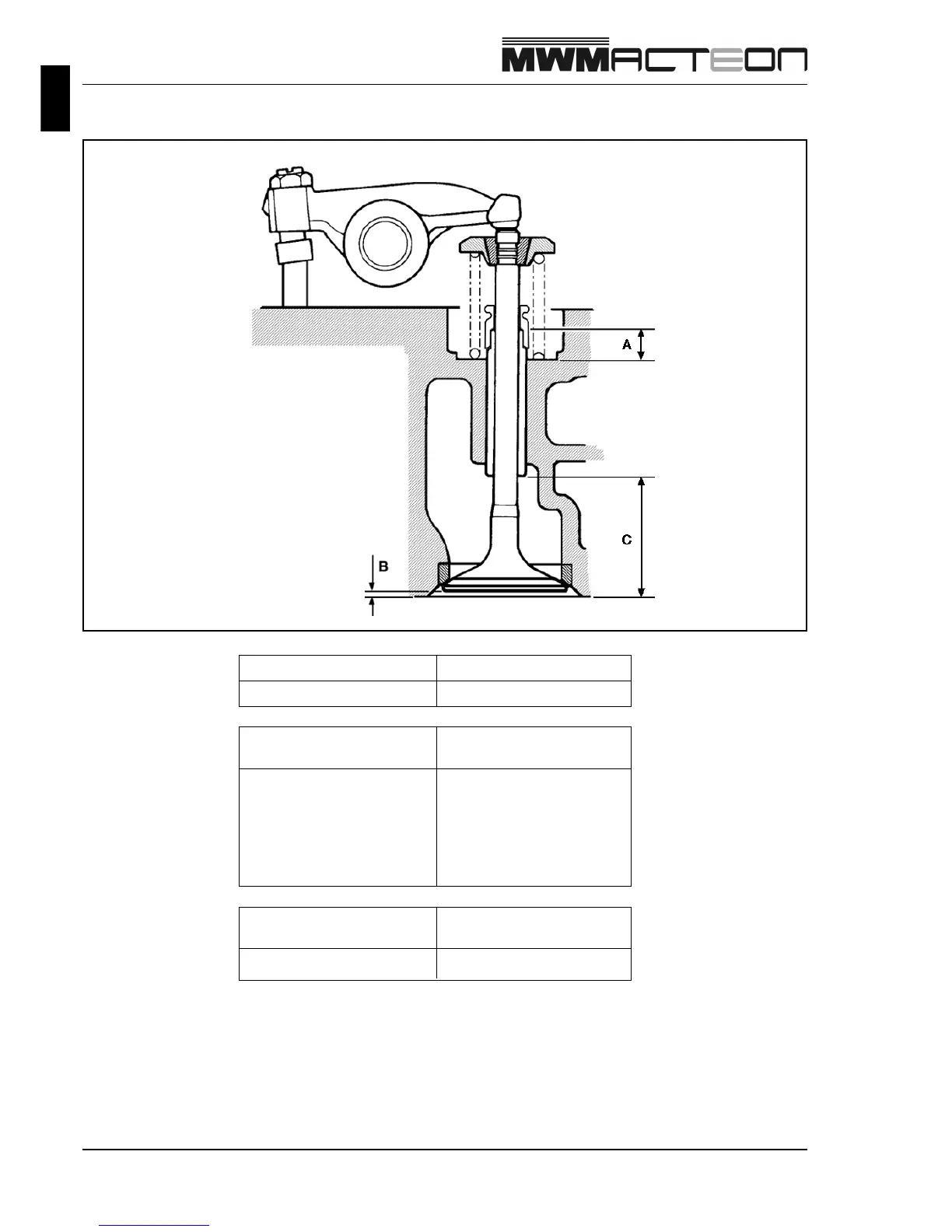

Specification of Guide Height and Distance to Cylinder Head Surface
Guide Height (A) (mm)
Intake and Exhaust 11.3 - 12.6
Distance to cylinder
head surface (B)
Nominal
Intake 0.8 - 1.1
Exhaust 1.30 - 1.60
Maximum
Intake 1.35
Exhaust 1.85
Guide height to cylinder
head face (C)
Intake and Exhaust 45.0
(mm)
(mm)
