5 - 20
Crankshaft
9.612.0.006.7160 - 05/04

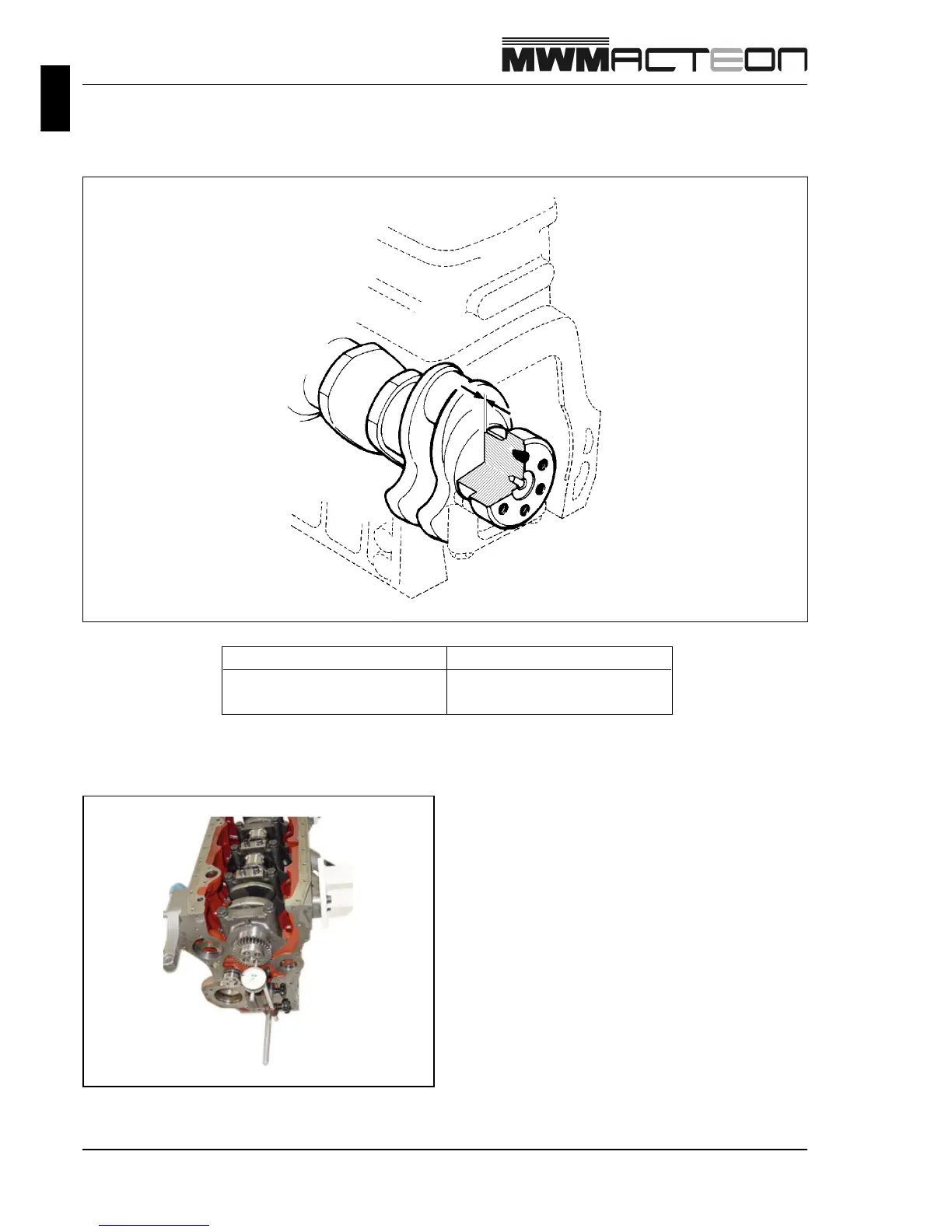

Measurements After Assembly
Axial Clearance Specification
Axial clearance (A) mm
Nominal 0.08 - 0.25
Maximum 0.4
Measure the crankshaft axial clearance.
A
