MWM Acteon - Bolts Tightening Torques Specification

14 - 10
Fuel Injection System
9.612.0.006.7160 - 05/04

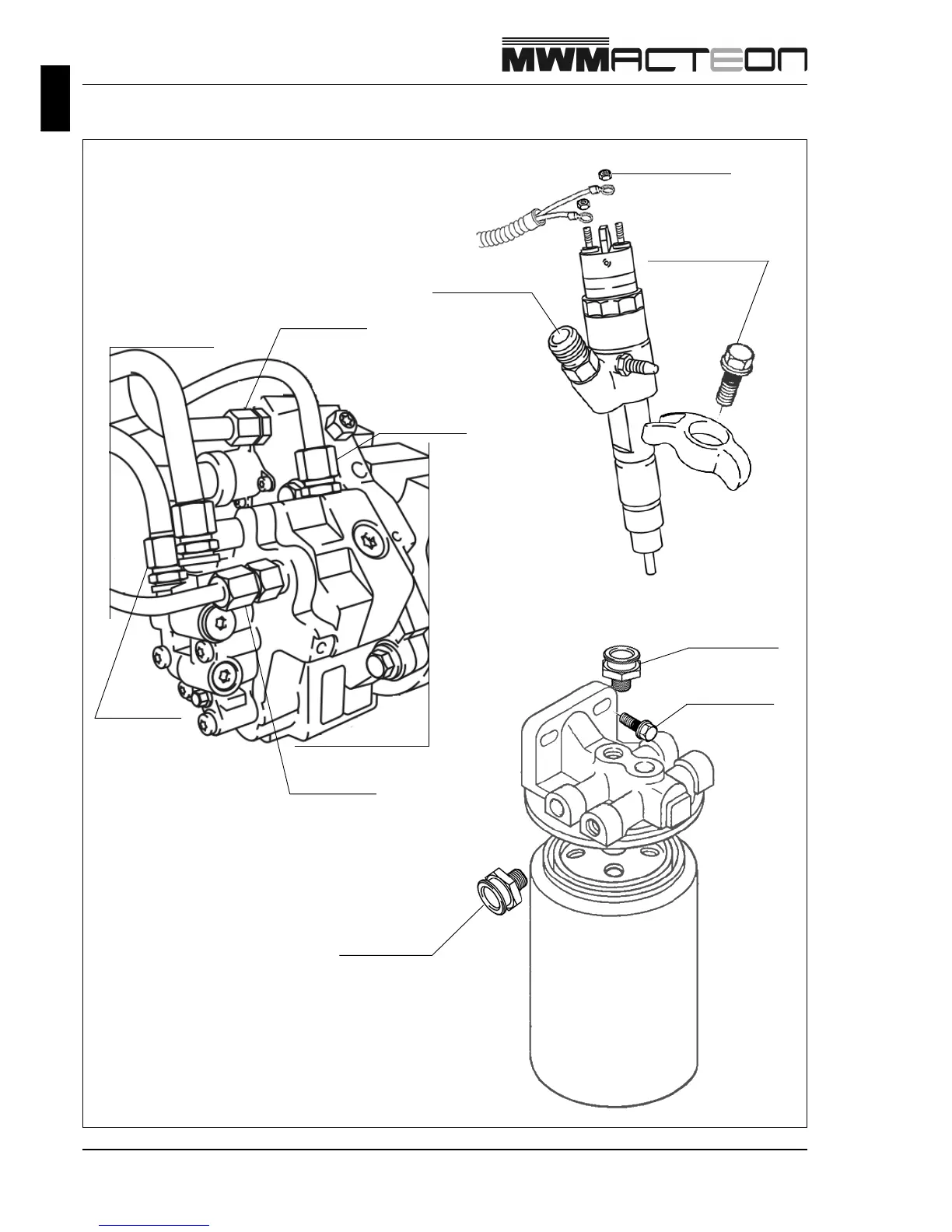

Bolts Tightening Torques Specification
1
2
3
4
5
1 - Fuel return
2 - Fuel filter/CP 3.3 Pump
3 - Cooler/CP 3.3 Pump
4 - CP 3.3 Pump/Fuel Filter
5 - CP 3.3 Pump/Rail
25 ± 2 Nm
25 ± 2 Nm
25 ± 2 Nm
25 ± 2 Nm
1st) 14 ± 1 Nm
2nd) 55° ± 2° Nm
20 + 6 Nm
20 + 6 Nm
40 ± 6 Nm
1.5 ± 0.25 Nm
25 - 3 Nm
