4 - 2
Engine Block
9.612.0.006.7160 - 05/04

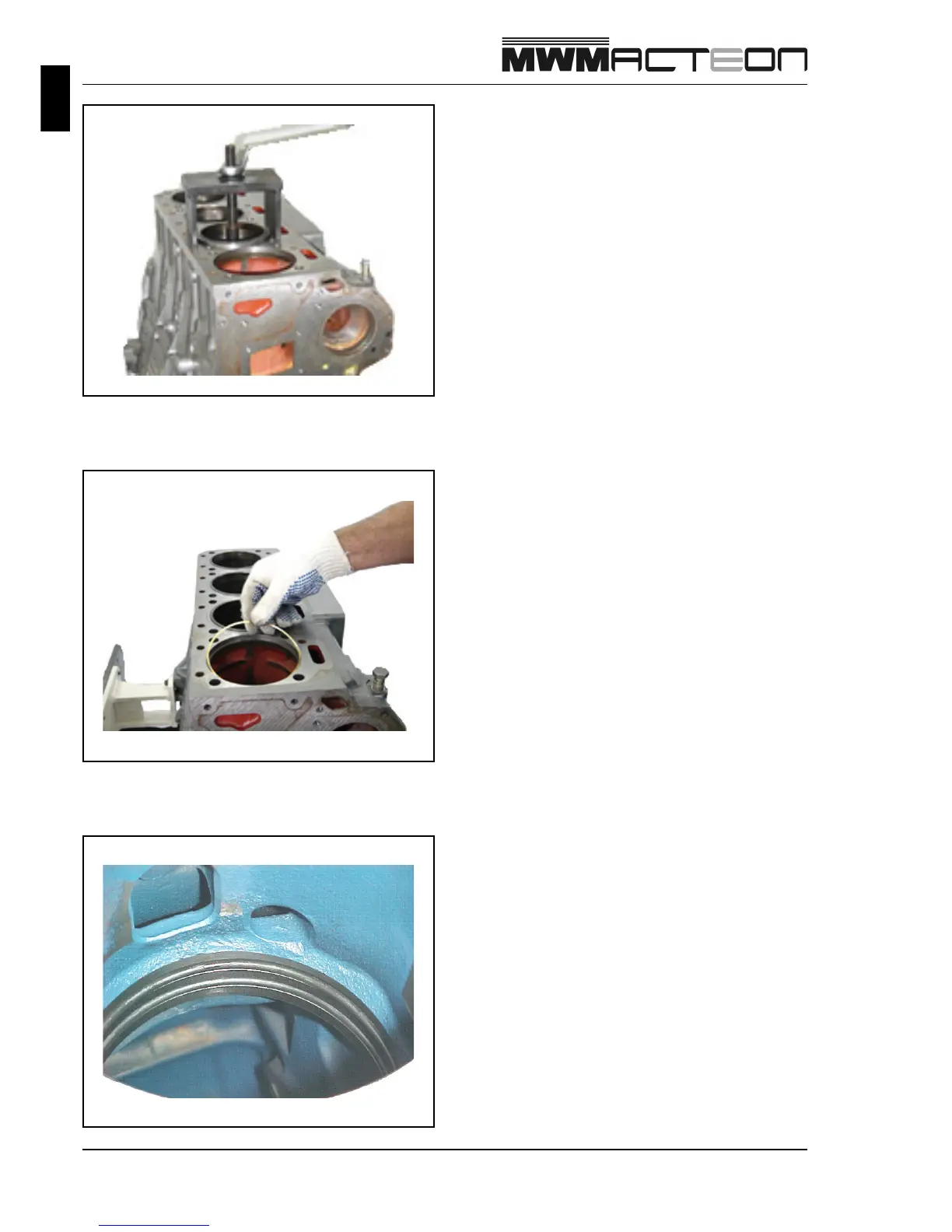

Remove Tombak rings.
Disassembly Notes
The cylinder liners removal must be made with the
special tool MWM nr. 9.610.0.690.017.6 in order to do
not damage the engine block or the liners.
The lower part of the tool must be fitted on the lower
edge of the liner.
The liner can be removed screwing the nut of the puller.
Remove liners sealing rings.
