Cylinder heads
8 - 5
9.612.0.006.7160 - 05/04

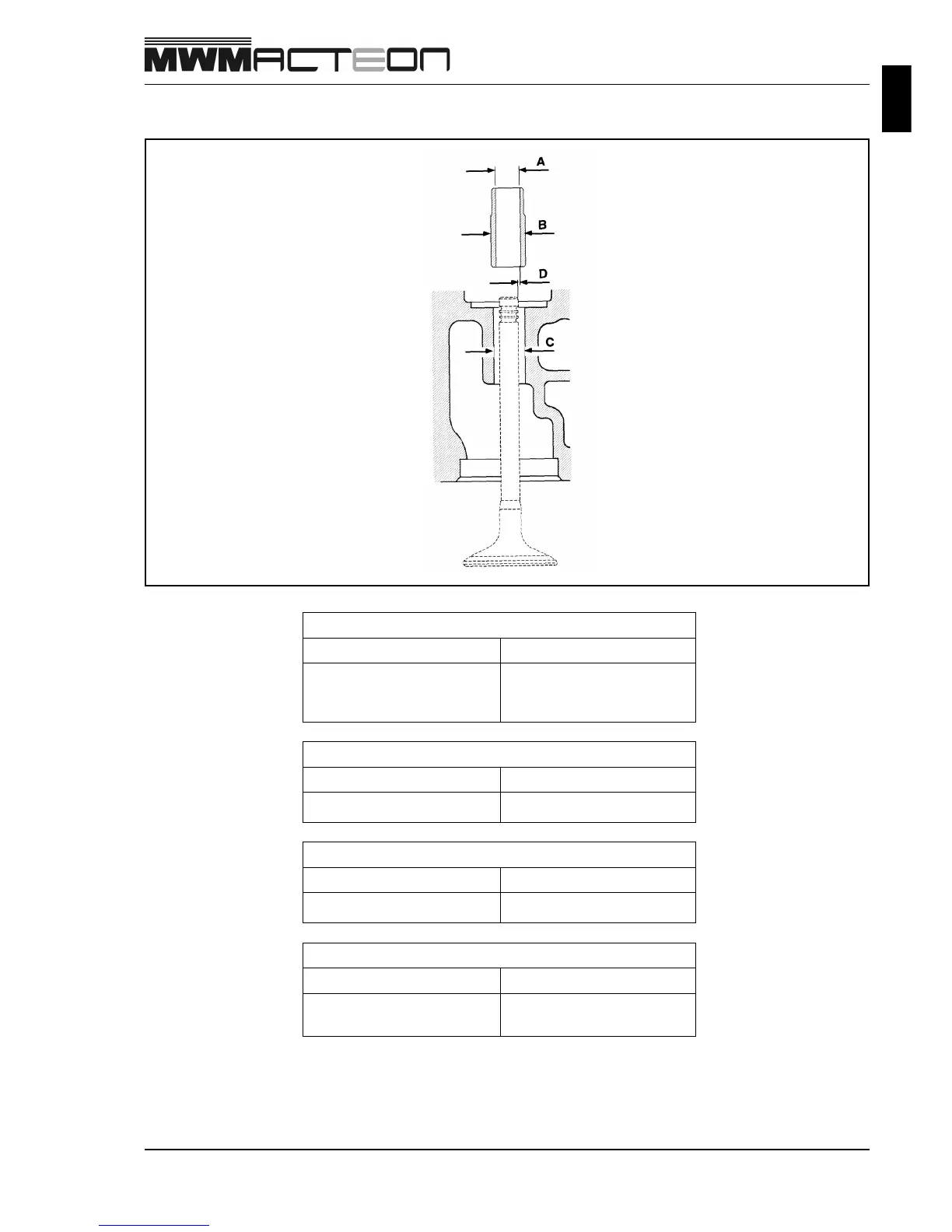

Valve Guides Specification
Ø (A)
After assembly (mm)
Nominal 9.000 - 9.022
Repair 9.013 - 9.028
Maximum 9.060
Ø (B)
Outer (mm)
Nominal 15.028 - 15.039
Ø (C)
Housing (mm)
Nominal 14.991 - 15.021
Ø (D)
Clearance at the Stem (mm)
Nominal 0.030 - 0.070
Maximum 0.111
