MWM Acteon - Pre-Assembly Inspections and Measurements; Liner Protrusion Specification

Engine Block
4 - 3
9.612.0.006.7160 - 05/04
Pre-Assembly Inspections and Measurements

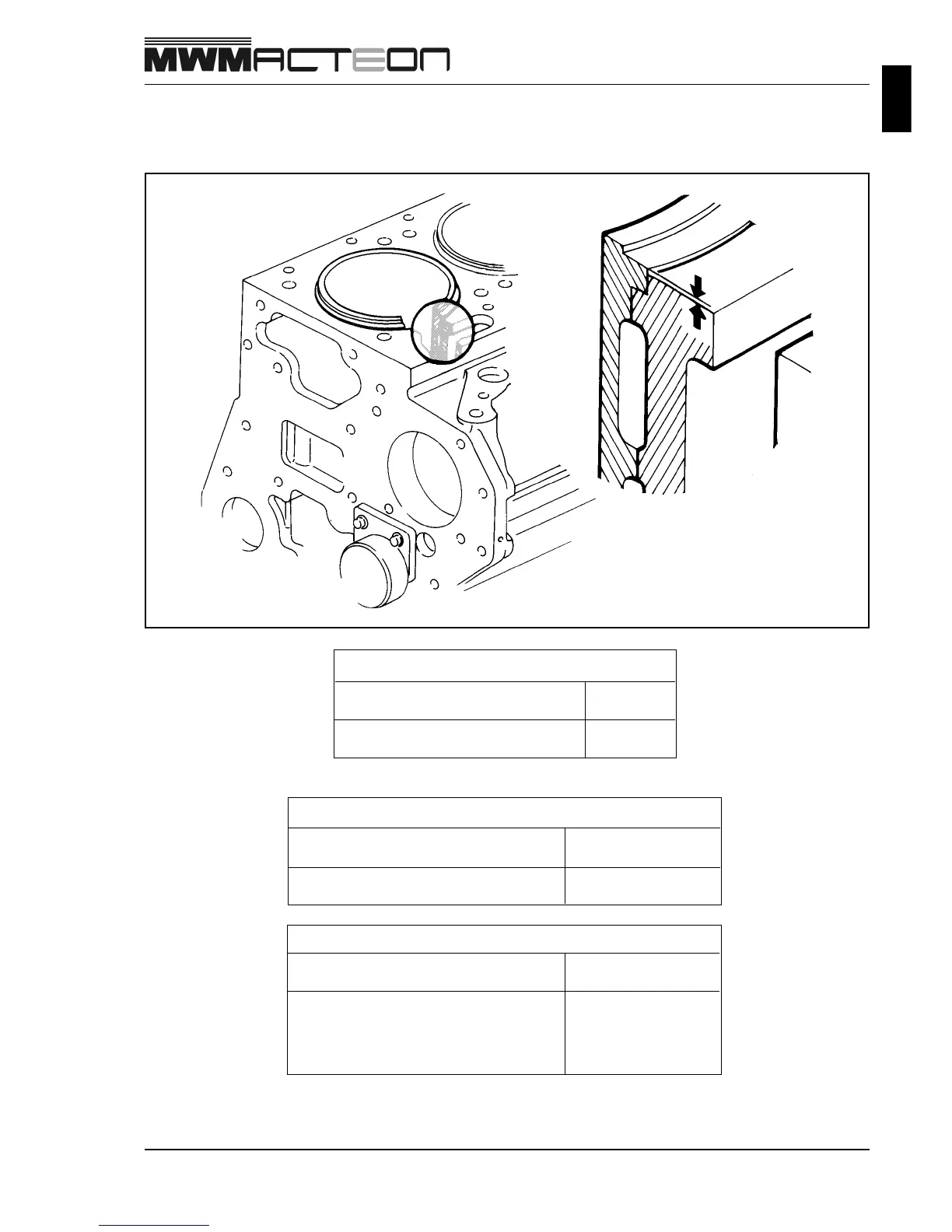

Liner Protrusion Specification
Protrusion Adjustment Shims (when necessary)
Thickness mm
9.612.8.340.004.4 0.05
9.612.8.340.005.4 0.10
9.612.8.340.006.4 0.20
9.612.8.340.007.4 0.50
Liner over Engine Block Surface
Measure mm
Protrusion *0.04 - 0.09
TOMBAK Ring
Thickness mm
9.612.0.340.002.4 0.15
*Affect emissions level
