MWM Acteon User Manual

7 - 10
Pistons and Connecting Rods
9.612.0.006.7160 - 05/04

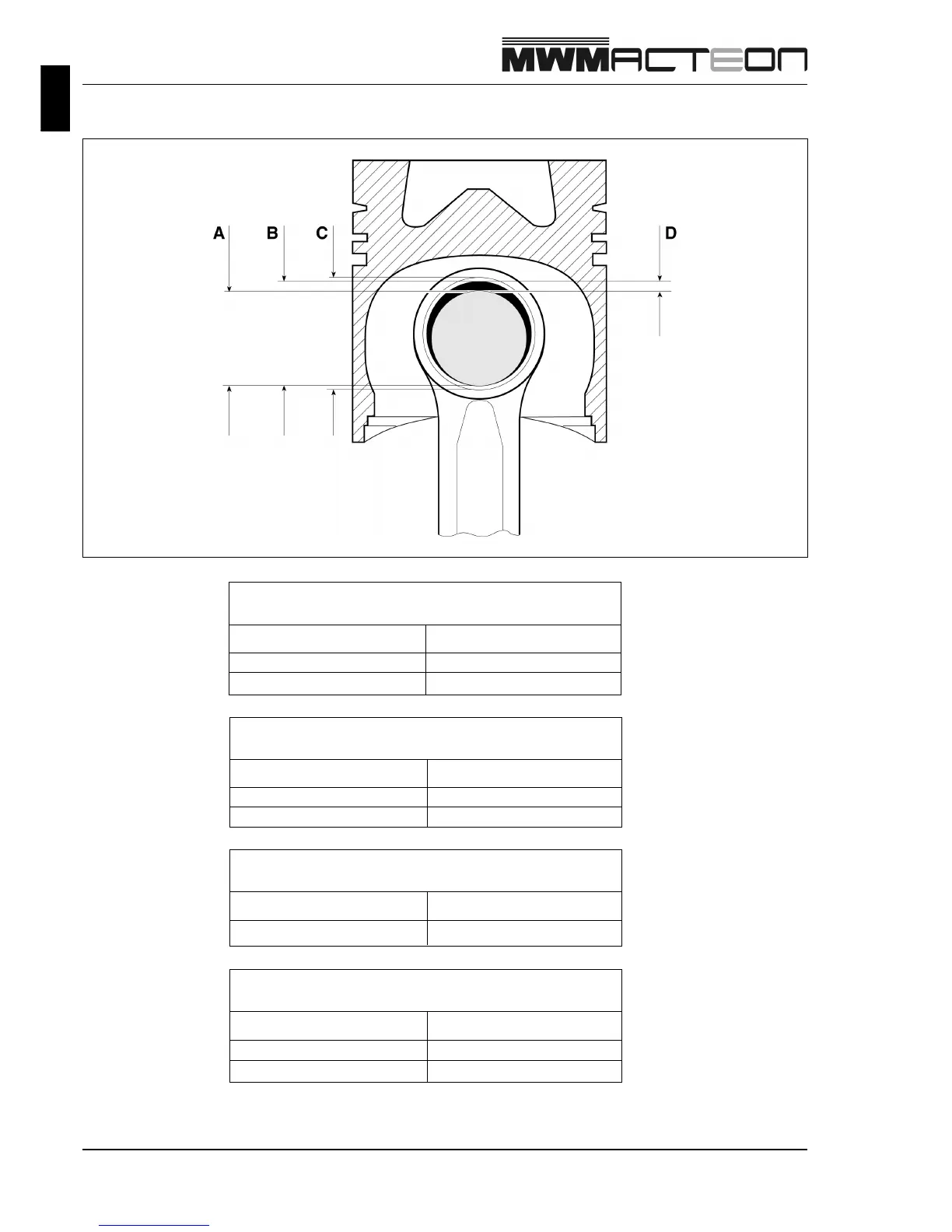

Piston and Pin
ØA
Piston Pin
Diameter (mm)
Nominal 37.994 to 38.000
Maximum 37.900
ØB
Connecting Rod Bushing (assembled)
Diameter (mm)
Nominal 38.030 to 38.080
Maximum 38.140
ØC
Connecting Rod Bushing (housing)
Diameter (mm)
Nominal 41.000 to 41.016
ØD
Piston Pin
Clearance (mm)
Nominal 0.030 to 0.086
Maximum 0.150
