14 - 8
Fuel Injection System
9.612.0.006.7160 - 05/04

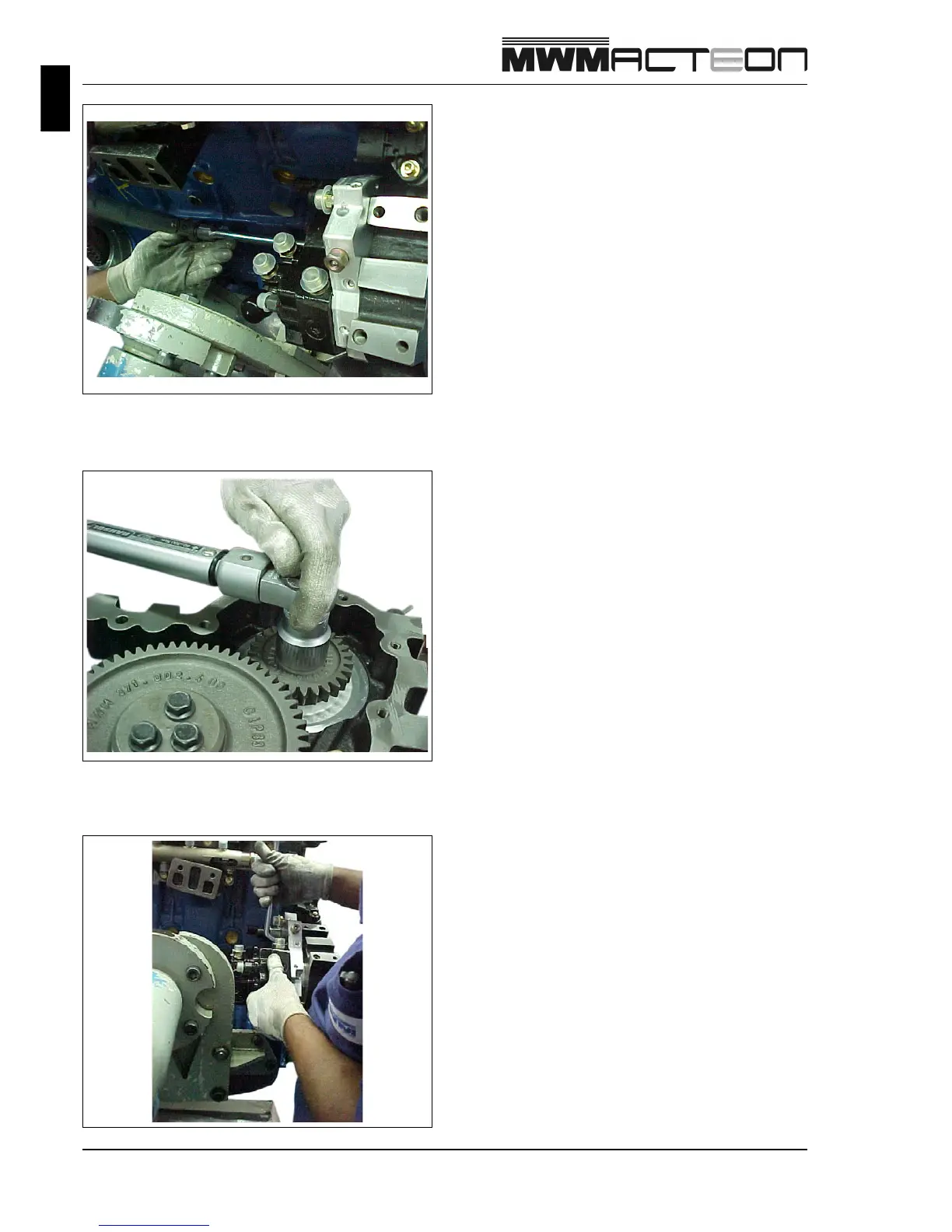

Fuel High-Pressure Pump Removal
After loosening and removing the pipes, loosen high
pressure pump fixation bolts on the intermediary piece.
Loosen and remove the fixation nut of the high
pressure pump gear by the side of the gearing cover.
Remove the gear.
After removing the gear, totally loosen the bolts and
remove the high pressure pump.
