Cylinder heads

9.612.0.006.7160 - 05/04

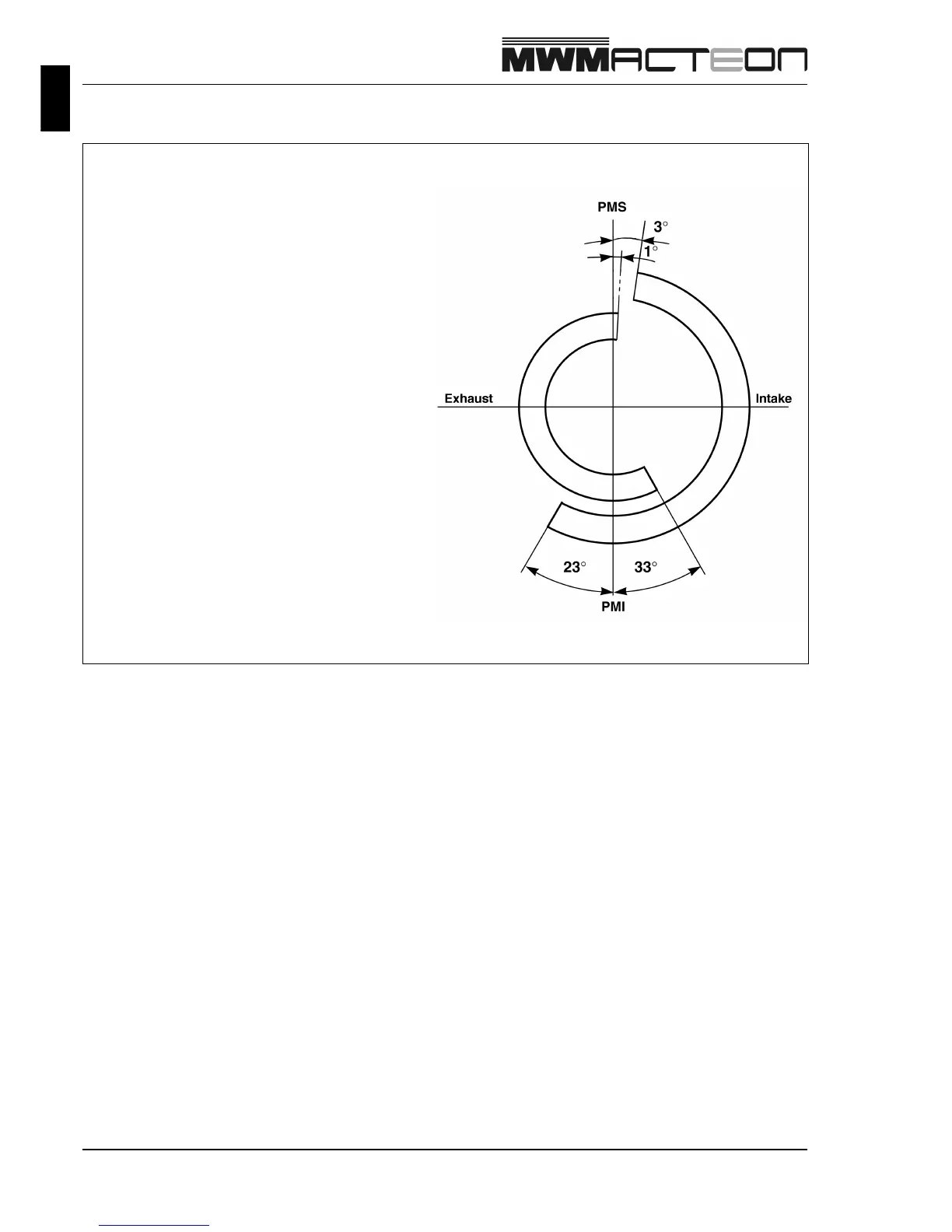

Valves Diagram

Valves clearance: 1 mm

(After the check, readjust the clearance to 0.40 mm)

Intake: Open 3° after TDC

Close 23° after PMI

Exhaust: Open 33° before PMI

Close 1° after TDC

Tolerance: ± 3°
