8 - 2
Cylinder heads
9.612.0.006.7160 - 05/04

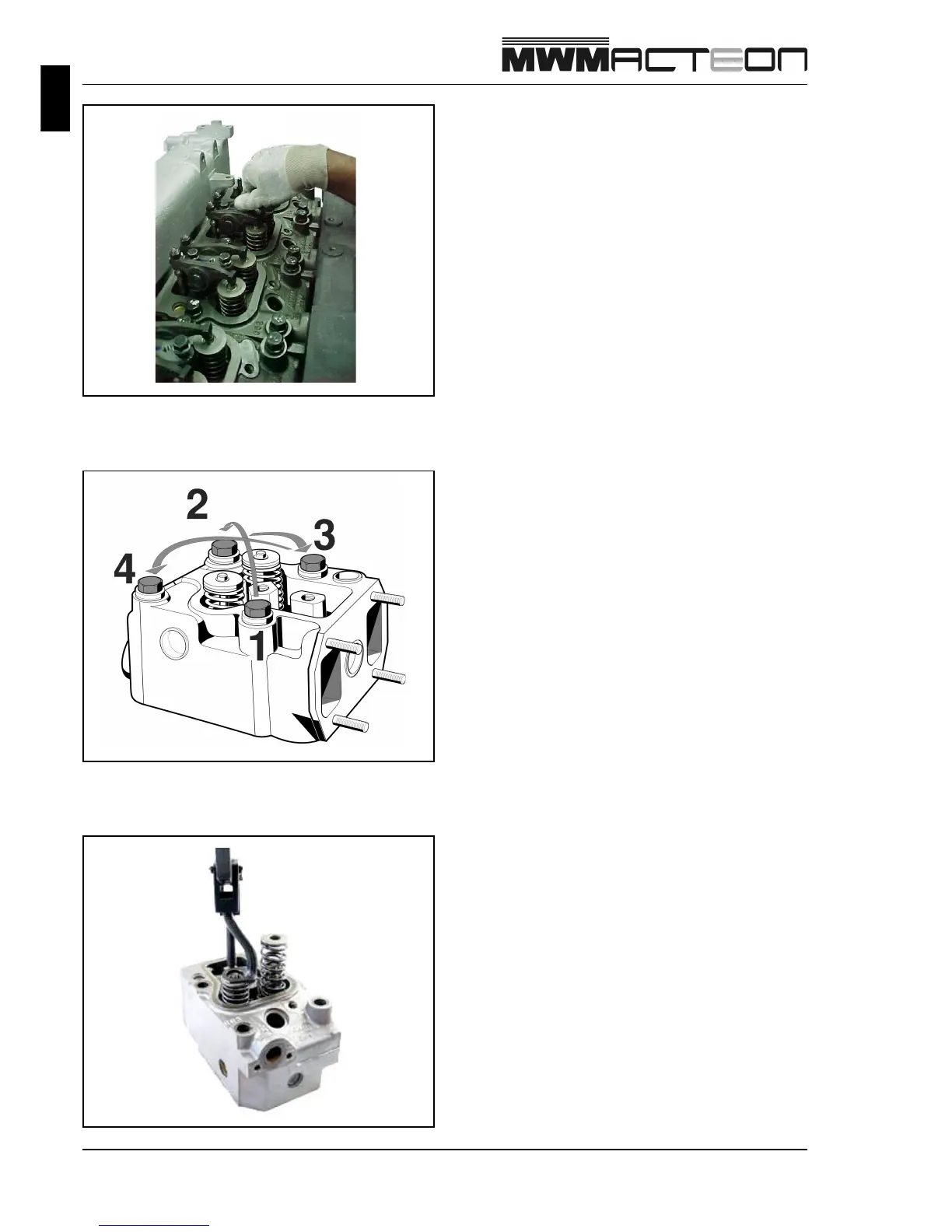

Using the special tool MWM nr. 9.407.0.690.044.6,
compress the springs and remove valve locks,
removing springs, seal and valves.
To remove valve guides and seats send them to a
specialized authorized workshop.
Loosen cylinder head fixation bolts in 3 steps and
crosswise.
With the aid of the fixation bolts, remove cylinder
heads. Remove cylinder head gaskets.
Disassembly Notes
Before loosening the cylinder head fixation bolts,
remove valves covers, rocker arms and push rods.
