Fuel Injection System
14 - 5
9.612.0.006.7160 - 05/04

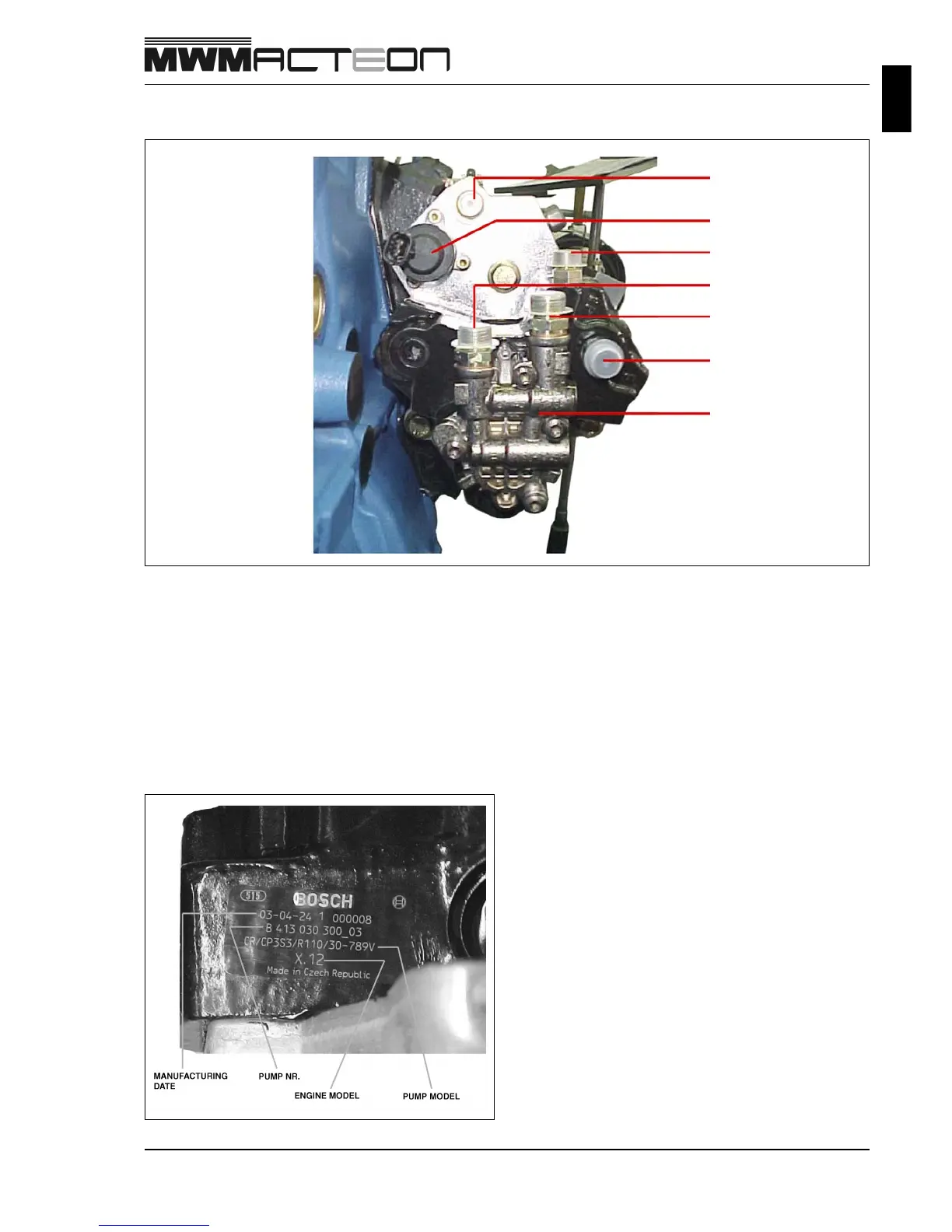

CP 3.3 Pump – Rear Part View
A
B
C
D
E
F
G
A - Filter fuel inlet
B - Rail pressure control valve (m-prop)
C - Fuel return to the tank
D - Fuel outlet to filter
E - ECM cooler fuel inlet
F - Fuel outlet to the Rail
G - Fuel lift pump
BCP 3.3 – Identification Plate
The identification plate of the high-pressure fuel pump
is important to help in the tracking of the component
and to indicate its origin.
The loss can delay or even cancel the warranty of the
product.
