6 - 2

Camshaft

9.612.0.006.7160 - 05/04

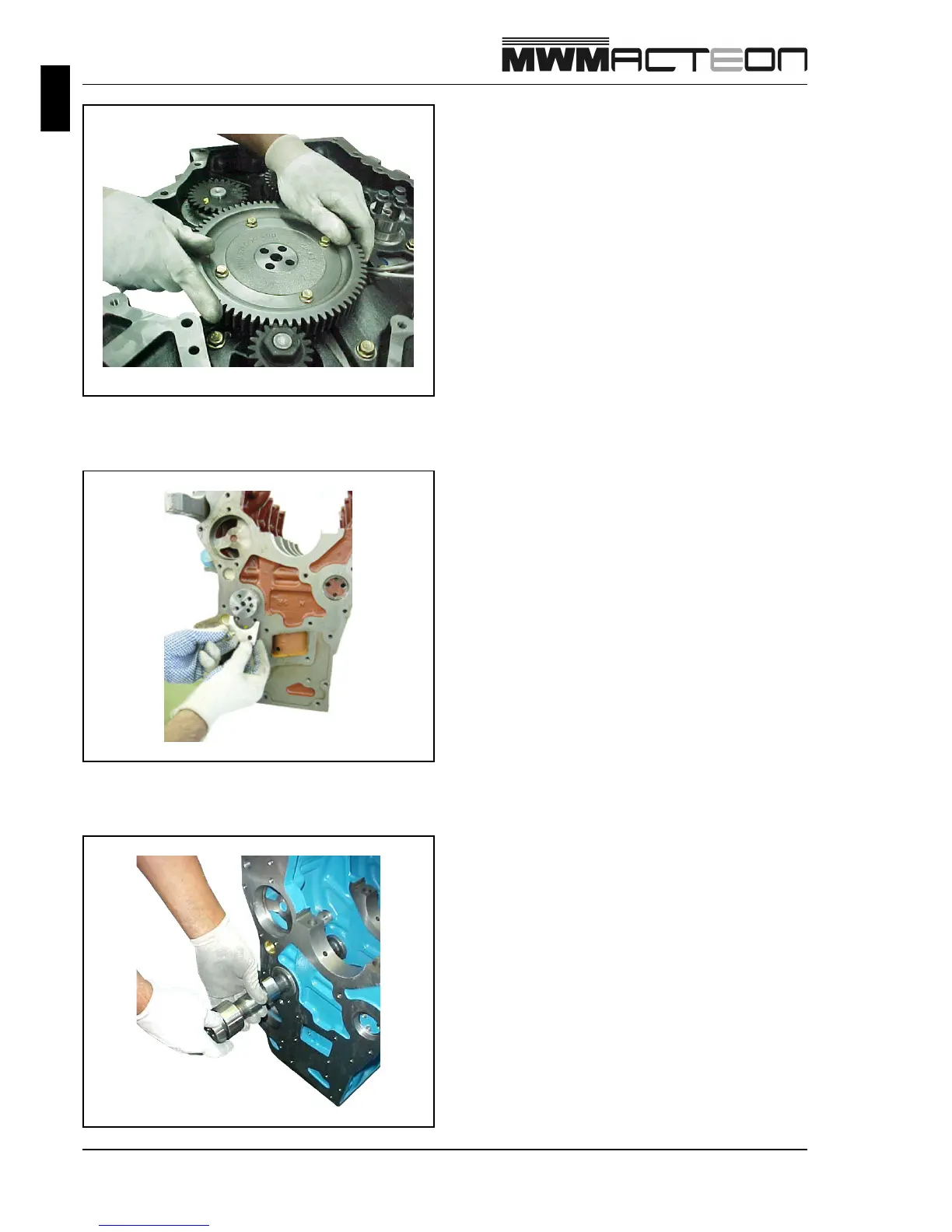

Disassembly Notes

Remove camshaft gear.

Remove camshaft lock.

Turn the engine, keeping the carter side upwards.

Remove camshaft with the hands and through the front

of the engine, making a movement of rotation. Take

care to do not damage the bearings of the shaft and

engine block. If necessary, remove the camshaft

bushing from the engine block.
