Fuel Injection System
14 - 23
9.612.0.006.7160 - 05/04

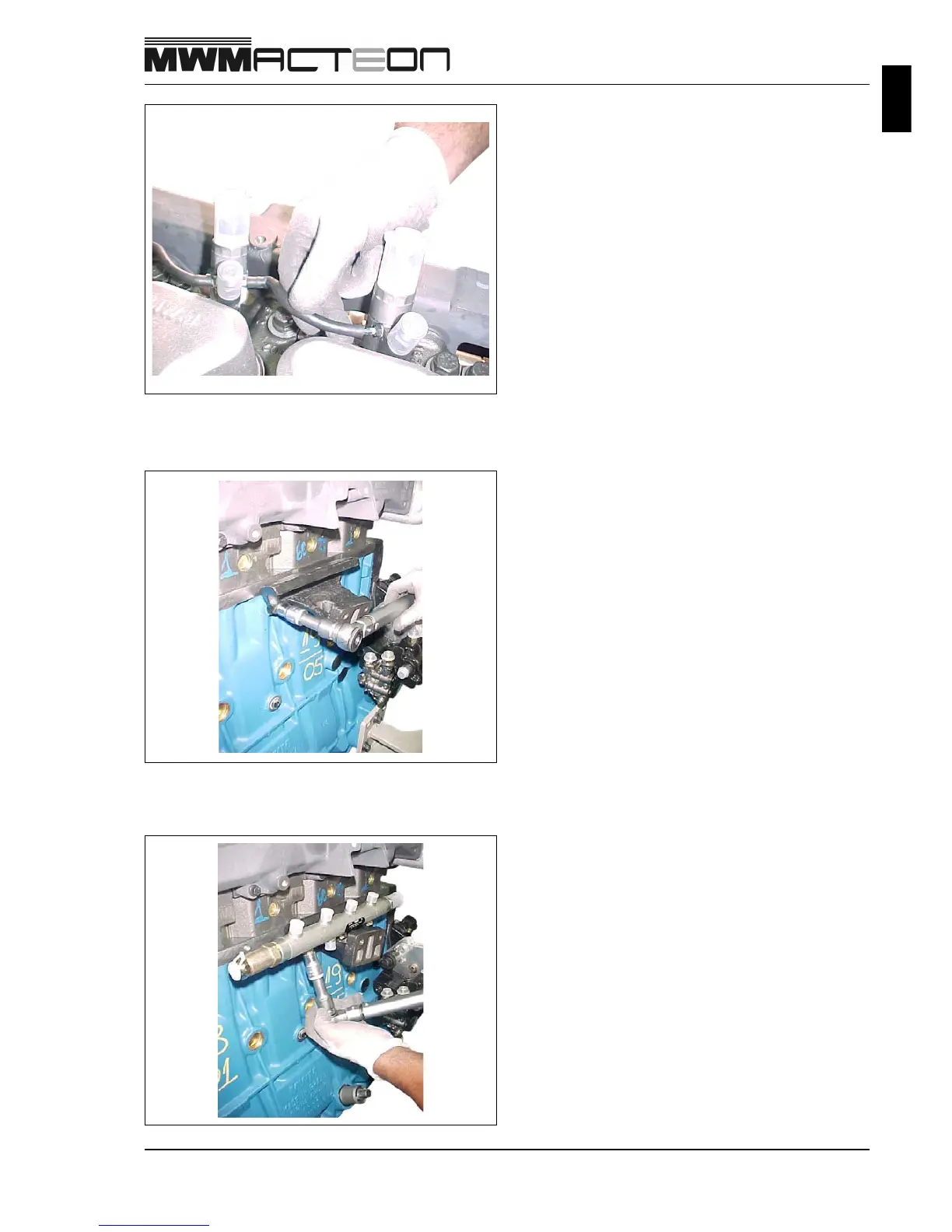

Assembly the Rail and apply the specified tightening
torque. Until the moment of the high-pressure piping
assembly, keep the nut-caps inlet and return pipe
protected
After positioning the injectors, assembly the return
pipe.
The assembly must be performed carefully in the
connector tightening sense, to avoid loosening.
If the connector loosen, apply the torque of 3 ± 0.5
Nm.
Begin to assembly the Rail. First, assembly the
bracket of the rail and apply the specified torque.
