RP0177-2000

NACE International 7

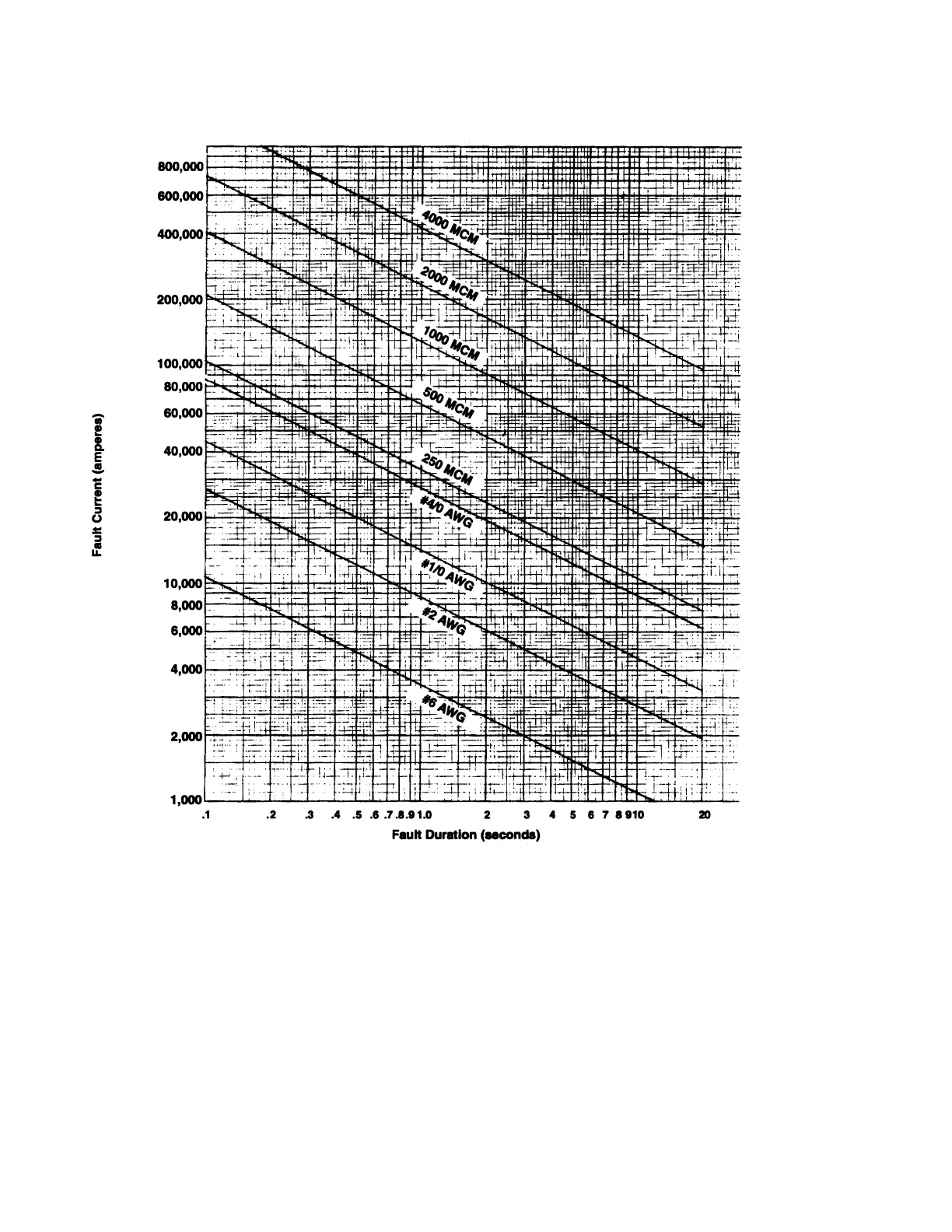

Figure 1—Approximate current required to raise the temperature of stranded annealed soft-drawn copper cable

684ºC (1,232ºF) above an ambient temperature of 20ºC (68ºF)
