Nace CP 1 - Direction of Survey Travel; Surface Potential Survey

To Next Page

To Previous Page

TM0497-2002

NACE International 23

+xxmV

-xxmV-xxmV-xxmV

+xxmV

CURRENT IN PIPE WALL

DIRECTION OF SURVEY TRAVEL

CATHODIC

AREA

ANODIC

AREA

CATHODIC

AREA

Electrolyte

Current

Electrolyte

Current

UNPROTECTED PIPELINE

v vvv

NOTE: Actual readings are usually 50 mV or less.

As the anodic condition in the center of the figure is passed (traveling left to right), the indicated

polarity switches from positive to negative. This polarity reversal indicates an anodic condition.

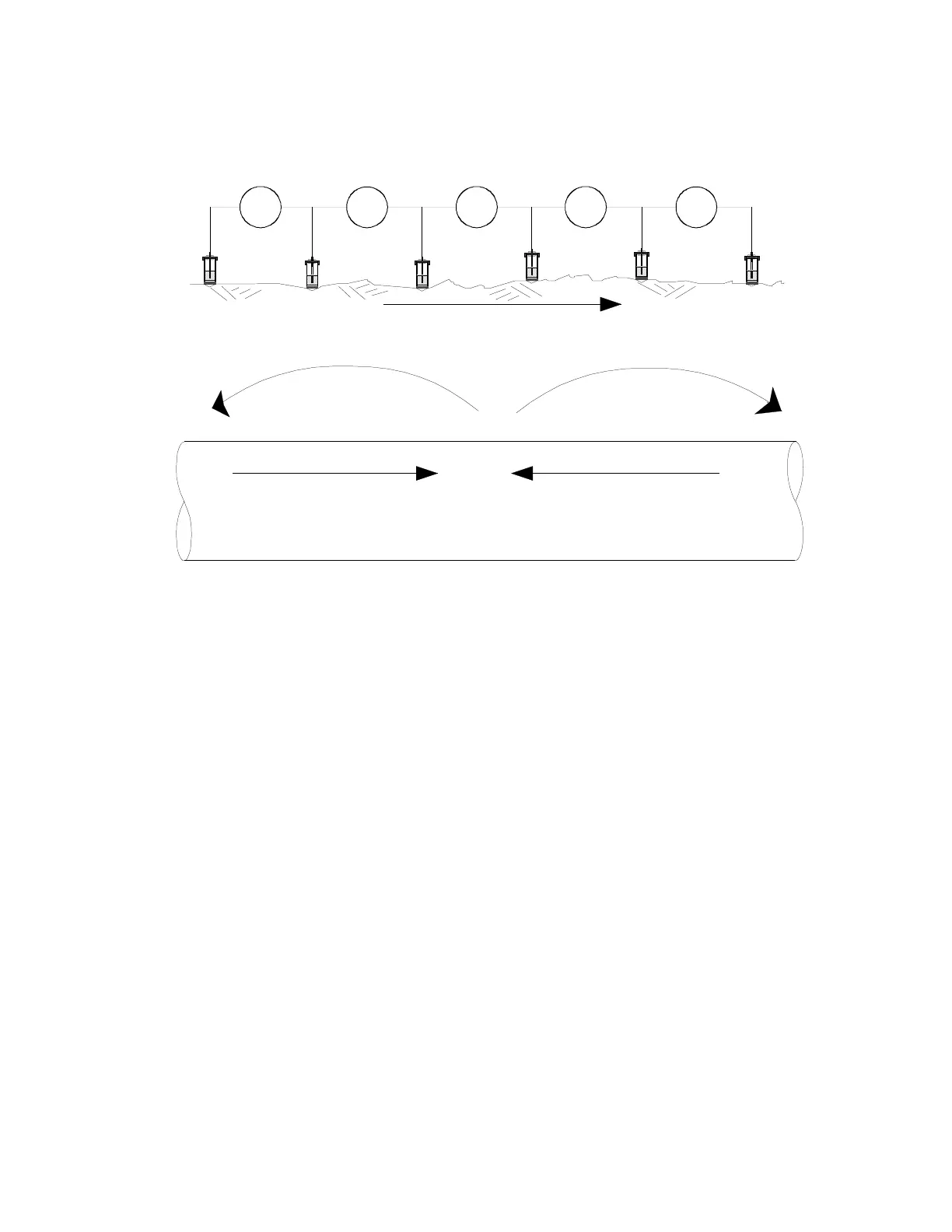

FIGURE B1

Surface Potential Survey
